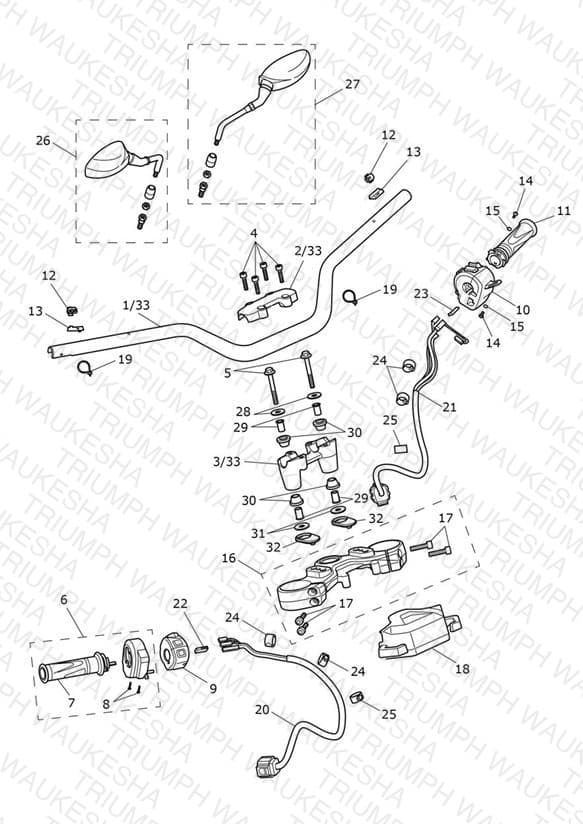

Handlebars, Top Yoke & Mirrors
Parts (34)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2046066 Handlebar, Tapered, Black | Handlebar, Tapered, Black BE7227 > All Except BR; BE6519 > BR Only | 1 | $189.95 | Available to order | 1 |
| 2 | T2045492 Clamp, Handlebar, Linked, Dia 32 | Clamp, Handlebar, Linked, Dia 32 BE7227 > All Except BR; BE6519 > BR Only | 1 | $74.24 | Available to order | 1 |
| 3 | T2045499 Riser, Linked, Dia 32, Var 2 | Riser, Linked, Dia 32, Var 2 BE7227 > All Except BR; BE6519 > BR Only | 1 | $144.91 | Backorder — Late September 2026 | 1 |
| 4 | T3050323 Screw, Cap/Hd, M8 x 30, Slv | Screw, Cap/Hd, M8 x 30, Slv | 4 | $5.05 | Available to order | 4 |
| 5 | T3200817 Bolt, HHF, M10 x 1.25 x 70, Slv | Bolt, HHF, M10 x 1.25 x 70, Slv | 2 | $4.65 | Available to order | 2 |
| 6 | T2046075 APS Sensor, Assy | APS Sensor, Assy | 1 | $256.53 | Available to order | 1 |
| 7 | T2044707 Grip, RH | Grip, RH | 1 | $27.63 | Available to order | 1 |
| 8 | T3050314 Bolt, M5 x 20 | Bolt, M5 x 20 | 2 | $7.48 | Available to order | 2 |
| 9 | T2044024 Switchcube, RH | Switchcube, RH | 1 | $284.63 | Available to order | 1 |
| 10 | T2043337 Switchcube, LH | Switchcube, LH CA, CN, US Only | 1 | $313.33 | Out of Stock | Notify Me |
| 10 | T2043604 Switchcube, LH | Switchcube, LH All Except CA, CN & US | 1 | $333.79 | Backorder — Late September 2026 | 1 |
| 11 | T2045139 Grip, Handlebar, LH | Grip, Handlebar, LH | 1 | $27.63 | Available to order | 1 |
| 12 | T2043755 Plug, Handlebar | Plug, Handlebar | 2 | $1.50 | Out of Stock | Notify Me |
| 13 | T2049701 Switchcube Mounting Block | Switchcube Mounting Block | 2 | $5.65 | Available to order | 2 |
| 14 | T3330247 Screw, S/Tap, Pan/Hd, M4 x 10, HD | Screw, S/Tap, Pan/Hd, M4 x 10, HD | 2 | $7.60 | Available to order | 2 |
| 15 | T3550500 Washer, 4.3 x 9.0 x 0.8 | Washer, 4.3 x 9.0 x 0.8 | 2 | $1.84 | Available to order | 2 |
| 16 | T2047750 Upper Yoke Assembly | Upper Yoke Assembly | 1 | $478.36 | Backorder — Late September 2026 | 1 |
| 17 | T3051097 Screw, Cap/Hd, M8 x 25, Silver | Screw, Cap/Hd, M8 x 25, Silver | 4 | $4.38 | Available to order | 4 |
| 18 | T2043282 Cover, Yoke, Keyless | Cover, Yoke, Keyless | 1 | $21.95 | Available to order | 1 |
| 19 | T3700015 Cable Tie, 185.7 Long | Cable Tie, 185.7 Long | 2 | $0.95 | Available to order | 2 |
| 20 | T2043172 Subharness, Handlebars, RH | Subharness, Handlebars, RH | 1 | $144.87 | Available to order | 1 |
| 21 | T2043166 Subharness, Handlebars, LH | Subharness, Handlebars, LH | 1 | $144.87 | Available to order | 1 |
| 22 | T2503470 Plug, 2-way | Plug, 2-way | 1 | $10.11 | Out of Stock | Notify Me |
| 23 | T2503607 Plug, 3-way | Plug, 3-way | 1 | $11.12 | Out of Stock | Notify Me |
| 24 | T3700212 Band, Rubber | Band, Rubber | 4 | $3.50 | Available to order | 4 |
| 25 | T3700259 Rubber Band, 43mm | Rubber Band, 43mm | 2 | $4.15 | Available to order | 2 |
| 26 | T2060176 Mirror Assy, RH | Mirror Assy, RH | 1 | $124.88 | Available to order | 1 |
| 27 | T2060177 Mirror Assy, LH | Mirror Assy, LH | 1 | $124.88 | Available to order | 1 |
| 28 | T3555051 Washer, 10.5 x 28 x 2 | Washer, 10.5 x 28 x 2 | 2 | $4.46 | Available to order | 2 |
| 29 | T2045065 Sleeve, Flanged, Handlebar | Sleeve, Flanged, Handlebar | 4 | $16.31 | Available to order | 4 |
| 30 | T2045489 Rubber Bush, Handlebar, 90 | Rubber Bush, Handlebar, 90 | 4 | $3.93 | Available to order | 4 |
| 31 | T3555030 Washer, 10.5 x 30 x 2.5 | Washer, 10.5 x 30 x 2.5 | 2 | $7.08 | Available to order | 2 |
| 32 | T2045494 Trim, Yoke Riser, Mldg | Trim, Yoke Riser, Mldg | 2 | $7.74 | Available to order | 2 |
| 33 | T2045497 Kit, Handlebar, Var 2 | Kit, Handlebar, Var 2 > BE7226 All Except BR & > BE6518 BR Only | 1 | $393.14 | Available to order | 1 |
