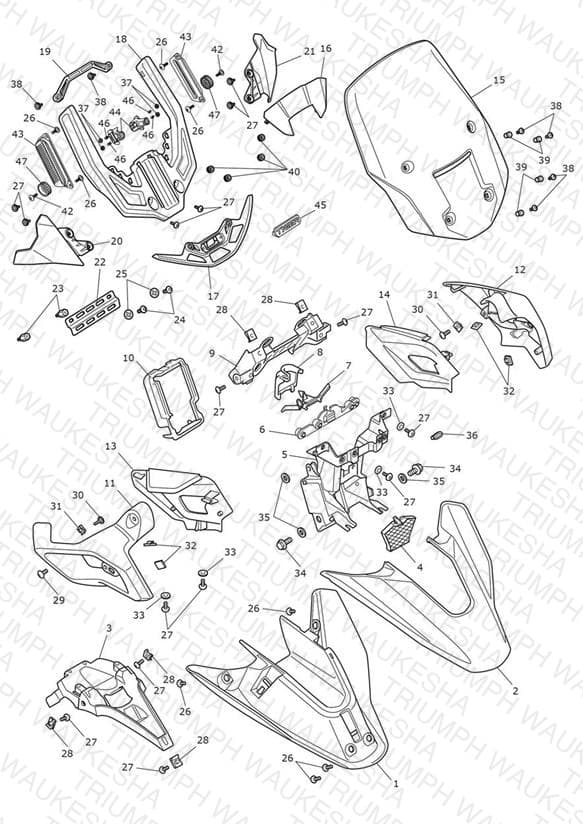

Cockpit, Subframe & Screen
Parts (50)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2310079 High Mudguard, Lower, Mldg | High Mudguard, Lower, Mldg | 1 | $53.59 | Available to order | 1 |
| 2 | T2315075-JF High Mudguard, Lucerne Blue | High Mudguard, Lucerne Blue | 1 | $336.75 | Available to order | 1 |
| 2 | T2315075-NM High Mudguard, Snowdonia White | High Mudguard, Snowdonia White | 1 | $336.75 | Backorder — Late August 2026 | 1 |
| 2 | T2315075-PM High Mudguard, Sapphire Black | High Mudguard, Sapphire Black | 1 | $336.75 | Available to order | 1 |
| 3 | T2315100 Support Mldg, Upper Mudguard | Support Mldg, Upper Mudguard | 1 | $43.67 | Available to order | 1 |
| 4 | T2315076 Grille, Front, Mldg | Grille, Front, Mldg | 4 | $11.75 | Available to order | 4 |
| 5 | T2311277 Front Subframe | Front Subframe | 1 | $385.68 | Available to order | 1 |
| 6 | T2311120 Retainer Plate | Retainer Plate | 1 | $24.32 | Available to order | 1 |
| 7 | T2310359 Subframe Protector, Mldg | Subframe Protector, Mldg | 1 | $26.45 | Available to order | 1 |
| 8 | T2315066 Subframe Infill, Mldg | Subframe Infill, Mldg | 1 | $11.41 | Available to order | 1 |
| 9 | T2315065 Support, Instrument, Mldg | Support, Instrument, Mldg | 1 | $102.64 | Available to order | 1 |
| 10 | T2310524 Transition Piece | Transition Piece | 1 | $12.11 | Available to order | 1 |
| 11 | T2311428-LS Cockpit, Finish, Pntd, Spares, RH, Graphite | Cockpit, Finish, Pntd, Spares, RH, Graphite Includes 2 x item 32 | 1 | $129.00 | Available to order | 1 |
| 12 | T2311429-LS Cockpit, Finish, Pntd, Spares, LH, Graphite | Cockpit, Finish, Pntd, Spares, LH, Graphite Includes 2 x item 32 | 1 | $129.00 | Available to order | 1 |
| 13 | T2310252 Cockpit Infill, Mldg, RH | Cockpit Infill, Mldg, RH | 1 | $24.46 | Available to order | 1 |
| 14 | T2310251 Cockpit Infill, Mldg, LH | Cockpit Infill, Mldg, LH | 1 | $24.46 | Available to order | 1 |
| 15 | T2312227 Screen, Moulding | Screen, Moulding All Markets Except CA, US & ZA | 1 | $221.99 | Available to order | 1 |
| 15 | T2311330 Screen, Moulding, Coated | Screen, Moulding, Coated CA, US & ZA Only | 1 | $469.07 | Available to order | 1 |
| 16 | T2315998 Cowl, Instruments, 7" | Cowl, Instruments, 7" | 1 | $12.82 | Available to order | 1 |
| 17 | T2310869 Central Runner, Mldg | Central Runner, Mldg | 1 | $15.63 | Available to order | 1 |
| 18 | T2311923 Screen Support Assembly | Screen Support Assembly | 1 | $197.72 | Available to order | 1 |
| 19 | T2310839 Handle, Mldg | Handle, Mldg | 1 | $38.81 | Available to order | 1 |
| 20 | T2315074 Screen, Secondary, RHS | Screen, Secondary, RHS | 1 | $20.05 | Available to order | 1 |
| 21 | T2315073 Screen, Secondary, LHS | Screen, Secondary, LHS | 1 | $20.05 | Available to order | 1 |
| 22 | T2310223 Bracket, Front Number Plate | Bracket, Front Number Plate ID Only | 1 | $37.43 | Available to order | 1 |
| 22 | T2310718 Bracket, Front Number Plate | Bracket, Front Number Plate IN Only | 1 | $37.43 | Available to order | 1 |
| 23 | T2304694 Threaded Spacer, M5 | Threaded Spacer, M5 IN & ID Only | 2 | $24.61 | Available to order | 2 |
| 24 | T3330941 Screw, But/Hd, Skt, M5 x 16, Slv | Screw, But/Hd, Skt, M5 x 16, Slv IN & ID Only | 2 | $6.73 | Available to order | 2 |
| 25 | T3551139 Washer, Retaining, 3.18 x 9.50, Slv | Washer, Retaining, 3.18 x 9.50, Slv | 2 | $2.85 | Available to order | 2 |
| 26 | T3331436 Screw, S/Tap, Pan, Torx, 4 x 11, PT | Screw, S/Tap, Pan, Torx, 4 x 11, PT | 8 | $0.75 | Available to order | 8 |
| 27 | T3330943 Screw, But/Hd, M5 x 14, Slv | Screw, But/Hd, M5 x 14, Slv | 13 | $4.92 | Available to order | 13 |
| 28 | T3350123 Nut, Captive, M5, Non-Secured | Nut, Captive, M5, Non-Secured | 5 | $2.48 | Available to order | 5 |
| 29 | T3200092 Bolt, RHHF, M8 x 30, Slv, Enc | Bolt, RHHF, M8 x 30, Slv, Enc | 1 | $2.48 | Available to order | 1 |
| 30 | T3331062 Bolt, But/Hd, M5 x 16, Shld, Slv | Bolt, But/Hd, M5 x 16, Shld, Slv | 2 | $6.94 | Available to order | 2 |
| 31 | T3350129 Nut, Captive, M5 | Nut, Captive, M5 | 2 | $3.39 | Available to order | 2 |
| 32 | T3450345 Clip, Wire, Self Adhesive | Clip, Wire, Self Adhesive | 4 | $4.19 | Available to order | 4 |
| 33 | T3550317 Washer, Tufnol, 5.25 x 15 x 1 | Washer, Tufnol, 5.25 x 15 x 1 | 4 | $7.27 | Available to order | 4 |
| 34 | T3205469 Bolt, HHF, Lghtd, M8 x 20, Enc | Bolt, HHF, Lghtd, M8 x 20, Enc | 2 | $4.92 | Available to order | 2 |
| 35 | T3550406 Washer, Plastic, 8.25 x 19 x 3.5 | Washer, Plastic, 8.25 x 19 x 3.5 | 3 | $14.32 | Available to order | 3 |
| 36 | T2204745 Grommet, Secondary Cvr Brkt | Grommet, Secondary Cvr Brkt | 1 | $2.63 | Available to order | 1 |
| 37 | T2081675 Detent Ball | Detent Ball | 4 | $1.91 | Available to order | 4 |
| 38 | T3331065 Bolt, But/Hd, M5 x 16, Shld, Blk | Bolt, But/Hd, M5 x 16, Shld, Blk | 6 | $6.94 | Available to order | 6 |
| 39 | T3350050 Wellnut, M5 | Wellnut, M5 | 4 | $6.65 | Available to order | 4 |
| 40 | T3020131 Grommet, 9 x 2 x 6 | Grommet, 9 x 2 x 6 | 4 | $2.00 | Available to order | 4 |
| 42 | T3331076 Bolt, But/Hd, M5 x 16, Shld, Enc | Bolt, But/Hd, M5 x 16, Shld, Enc | 2 | $6.94 | Available to order | 2 |
| 43 | T2315067 Gear Block | Gear Block | 2 | $6.44 | Available to order | 2 |
| 44 | T2315068 Screen Mount | Screen Mount | 2 | $12.33 | Available to order | 2 |
| 45 | T2319119 Badge, Cockpit | Badge, Cockpit | 1 | $17.78 | Available to order | 1 |
| 46 | T2311538 Spring, Screen, Wire, Dia 0.762 | Spring, Screen, Wire, Dia 0.762 | 4 | $1.28 | Available to order | 4 |
| 47 | T2315070 Gear, Detent, 28T | Gear, Detent, 28T | 2 | $5.58 | Available to order | 2 |
