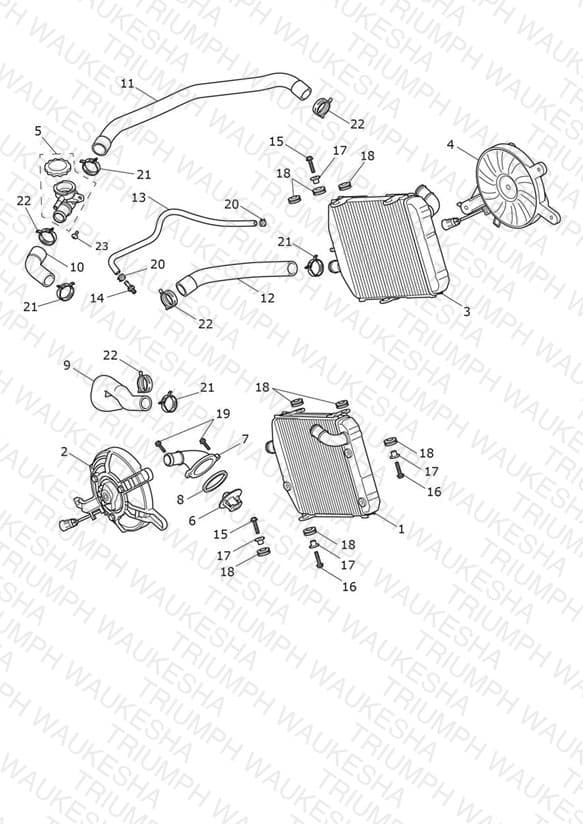

Cooling System - Radiator
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2101127 Radiator, RH | Radiator, RH | 1 | $700.64 | Available to order | 1 |
| 2 | T2101128 Fan Assy, RH | Fan Assy, RH | 1 | $520.75 | Backorder — Late August 2026 | 1 |
| 3 | T2101130 Radiator, LH | Radiator, LH | 1 | $700.64 | Backorder — Late August 2026 | 1 |
| 4 | T2101131 Fan Assy, LH | Fan Assy, LH | 1 | $520.75 | Available to order | 1 |
| 5 | T2100993 Filler Neck, Coolant | Filler Neck, Coolant | 1 | $80.24 | Available to order | 1 |
| 6 | T2100675 Thermostat | Thermostat | 1 | $68.42 | Available to order | 1 |
| 7 | T2109050 Cover, Water Outlet | Cover, Water Outlet | 1 | $48.37 | Available to order | 1 |
| 8 | T2100201 Seal, Thermostat | Seal, Thermostat | 1 | $7.14 | Available to order | 1 |
| 9 | T2100994 Hose, Coolant, Radiator, Inlet | Hose, Coolant, Radiator, Inlet | 1 | $19.80 | Out of Stock | Notify Me |
| 10 | T2102205 Hose, Coolant | Hose, Coolant | 1 | $16.74 | Available to order | 1 |
| 11 | T2102206 Hose, Link, Coolant | Hose, Link, Coolant | 1 | $33.51 | Available to order | 1 |
| 12 | T2100995 Hose, Coolant, Radiator, Outlet | Hose, Coolant, Radiator, Outlet | 1 | $17.86 | Out of Stock | Notify Me |
| 13 | T2100959 Hose, Coolant, Bypass | Hose, Coolant, Bypass | 1 | $10.34 | Out of Stock | Notify Me |
| 14 | T2102333 Spigot, Bypass | Spigot, Bypass | 1 | $28.96 | Available to order | 1 |
| 15 | T3050241 Screw, Cap/Hd, M6 x 25, Blk | Screw, Cap/Hd, M6 x 25, Blk | 2 | $2.12 | Available to order | 2 |
| 16 | T3202303 Bolt, RHHF, M6 x 28, Slv | Bolt, RHHF, M6 x 28, Slv All Except CN | 2 | $1.62 | Backorder — Early August 2026 | 2 |
| 17 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 4 | $5.78 | Available to order | 4 |
| 18 | T3020188 Grommet, 16.5 x 3 x 9.5 | Grommet, 16.5 x 3 x 9.5 | 8 | $1.91 | Out of Stock | Notify Me |
| 19 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv | 2 | $4.55 | Available to order | 2 |
| 20 | T3700440 Clip, Hose, 11-12.5mm | Clip, Hose, 11-12.5mm | 2 | $5.42 | Available to order | 2 |
| 21 | T3706214 Clamp, Constant Tension, Dia 29 | Clamp, Constant Tension, Dia 29 | 4 | $13.99 | Available to order | 4 |
| 22 | T3706215 Clamp, Constant Tension, Dia 30 | Clamp, Constant Tension, Dia 30 | 4 | $13.99 | Available to order | 4 |
| 23 | T3330627 Screw, Pan/HD, TPT, Tx, M5 x 12 | Screw, Pan/HD, TPT, Tx, M5 x 12 | 1 | $0.97 | Available to order | 1 |
