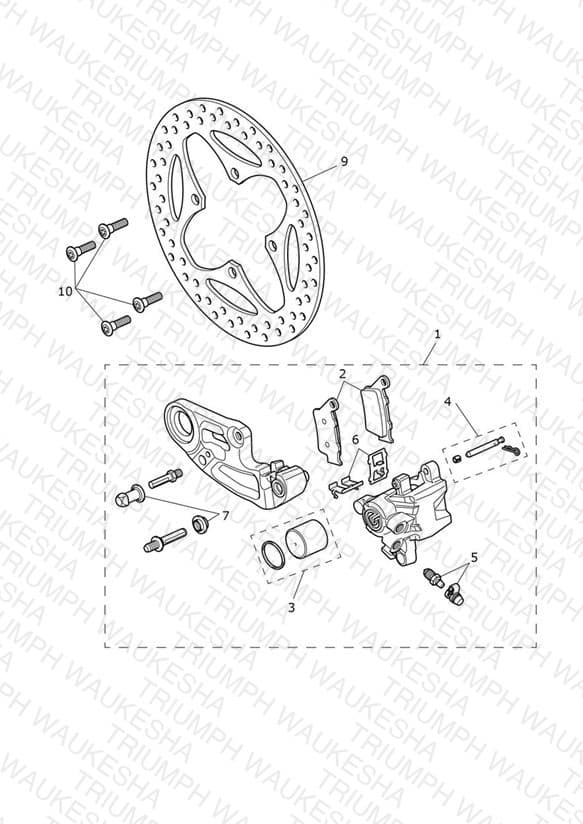

Rear Brake Caliper & Discs
Parts (9)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2024003 Rear Caliper Assembly | Rear Caliper Assembly | 1 | $871.00 | Available to order | 1 |
| 2 | T2024956 Pad Set | Pad Set Contains 2 pads | 1 | $70.37 | Available to order | 1 |
| 3 | T2022339 Piston & Seal Kit | Piston & Seal Kit | 1 | $87.18 | Available to order | 1 |
| 4 | T2024902 Pin Retainers | Pin Retainers | 1 | $24.23 | Out of Stock | Notify Me |
| 5 | T2024905 Bleeder Screw | Bleeder Screw | 1 | $9.41 | Available to order | 1 |
| 6 | T2024903 Spring Steel Clip | Spring Steel Clip | 1 | $22.14 | Available to order | 1 |
| 7 | T2024966 Boot Set | Boot Set | 2 | $43.38 | Backorder — Late August 2026 | 2 |
| 9 | T2024938 Rear Disc | Rear Disc | 1 | $276.40 | Available to order | 1 |
| 10 | T2024801 Bolt, Disc, M8 x 30, Slv, Enc | Bolt, Disc, M8 x 30, Slv, Enc | 4 | $1.90 | Available to order | 4 |
