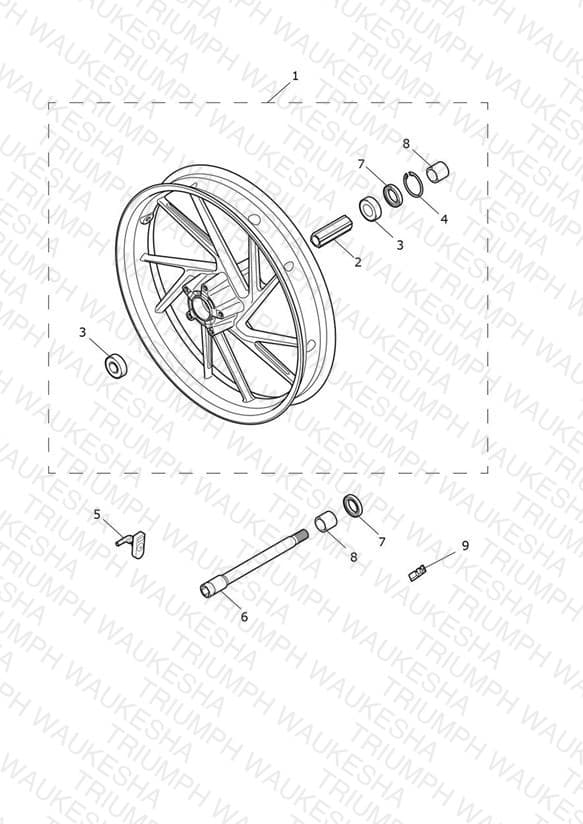

Front Wheel
Parts (11)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2001169 Front Wheel Assembly | Front Wheel Assembly | 1 | $1134.96 | Available to order | 1 |
| 2 | T2000690 Spacer, Front Wheel | Spacer, Front Wheel | 1 | $48.29 | Available to order | 1 |
| 3 | T3800703 Bearing, Ball, 20 47 14 | Bearing, Ball, 20 47 14 | 2 | $45.80 | Available to order | 2 |
| 4 | T3500402 Circlip, Int Dia 47 | Circlip, Int Dia 47 | 1 | $0.89 | Backorder — Late August 2026 | 1 |
| 5 | T2504861 Sensor, TPMS, 90 Deg, 434MHZ | Sensor, TPMS, 90 Deg, 434MHZ All Except JP | 1 | $221.99 | Available to order | 1 |
| 5 | T2504868 Sensor, TPMS, 90 Deg, 315MHZ | Sensor, TPMS, 90 Deg, 315MHZ JP Only | 1 | $232.11 | Backorder — Late August 2026 | 1 |
| 6 | T2000700 Spindle, Front, M18 x 30 | Spindle, Front, M18 x 30 | 1 | $91.26 | Available to order | 1 |
| 7 | T3600701 Oil Seal, DC 28 47 7 | Oil Seal, DC 28 47 7 | 2 | $22.52 | Backorder — Late August 2026 | 2 |
| 8 | T2002105 Spacer, OD28, ID 20, LG 25 | Spacer, OD28, ID 20, LG 25 | 2 | $30.23 | Available to order | 2 |
| 9 | T2007102 Wheel Weight, 5g, Black | Wheel Weight, 5g, Black As Required | — | $11.01 | Available to order | 1 |
| 9 | T2006688 Wheel Weight, 5 Gram, Black | Wheel Weight, 5 Gram, Black As Required | — | $11.01 | Available to order | 1 |
