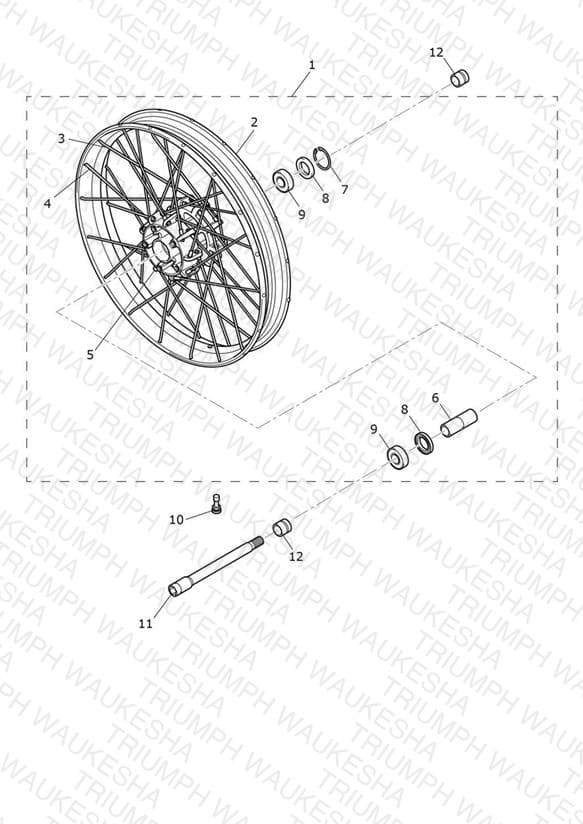

Front Wheel
Parts (13)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2000478 Front Wheel, Spoked, 21 x 2.15 | Front Wheel, Spoked, 21 x 2.15 | 1 | $1288.06 | Available to order | 1 |
| 2 | T2000494 Rim, Front Wheel, Tubeless, 21 x 2.15 | Rim, Front Wheel, Tubeless, 21 x 2.15 | 1 | $1042.69 | Available to order | 1 |
| 3 | T2000517 Spoke, 279mm | Spoke, 279mm | 18 | $6.29 | Available to order | 18 |
| 4 | T2000518 Spoke, 284.8mm | Spoke, 284.8mm | 18 | $6.29 | Available to order | 18 |
| 5 | T2000598 Nipple, Spoke, Locking, Slv | Nipple, Spoke, Locking, Slv | 36 | $6.94 | Available to order | 36 |
| 6 | T2007515 Spacer, Internal Wheel | Spacer, Internal Wheel | 1 | $30.42 | Backorder — Mid August 2026 | 1 |
| 7 | T3500012 Circlip, Int Dia 47 | Circlip, Int Dia 47 | 1 | $3.90 | Available to order | 1 |
| 8 | T3600046 Oil Seal, 28 47 7 | Oil Seal, 28 47 7 | 2 | $18.91 | Available to order | 2 |
| 9 | T3800096 Bearing Ball, 20 47 14 | Bearing Ball, 20 47 14 | 2 | $35.08 | Available to order | 2 |
| 10 | T2000613 Valve Assembly | Valve Assembly | 1 | $5.69 | Available to order | 1 |
| 11 | T2000700 Spindle, Front, M18 x 30 | Spindle, Front, M18 x 30 | 1 | $91.26 | Available to order | 1 |
| 12 | T2002105 Spacer, OD28, ID 20, LG 25 | Spacer, OD28, ID 20, LG 25 | 2 | $30.23 | Available to order | 2 |
| 13 | T2006688 Wheel Weight, 5 Gram, Black | Wheel Weight, 5 Gram, Black As Required | 1 | $11.01 | Available to order | 1 |
