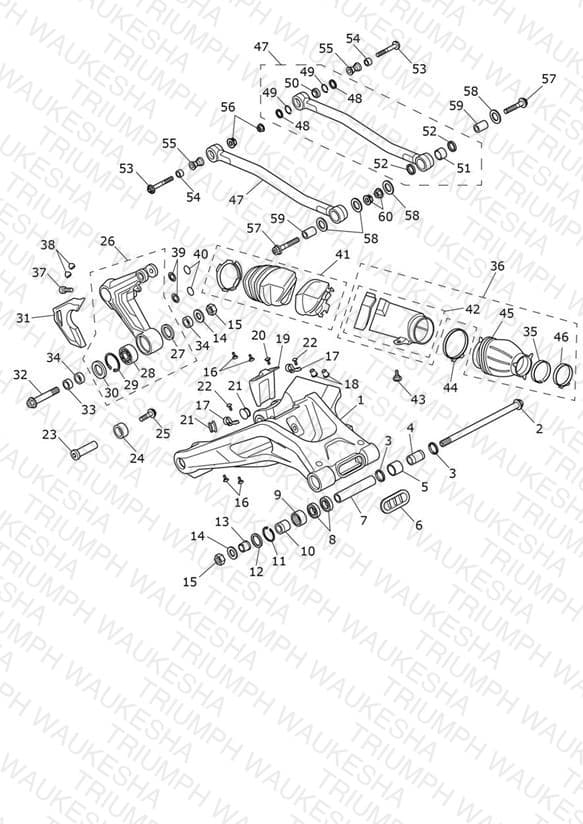

Swinging Arm Assembly
Parts (60)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2050680 Swingarm Assembly, Long | Swingarm Assembly, Long Contains items 3,5,8,9,11 &12 | 1 | $1358.35 | Available to order | 1 |
| 2 | T2052087 Spindle, Swinging Arm | Spindle, Swinging Arm | 1 | $91.73 | Out of Stock | Notify Me |
| 3 | T3600162 Oil Seal, 32 25 4 | Oil Seal, 32 25 4 | 2 | $8.53 | Available to order | 2 |
| 4 | T2050468 Sleeve, Ground, 25 x 17 x 41 | Sleeve, Ground, 25 x 17 x 41 | 1 | $40.22 | Available to order | 1 |
| 5 | T3800014 Roller bearing | Roller bearing | 1 | $14.32 | Available to order | 1 |
| 6 | T2052002 Grommet, Swinging Arm | Grommet, Swinging Arm | 1 | $2.25 | Available to order | 1 |
| 7 | T2052086 Spacer, Internal | Spacer, Internal | 1 | $42.04 | Available to order | 1 |
| 8 | T3800227 Bearing, Ball, 30 37 9 | Bearing, Ball, 30 37 9 | 2 | $18.96 | Available to order | 2 |
| 9 | T3800228 Brg, Needle, Solid, 28 37 20 | Brg, Needle, Solid, 28 37 20 | 1 | $17.28 | Available to order | 1 |
| 10 | T3010137 Sleeve, Ground, 28 x 17 x 28 | Sleeve, Ground, 28 x 17 x 28 | 1 | $40.22 | Available to order | 1 |
| 11 | T3500087 Circlip, Internal, 37 x 1.5 | Circlip, Internal, 37 x 1.5 | 1 | $16.04 | Available to order | 1 |
| 12 | T3600307 Seal, 28 37 5 | Seal, 28 37 5 | 1 | $12.38 | Available to order | 1 |
| 13 | T2051010 Swingarm Pivot Adjuster | Swingarm Pivot Adjuster | 1 | $24.43 | Available to order | 1 |
| 14 | T3551240 Washer, M16 x 34 x 3 | Washer, M16 x 34 x 3 | 2 | $2.63 | Available to order | 2 |
| 15 | T3350155 Locknut, Thin, M16 | Locknut, Thin, M16 | 2 | $9.41 | Available to order | 2 |
| 16 | T3450290 Fir Tree, M5, Dia 12.1 x 15 | Fir Tree, M5, Dia 12.1 x 15 | 4 | $1.42 | Available to order | 4 |
| 17 | T2050971 Guide, Brake Hose, Mldg | Guide, Brake Hose, Mldg | 2 | $8.16 | Available to order | 2 |
| 18 | T3450675 Bung, Hole Dia 12, Black | Bung, Hole Dia 12, Black | 2 | $7.71 | Available to order | 2 |
| 19 | T2057759 Cover, Swingarm, Mldg | Cover, Swingarm, Mldg | 1 | $20.94 | Out of Stock | Notify Me |
| 20 | T3330728 Screw, Pan/Hd, Tx, M5 x 16, Enc | Screw, Pan/Hd, Tx, M5 x 16, Enc | 1 | $0.97 | Available to order | 1 |
| 21 | T3451002 Blanking Plug | Blanking Plug | 2 | $4.02 | Available to order | 2 |
| 22 | T3331191 Screw, Pan/Hd, Tx, M6 x 20, Enc | Screw, Pan/Hd, Tx, M6 x 20, Enc | 2 | $2.10 | Available to order | 2 |
| 23 | T2052088 Flgd Sleeve, Threaded, M12 x 20 x 68 | Flgd Sleeve, Threaded, M12 x 20 x 68 | 1 | $39.85 | Out of Stock | Notify Me |
| 24 | T2050705 Spacer, Hollow, 12.6 x 30 x 14, Alu | Spacer, Hollow, 12.6 x 30 x 14, Alu | 1 | $23.79 | Out of Stock | Notify Me |
| 25 | T3332825 Screw, TX, M12 x 40, Slv, Enc | Screw, TX, M12 x 40, Slv, Enc | 1 | $11.35 | Available to order | 1 |
| 26 | T2059040 Hanger, Rear Wheel | Hanger, Rear Wheel | 1 | $313.78 | Available to order | 1 |
| 27 | T3600327 Seal, 28 x 40 x 7 | Seal, 28 x 40 x 7 | 1 | $5.73 | Out of Stock | Notify Me |
| 28 | T3800731 Bearing, Ball, Drac, 17 x 47 x 22.2 | Bearing, Ball, Drac, 17 x 47 x 22.2 | 1 | $95.56 | Out of Stock | Notify Me |
| 29 | T3500402 Circlip, Int Dia 47 | Circlip, Int Dia 47 | 1 | $0.89 | Available to order | 1 |
| 30 | T3600701 Oil Seal, DC 28 47 7 | Oil Seal, DC 28 47 7 | 1 | $22.52 | Backorder — Late August 2026 | 1 |
| 31 | T2054350 Cover, Wheel Hanger, Moulding | Cover, Wheel Hanger, Moulding | 1 | $19.78 | Available to order | 1 |
| 32 | T2052089 Spindle, Swingarm | Spindle, Swingarm | 1 | $69.23 | Out of Stock | Notify Me |
| 33 | T2052091 Spacer, 17 x 25 x 12, Alu | Spacer, 17 x 25 x 12, Alu | 1 | $10.15 | Available to order | 1 |
| 34 | T2052092 Spacer, 17 x 28 x 10.5, Alu | Spacer, 17 x 28 x 10.5, Alu | 2 | $9.91 | Available to order | 2 |
| 35 | T2311663 Clamp, Mldg | Clamp, Mldg | 1 | $6.65 | Available to order | 1 |
| 36 | T2059308 Spares Kit, Gaiter, Front | Spares Kit, Gaiter, Front | 1 | $92.14 | Available to order | 1 |
| 37 | T3050430 Screw, Cap/Hd, M10 x 30, Slv | Screw, Cap/Hd, M10 x 30, Slv | 1 | $4.64 | Available to order | 1 |
| 38 | T1276701 Rubber Cap, Tapered | Rubber Cap, Tapered | 2 | $0.89 | Available to order | 2 |
| 39 | T3550256 Washer, Retaining, 6.0 | Washer, Retaining, 6.0 | 2 | $1.13 | Available to order | 2 |
| 40 | T3600109 O Ring, ID 5.6 x 2.3 | O Ring, ID 5.6 x 2.3 | 2 | $5.30 | Available to order | 2 |
| 41 | T2050803 Boot, Swingarm, Rear | Boot, Swingarm, Rear | 1 | $112.60 | Out of Stock | Notify Me |
| 42 | T2311486 Cover, Driveshaft , Mldg | Cover, Driveshaft , Mldg | 1 | $102.36 | Available to order | 1 |
| 43 | T3330848 Bolt, But/Hd, M6 x 21, Shld, Slv | Bolt, But/Hd, M6 x 21, Shld, Slv | 1 | $5.88 | Available to order | 1 |
| 44 | T3701080 Band Clamp, 72mm | Band Clamp, 72mm | 1 | $9.02 | Available to order | 1 |
| 45 | T2050799 Gaiter, Front | Gaiter, Front | 1 | $18.31 | Available to order | 1 |
| 46 | T3700041 Clip, Intake, Venturi, 60mm, Cap | Clip, Intake, Venturi, 60mm, Cap | 1 | $7.87 | Available to order | 1 |
| 47 | T2050740 Link Arm Assy, Long | Link Arm Assy, Long | 2 | $302.49 | Out of Stock | Notify Me |
| 48 | T3600239 Oil Seal, 15 x 22 x 4 | Oil Seal, 15 x 22 x 4 | 4 | $5.07 | Out of Stock | Notify Me |
| 49 | T3500121 Snap Ring, Int, 23 x 1.75 | Snap Ring, Int, 23 x 1.75 | 4 | $0.66 | Out of Stock | Notify Me |
| 50 | T3800232 Brg, Spherical, GE12UK | Brg, Spherical, GE12UK | 2 | $25.11 | Backorder — Early August 2026 | 2 |
| 51 | T3800199 Bearing, Needle Roller, 20 x 26 x 20 | Bearing, Needle Roller, 20 x 26 x 20 | 2 | $16.50 | Available to order | 2 |
| 52 | T3600178 Seal, 20 x 26 x 4 | Seal, 20 x 26 x 4 | 4 | $7.71 | Available to order | 4 |
| 53 | T3202697 Bolt, TX, M10 x 60 | Bolt, TX, M10 x 60 | 2 | $5.30 | Available to order | 2 |
| 54 | T2054354 Sleeve, 17 x 10.2 x 11, Alu | Sleeve, 17 x 10.2 x 11, Alu | 2 | $16.50 | Available to order | 2 |
| 55 | T2056940 Spacer, Stepped, Torque Arm, Aluminium | Spacer, Stepped, Torque Arm, Aluminium | 2 | $23.33 | Backorder — Late August 2026 | 2 |
| 56 | T3350250 Locknut, Flanged, M10 | Locknut, Flanged, M10 | 2 | $4.16 | Available to order | 2 |
| 57 | T3151141 Bolt, TX, M12 x 55, Slv | Bolt, TX, M12 x 55, Slv | 2 | $9.88 | Available to order | 2 |
| 58 | T3550329 Washer, Nylon, 20.2 x 30 x 1 | Washer, Nylon, 20.2 x 30 x 1 | 2 | $1.10 | Available to order | 2 |
| 59 | T2050345 Sleeve, Ground, 20 x 12 x 29 | Sleeve, Ground, 20 x 12 x 29 | 2 | $21.82 | Available to order | 2 |
| 60 | T3350115 Locknut, Flgd, M12 x 1.25, Slv | Locknut, Flgd, M12 x 1.25, Slv | 2 | $4.37 | Unavailable | View Details |
