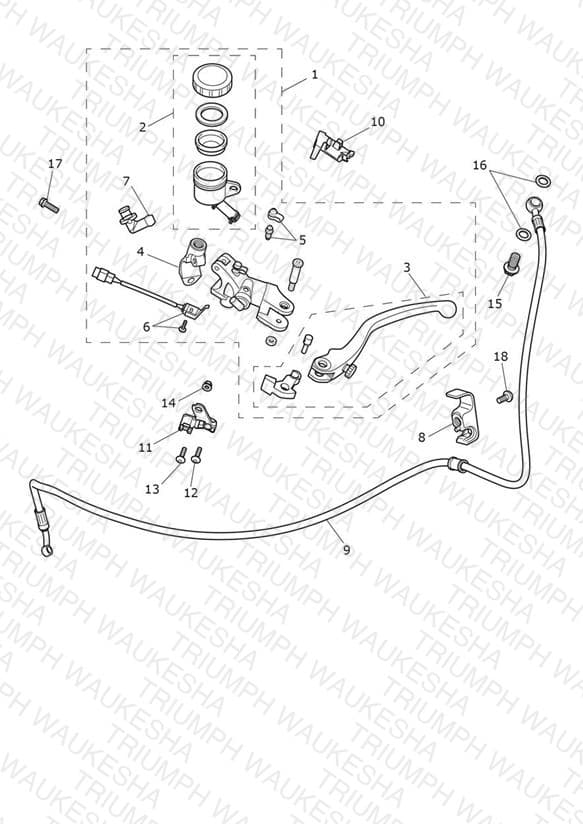

Clutch Controls
Parts (17)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2044324 Clutch Master Cylinder Assembly | Clutch Master Cylinder Assembly | 1 | $501.54 | Available to order | 1 |
| 2 | T2043743 Reservoir, 9ml, M/Cyl | Reservoir, 9ml, M/Cyl | 1 | $147.41 | Out of Stock | Notify Me |
| 3 | T2044483 Clutch Lever | Clutch Lever | 1 | $94.84 | Available to order | 1 |
| 4 | T2022267 Clamp, M/Cyl, Mirror Mount | Clamp, M/Cyl, Mirror Mount | 1 | $56.83 | Available to order | 1 |
| 5 | T2022521 Bleed Screw | Bleed Screw | 1 | $15.98 | Backorder — Late August 2026 | 1 |
| 6 | T2043797 Switch, Clutch | Switch, Clutch | 1 | $37.30 | Available to order | 1 |
| 7 | T2022586 Pipe Fitting, M/Cyl | Pipe Fitting, M/Cyl | 1 | $24.86 | Available to order | 1 |
| 8 | T2026343 Guide Hose & Harness Moulding | Guide Hose & Harness Moulding | 1 | $8.11 | Backorder — Mid August 2026 | 1 |
| 9 | T2045765 Clutch Line | Clutch Line | 1 | $94.72 | Available to order | 1 |
| 10 | T2049806 Bracket, Connector, Clutch, Mldg | Bracket, Connector, Clutch, Mldg | 1 | $7.71 | Available to order | 1 |
| 11 | T2310694 Res/Conn Bracket, Clutch M/Cyl, Mldg | Res/Conn Bracket, Clutch M/Cyl, Mldg | 1 | $27.35 | Available to order | 1 |
| 12 | T3330728 Screw, Pan/Hd, Tx, M5 x 16, Enc | Screw, Pan/Hd, Tx, M5 x 16, Enc | 2 | $0.97 | Available to order | 2 |
| 14 | T3350010 Locknut, Flgd, M5 | Locknut, Flgd, M5 | 1 | $2.25 | Available to order | 1 |
| 15 | T3250032 Banjo Bolt, M10 x 19 | Banjo Bolt, M10 x 19 | 1 | $5.58 | Available to order | 1 |
| 16 | T3550229 Washer, 15.2 x 10 x 1, Plated | Washer, 15.2 x 10 x 1, Plated | 2 | $1.07 | Available to order | 2 |
| 17 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 1 | $3.50 | Available to order | 1 |
| 18 | T3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv | Screw, Pan/Hd, Tx, M6 x 16, Slv | 1 | $0.97 | Available to order | 1 |
