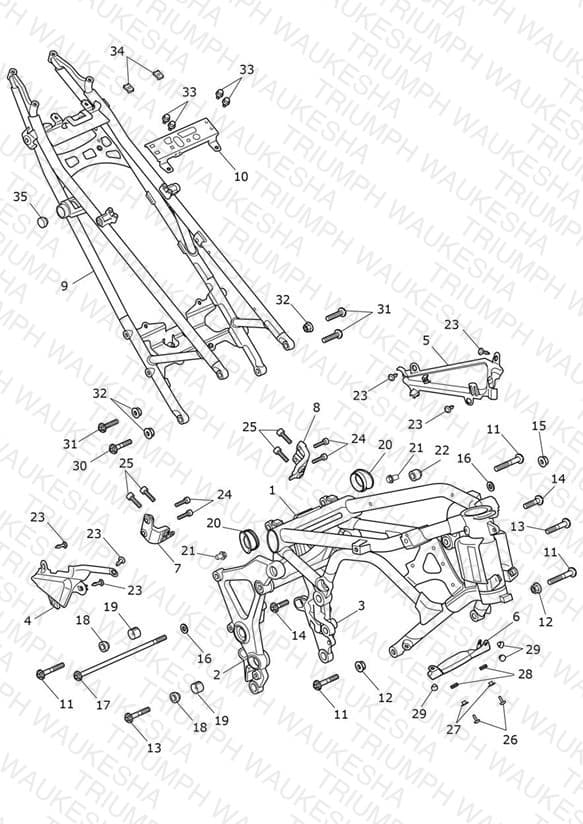

Frame & Rear Subframe
Parts (40)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2079201 Frame Assy, Spares, A3 | Frame Assy, Spares, A3 All Except AU, CA, US, CN, XA & KR | 1 | $2166.68 | Out of Stock | Notify Me |
| 1 | T2079202 Frame Assy, Spares, AU | Frame Assy, Spares, AU | 1 | $2166.68 | Out of Stock | Notify Me |
| 1 | T2079203 Frame Assembly, Spares, CA | Frame Assembly, Spares, CA | 1 | $2166.68 | Out of Stock | Notify Me |
| 1 | T2079204 Frame Assy, Spares, US | Frame Assy, Spares, US | 1 | $2166.68 | Out of Stock | Notify Me |
| 1 | T2079205 Frame Assy, Spares, CN | Frame Assy, Spares, CN | 1 | $2166.68 | Out of Stock | Notify Me |
| 1 | T2079206 Frame Assy, Spares, XA | Frame Assy, Spares, XA | 1 | $2166.68 | Out of Stock | Notify Me |
| 1 | T2079207 Frame Assy, Spares, KR | Frame Assy, Spares, KR | 1 | $2166.68 | Out of Stock | Notify Me |
| 2 | T2077873 Outrigger, Forged, RH | Outrigger, Forged, RH | 1 | $568.61 | Out of Stock | Notify Me |
| 3 | T2077872 Outrigger, Forged, LH | Outrigger, Forged, LH | 1 | $568.61 | Out of Stock | Notify Me |
| 4 | T2073808 Frame Infill, RHS | Frame Infill, RHS | 1 | $26.70 | Available to order | 1 |
| 5 | T2071571 Frame Infill, LH | Frame Infill, LH | 1 | $25.90 | Out of Stock | Notify Me |
| 6 | T2074115 Frame Infill, Front | Frame Infill, Front | 1 | $27.19 | Out of Stock | Notify Me |
| 7 | T2077875 Bracket, Support, Outrigger, RH | Bracket, Support, Outrigger, RH | 1 | $65.80 | Available to order | 1 |
| 8 | T2077874 Bracket, Support, Outrigger, LH | Bracket, Support, Outrigger, LH | 1 | $65.80 | Available to order | 1 |
| 9 | T2071409 Rear Subrame Assy, Nevada Silver | Rear Subrame Assy, Nevada Silver | 1 | $756.57 | Available to order | 1 |
| 10 | T2071425 Bridge, Front | Bridge, Front | 1 | $25.81 | Out of Stock | Notify Me |
| 11 | T3331342 Bolt, TX, M12 x 70, Slv | Bolt, TX, M12 x 70, Slv | 4 | $9.78 | Out of Stock | Notify Me |
| 12 | T3350184 Nut, LH, M6, Slv | Nut, LH, M6, Slv | 2 | $6.12 | Available to order | 2 |
| 13 | T3331341 Bolt, TX, M12 x 63, Shld, Slv | Bolt, TX, M12 x 63, Shld, Slv | 2 | $9.78 | Available to order | 2 |
| 14 | T3331343 Bolt, TX, M12 x 40, Slv | Bolt, TX, M12 x 40, Slv | 2 | $9.78 | Out of Stock | Notify Me |
| 15 | T3350250 Locknut, Flanged, M10 | Locknut, Flanged, M10 | 1 | $4.16 | Available to order | 1 |
| 16 | T3555029 Washer, 10.5 x 23 x 2 | Washer, 10.5 x 23 x 2 | 2 | $2.74 | Available to order | 2 |
| 17 | T3202110 Bolt, TX, M10 x 270 | Bolt, TX, M10 x 270 | 1 | $12.16 | Available to order | 1 |
| 18 | T2077847 Sleeve, Tapered | Sleeve, Tapered | 2 | $21.36 | Out of Stock | Notify Me |
| 19 | T2077846 Sleeve, Expanding | Sleeve, Expanding | 2 | $25.82 | Out of Stock | Notify Me |
| 20 | T2072269 Bung | Bung | 2 | $5.27 | Out of Stock | Notify Me |
| 21 | T3205156 Bolt, HHF, Lghtd, M8 x 16, Slv | Bolt, HHF, Lghtd, M8 x 16, Slv | 2 | $1.62 | Available to order | 2 |
| 22 | T2072421 Nut Cover, LH Outrigger | Nut Cover, LH Outrigger | 1 | $8.38 | Backorder — Late August 2026 | 1 |
| 23 | T3701170 Plastic Rivet, Screw Type | Plastic Rivet, Screw Type | 6 | $1.21 | Available to order | 6 |
| 24 | T3050323 Screw, Cap/Hd, M8 x 30, Slv | Screw, Cap/Hd, M8 x 30, Slv | 4 | $4.74 | Available to order | 4 |
| 25 | T3050176 Screw, Cap/Hd. M8 x 30, Slv | Screw, Cap/Hd. M8 x 30, Slv | 4 | $6.44 | Available to order | 4 |
| 26 | T3330941 Screw, But/Hd, Skt, M5 x 16, Slv | Screw, But/Hd, Skt, M5 x 16, Slv | 2 | $6.73 | Available to order | 2 |
| 27 | T3010126 Flanged Sleeve, M5, Slv | Flanged Sleeve, M5, Slv | 2 | $2.17 | Out of Stock | Notify Me |
| 28 | T3020085 Grommet, Dia 18 x 9 | Grommet, Dia 18 x 9 | 2 | $2.10 | Available to order | 2 |
| 29 | T3021161 Rubber Foot, Dia 14.22 x 7.1 | Rubber Foot, Dia 14.22 x 7.1 | 3 | $2.17 | Available to order | 3 |
| 30 | T3151125 Bolt, TX, M10 x 1.25 x 52, Slv | Bolt, TX, M10 x 1.25 x 52, Slv | 1 | $15.12 | Available to order | 1 |
| 31 | T3210022 Bolt, TX, M10 x 45, Slv | Bolt, TX, M10 x 45, Slv | 3 | $6.44 | Backorder — Late August 2026 | 3 |
| 33 | T3203222 Bolt, HHF, M6 x 12, Slv | Bolt, HHF, M6 x 12, Slv | 4 | $1.72 | Available to order | 4 |
| 34 | T3350123 Nut, Captive, M5, Non-Secured | Nut, Captive, M5, Non-Secured | 2 | $2.48 | Available to order | 2 |
| 35 | T2307369 Rubber Foot, 4mm Deep | Rubber Foot, 4mm Deep | 1 | $3.70 | Available to order | 1 |
