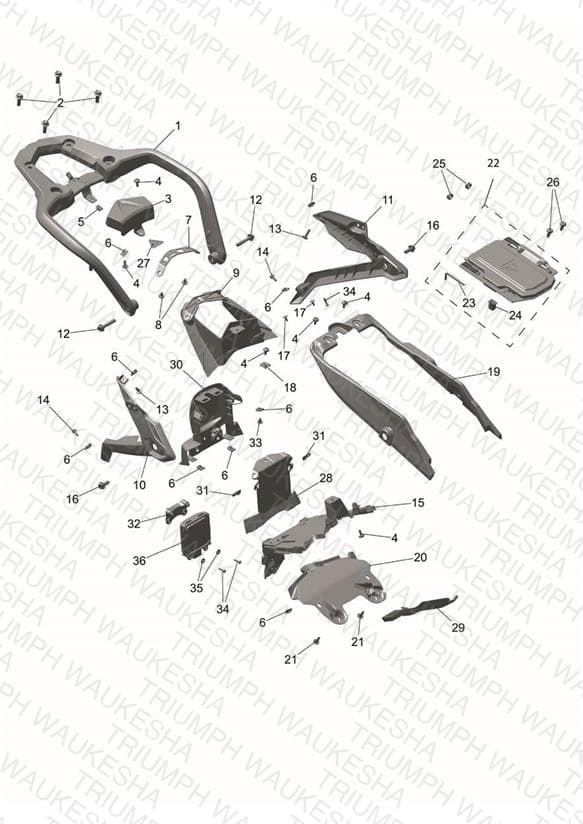

Rear Bodywork & Grabrack
Parts (36)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2310732-LL Grab Rail, Painted | Grab Rail, Painted | 1 | $325.44 | Available to order | 1 |
| 2 | T3205781 Bolt, HHF, Lghtd, M8 x 1.25 x 25, Slv | Bolt, HHF, Lghtd, M8 x 1.25 x 25, Slv All Except BR | 4 | $1.73 | Available to order | 4 |
| 3 | T2309808 Finisher, Grabrack | Finisher, Grabrack | 1 | $26.29 | Available to order | 1 |
| 4 | T3330943 Screw, But/Hd, M5 x 14, Slv | Screw, But/Hd, M5 x 14, Slv | 7 | $5.24 | Backorder — Late October 2026 | 7 |
| 5 | T3350129 Nut, Captive, M5 | Nut, Captive, M5 | 1 | $3.61 | Available to order | 1 |
| 6 | T3350161 Nut, Captive, M5 | Nut, Captive, M5 | 8 | $4.84 | Available to order | 8 |
| 7 | T2310721 Bracket, Grab Rack | Bracket, Grab Rack | 1 | $54.58 | Available to order | 1 |
| 8 | T3330289 Screw, But/Hd, TX, M5 x 16, Slv | Screw, But/Hd, TX, M5 x 16, Slv | 2 | $2.13 | Available to order | 2 |
| 9 | T2313034 Infill Panel, Rear Subframe | Infill Panel, Rear Subframe | 1 | $28.76 | Available to order | 1 |
| 10 | T2310453 Number Plate Hanger, RHS | Number Plate Hanger, RHS | 1 | $37.82 | Available to order | 1 |
| 11 | T2310452 Number Plate Hanger, LHS | Number Plate Hanger, LHS | 1 | $37.82 | Available to order | 1 |
| 12 | T3202325 Bolt, HHF, M8 x 43, Slv | Bolt, HHF, M8 x 43, Slv All Except BR | 2 | $1.73 | Available to order | 2 |
| 13 | T3330952 Screw, Butn/Hd, M5 x 20, Slv | Screw, Butn/Hd, M5 x 20, Slv | 2 | $2.63 | Available to order | 2 |
| 14 | T3330891 Bolt, RHHF, M5 x 0.8 x 12, S5041 | Bolt, RHHF, M5 x 0.8 x 12, S5041 | 2 | $3.45 | Available to order | 2 |
| 15 | T2313032 Number Plate Hanger, Centre | Number Plate Hanger, Centre | 1 | $57.45 | Available to order | 1 |
| 16 | T3205254 Bolt, HHF, Lghtd, M8 x 20, Slv | Bolt, HHF, Lghtd, M8 x 20, Slv All Except BR | 2 | $1.73 | Available to order | 2 |
| 17 | T3331436 Screw, S/Tap, Pan, Torx, 4 x 11, PT | Screw, S/Tap, Pan, Torx, 4 x 11, PT | 2 | $0.81 | Available to order | 2 |
| 18 | T3350123 Nut, Captive, M5, Non-Secured | Nut, Captive, M5, Non-Secured | 1 | $2.63 | Available to order | 1 |
| 19 | T2310501 Cover, Underseat Moulding | Cover, Underseat Moulding | 1 | $44.09 | Available to order | 1 |
| 20 | T2310388 Cover, Moulding | Cover, Moulding | 1 | $62.52 | Available to order | 1 |
| 21 | T3701150 Plastic Rivet, Push Release | Plastic Rivet, Push Release | 2 | $1.04 | Available to order | 2 |
| 22 | T3900777 Spares Kit, Storage Box, Lid | Spares Kit, Storage Box, Lid | 1 | $68.47 | Out of Stock | Notify Me |
| 23 | T2103087 Allen Key, 4mm, Short | Allen Key, 4mm, Short | 1 | $5.77 | Available to order | 1 |
| 24 | T2309804 Push Latch | Push Latch | 1 | $31.47 | Available to order | 1 |
| 25 | T3020021 Grommet, Id 8.5, Od 10.5 | Grommet, Id 8.5, Od 10.5 | 2 | $2.91 | Out of Stock | Notify Me |
| 26 | T3701170 Plastic Rivet, Screw Type | Plastic Rivet, Screw Type | 2 | $1.29 | Available to order | 2 |
| 27 | T3951030 Badge, Symbol | Badge, Symbol | 1 | $18.44 | Backorder — Mid October 2026 | 1 |
| 28 | T2310449 Front Facing Cover, Mldg | Front Facing Cover, Mldg | 1 | $26.53 | Available to order | 1 |
| 29 | T2311505 Cover, Blindspot Cable, Mldg | Cover, Blindspot Cable, Mldg | 1 | $9.98 | Out of Stock | Notify Me |
| 30 | T2313033 Rear Facing Cover, Mldg | Rear Facing Cover, Mldg | 1 | $24.93 | Available to order | 1 |
| 31 | T2313085 Clip, Bodywork | Clip, Bodywork | 2 | $2.60 | Available to order | 2 |
| 32 | T2313255 Mount, Radar, Mldg | Mount, Radar, Mldg | 1 | $17.84 | Available to order | 1 |
| 33 | T3331061 Bolt, But/Hd, M5 x 11, Shld, Slv | Bolt, But/Hd, M5 x 11, Shld, Slv | 1 | $5.35 | Available to order | 1 |
| 34 | T3331432 Screw, Pan/Hd, Torx, M4 x 18, Slv | Screw, Pan/Hd, Torx, M4 x 18, Slv | 3 | $1.13 | Available to order | 3 |
| 35 | T3551066 Washer, 4.3 x 12.0 x 1.0 | Washer, 4.3 x 12.0 x 1.0 | 2 | $1.73 | Out of Stock | Notify Me |
| 36 | T2506387 Blindspot Radar | Blindspot Radar | 1 | $1212.96 | Available to order | 1 |
