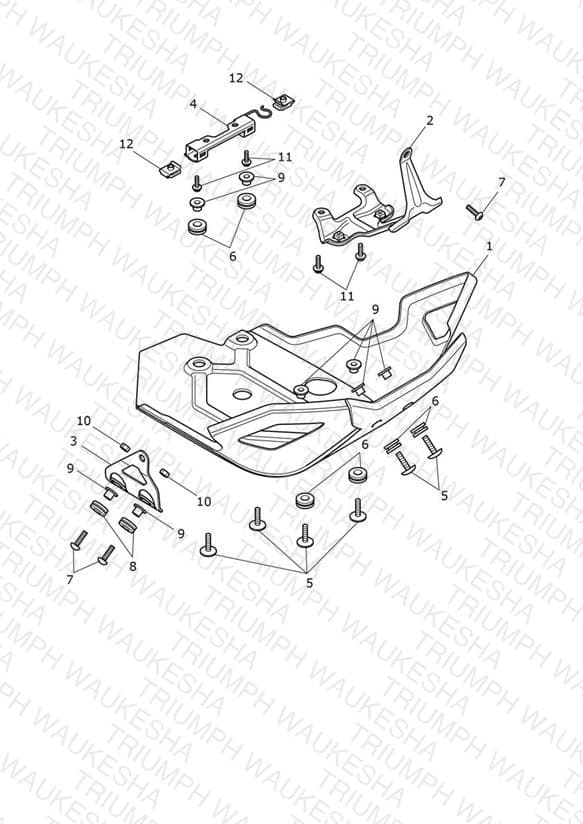

Sumpguard
Parts (12)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2319803 Sumpguard, 2mm Sides | Sumpguard, 2mm Sides | 1 | $385.19 | Available to order | 1 |
| 2 | T9708843 Bracket, Sumpguard | Bracket, Sumpguard | 1 | $44.55 | Available to order | 1 |
| 3 | T2310349 Bracket, Skid Plate | Bracket, Skid Plate | 1 | $17.80 | Available to order | 1 |
| 4 | T2310357 Bracket, Sumpguard Base, Rear | Bracket, Sumpguard Base, Rear | 1 | $45.92 | Available to order | 1 |
| 5 | T3330727 Screw, But/Hd, M6 x 20, Slv | Screw, But/Hd, M6 x 20, Slv | 6 | $3.39 | Available to order | 6 |
| 6 | T3020068 Grommet, Dia 14 x 4 | Grommet, Dia 14 x 4 | 6 | $5.14 | Available to order | 6 |
| 7 | T3331234 Screw, Torx, P/H, M6 x 20, Slv | Screw, Torx, P/H, M6 x 20, Slv | 3 | $5.30 | Available to order | 3 |
| 8 | T3021100 Grommet, Dia 13 x 1.8 | Grommet, Dia 13 x 1.8 | 2 | $2.85 | Available to order | 2 |
| 9 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 8 | $5.78 | Available to order | 8 |
| 10 | T3350300 Nut, M6 x 1.0, Slv | Nut, M6 x 1.0, Slv | 2 | $0.94 | Available to order | 2 |
| 11 | T3205064 Bolt, RHHF, Domed, S/S, M6 x 16, Enc | Bolt, RHHF, Domed, S/S, M6 x 16, Enc | 4 | $4.01 | Out of Stock | Notify Me |
| 12 | T3350111 Nut, Captive, M6 | Nut, Captive, M6 | 2 | $4.92 | Backorder — Early August 2026 | 2 |
