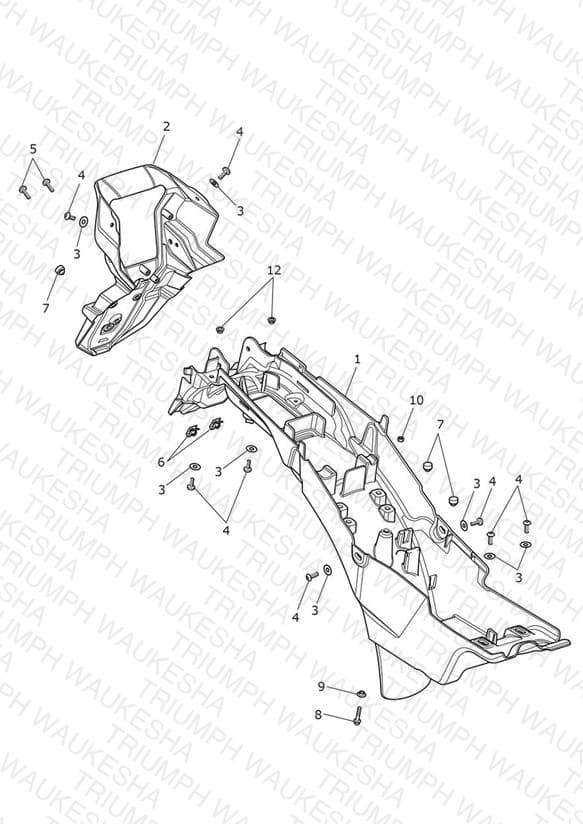

Rear Mudguard & Battery Box
Parts (11)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2309621 Mudguard Tray, Moulding | Mudguard Tray, Moulding | 1 | $214.83 | Available to order | 1 |
| 2 | T2302643 Rear Mudguard Moulding | Rear Mudguard Moulding | 1 | $159.69 | Backorder — Late August 2026 | 1 |
| 3 | T3555026 Washer, 6.4 x 18 x 1.6 | Washer, 6.4 x 18 x 1.6 | 8 | $1.21 | Available to order | 8 |
| 4 | T3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv | Screw, Pan/Hd, Tx, M6 x 16, Slv | 8 | $0.97 | Available to order | 8 |
| 5 | T3330941 Screw, But/Hd, Skt, M5 x 16, Slv | Screw, But/Hd, Skt, M5 x 16, Slv | 2 | $6.73 | Available to order | 2 |
| 6 | T3351052 Nut, Captive, 4-5.5mm | Nut, Captive, 4-5.5mm | 2 | $4.36 | Available to order | 2 |
| 7 | T3021161 Rubber Foot, Dia 14.22 x 7.1 | Rubber Foot, Dia 14.22 x 7.1 | 1 | $2.17 | Available to order | 1 |
| 8 | T3200190 Bolt, RHHF, M6 x 25, Slv | Bolt, RHHF, M6 x 25, Slv | 1 | $2.63 | Available to order | 1 |
| 9 | T3010062 Flanged Sleeve, M6 x 7.8 x 2.85 | Flanged Sleeve, M6 x 7.8 x 2.85 | 1 | $7.14 | Available to order | 1 |
| 10 | T3350300 Nut, M6 x 1.0, Slv | Nut, M6 x 1.0, Slv | 1 | $0.94 | Available to order | 1 |
| 12 | T3010138 Sleeve, Flgd, 6 x 11 x 3.2 | Sleeve, Flgd, 6 x 11 x 3.2 | 2 | $4.01 | Out of Stock | Notify Me |
