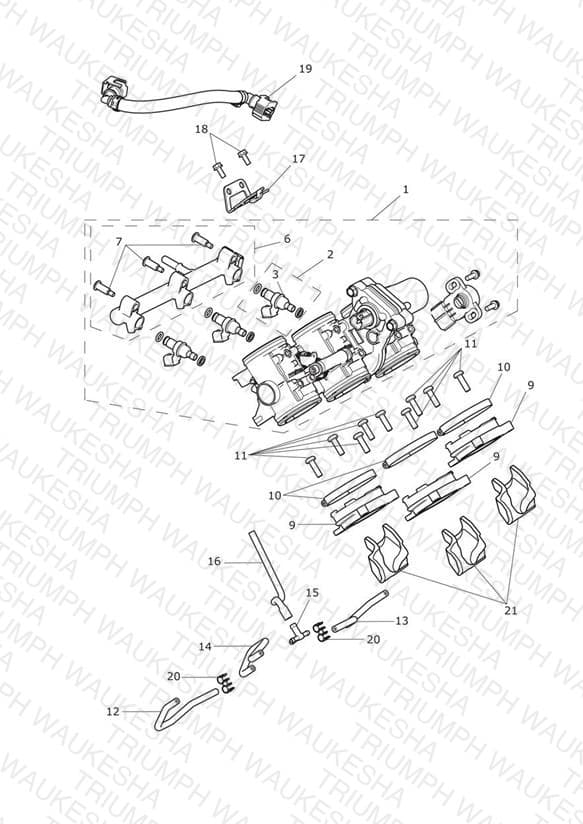

Throttles, Injectors and Fuel Rail
Parts (18)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1241850 Throttle Body Assembly | Throttle Body Assembly | 1 | $3133.49 | Available to order | 1 |
| 2 | T1249018 Fuel Injector Assembly | Fuel Injector Assembly | 3 | $228.13 | Available to order | 3 |
| 3 | T1241708 Fuel Injector | Fuel Injector | 3 | $239.57 | Available to order | 3 |
| 6 | T1249019 Pipe Set, Fuel | Pipe Set, Fuel | 1 | $218.63 | Available to order | 1 |
| 7 | T1240471 Screw, Fuel Rail | Screw, Fuel Rail | 3 | $4.85 | Available to order | 3 |
| 9 | T1240446 Transition Piece | Transition Piece | 3 | $33.23 | Available to order | 3 |
| 10 | T1241705 Clip, Transition Piece | Clip, Transition Piece | 3 | $33.23 | Available to order | 3 |
| 11 | T3331234 Screw, Torx, P/H, M6 x 20, Slv | Screw, Torx, P/H, M6 x 20, Slv | 9 | $5.30 | Available to order | 9 |
| 12 | T1241729 Hose, Map, Cyl 1 | Hose, Map, Cyl 1 | 1 | $10.71 | Available to order | 1 |
| 13 | T1241730 Hose, Map, Cyl 3 | Hose, Map, Cyl 3 | 3 | $10.71 | Available to order | 3 |
| 14 | T1241731 Hose, Map, Cyl 2 | Hose, Map, Cyl 2 | 1 | $9.69 | Available to order | 1 |
| 15 | T1242929 Connector, 4 Way | Connector, 4 Way | 1 | $10.90 | Available to order | 1 |
| 16 | T1241732 Hose, Map Sensor | Hose, Map Sensor | 1 | $10.71 | Available to order | 1 |
| 17 | T1241763 Bracket, Airbox | Bracket, Airbox | 1 | $13.35 | Out of Stock | Notify Me |
| 18 | T3330649 Screw, Pan/Hd, Tx, M5 x 12, Slv | Screw, Pan/Hd, Tx, M5 x 12, Slv | 2 | $5.67 | Available to order | 2 |
| 19 | T1249771 Hose Assembly, Fuel Feed | Hose Assembly, Fuel Feed | 1 | $125.46 | Available to order | 1 |
| 20 | T2040811 Twin Clip, Brake Hose | Twin Clip, Brake Hose | 2 | $2.63 | Available to order | 2 |
| 21 | T1247777 Cover, Fuel Injector | Cover, Fuel Injector | 3 | $9.22 | Out of Stock | Notify Me |
