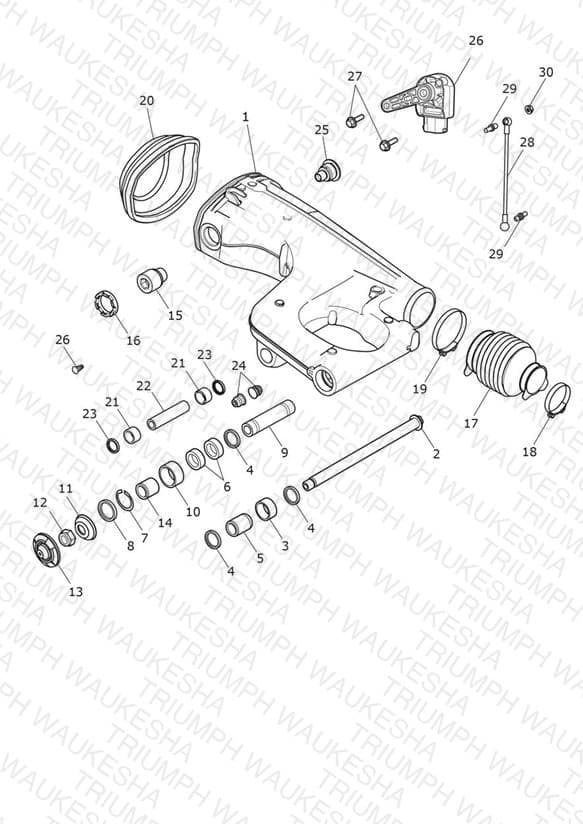

Rear Swingarm
Parts (30)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2050475 Swingarm Spares Assembly | Swingarm Spares Assembly Includes items 3, 4, 6, 7, 8 & 10 | 1 | $2182.86 | Available to order | 1 |
| 2 | T2050446 Spindle, Swingarm | Spindle, Swingarm | 1 | $104.56 | Backorder — Mid August 2026 | 1 |
| 3 | T3800014 Roller bearing | Roller bearing | 1 | $14.32 | Available to order | 1 |
| 4 | T3600162 Oil Seal, 32 25 4 | Oil Seal, 32 25 4 | 3 | $8.53 | Available to order | 3 |
| 5 | T2050468 Sleeve, Ground, 25 x 17 x 41 | Sleeve, Ground, 25 x 17 x 41 | 1 | $40.22 | Available to order | 1 |
| 6 | T3800227 Bearing, Ball, 30 37 9 | Bearing, Ball, 30 37 9 | 2 | $18.96 | Available to order | 2 |
| 7 | T3500087 Circlip, Internal, 37 x 1.5 | Circlip, Internal, 37 x 1.5 | 1 | $16.04 | Available to order | 1 |
| 8 | T3600307 Seal, 28 37 5 | Seal, 28 37 5 | 1 | $12.38 | Available to order | 1 |
| 9 | T2050774 Spacer, Internal | Spacer, Internal | 1 | $42.00 | Available to order | 1 |
| 10 | T3800228 Brg, Needle, Solid, 28 37 20 | Brg, Needle, Solid, 28 37 20 | 1 | $17.28 | Available to order | 1 |
| 11 | T2050469 Adapter, Spindle | Adapter, Spindle | 1 | $17.77 | Available to order | 1 |
| 12 | T3350155 Locknut, Thin, M16 | Locknut, Thin, M16 | 2 | $9.41 | Available to order | 2 |
| 13 | T2050535 Finisher, Swingarm Spindle | Finisher, Swingarm Spindle | 1 | $10.81 | Available to order | 1 |
| 14 | T3010137 Sleeve, Ground, 28 x 17 x 28 | Sleeve, Ground, 28 x 17 x 28 | 1 | $40.22 | Available to order | 1 |
| 15 | T2050502 Pin, Pivot, M36, Hdless | Pin, Pivot, M36, Hdless | 1 | $9.97 | Backorder — Late August 2026 | 1 |
| 16 | T2050910 Lock Ring, M36 | Lock Ring, M36 | 1 | $23.69 | Available to order | 1 |
| 17 | T2050536 Boot, Rubber, Oval | Boot, Rubber, Oval | 1 | $24.60 | Available to order | 1 |
| 18 | T3701050 Band Clamp, 55mm | Band Clamp, 55mm | 1 | $9.97 | Available to order | 1 |
| 19 | T3701060 Band Clamp, 78mm | Band Clamp, 78mm | 1 | $10.28 | Available to order | 1 |
| 20 | T2050185 Rubber Boot, Rear | Rubber Boot, Rear | 1 | $5.02 | Available to order | 1 |
| 21 | T3800199 Bearing, Needle Roller, 20 x 26 x 20 | Bearing, Needle Roller, 20 x 26 x 20 | 2 | $16.50 | Available to order | 2 |
| 22 | T2057399 Sleeve, Ground Steel, 90mm | Sleeve, Ground Steel, 90mm | 1 | $40.22 | Available to order | 1 |
| 23 | T3600178 Seal, 20 x 26 x 4 | Seal, 20 x 26 x 4 | 2 | $7.71 | Available to order | 2 |
| 24 | T3450567 Plug, Barrel, 12.8, Black | Plug, Barrel, 12.8, Black | 2 | $2.00 | Available to order | 2 |
| 25 | T2050666 Pivot Pin, M30 | Pivot Pin, M30 | 1 | $9.97 | Backorder — Early August 2026 | 1 |
| 26 | T2500870 Sensor, Swingarm Position | Sensor, Swingarm Position | 1 | $47.50 | Available to order | 1 |
| 27 | T3050341 Screw, Cap/Hd, M5 x 10, Slv | Screw, Cap/Hd, M5 x 10, Slv | 2 | $3.80 | Backorder — Early September 2026 | 2 |
| 28 | T2050253 Droplink, Position Sensor | Droplink, Position Sensor | 1 | $57.03 | Available to order | 1 |
| 29 | T2050490 Ballstud, Dia 8.0, M6 x 14 | Ballstud, Dia 8.0, M6 x 14 | 2 | $6.07 | Out of Stock | Notify Me |
| 30 | T3350300 Nut, M6 x 1.0, Slv | Nut, M6 x 1.0, Slv | 1 | $0.94 | Available to order | 1 |
