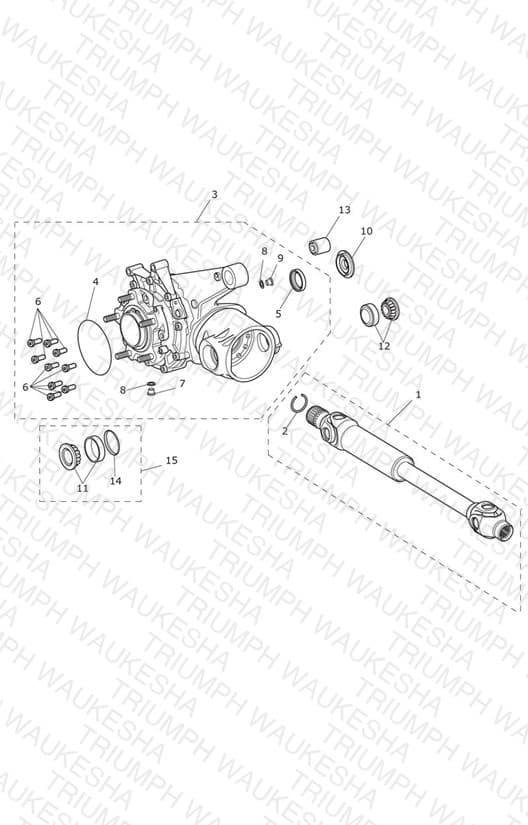

Final Drive Unit
Parts (16)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1270070 Drive Shaft, Metalastic | Drive Shaft, Metalastic | 1 | $545.70 | Available to order | 1 |
| 2 | T3501274 Snap Ring, Int, OD 32 x Dia 2.5 | Snap Ring, Int, OD 32 x Dia 2.5 | 1 | $4.45 | Available to order | 1 |
| 3 | T1270058 Rear Bevel Box Assembly | Rear Bevel Box Assembly | 1 | $2288.51 | Available to order | 1 |
| 4 | T3601271 O Ring, ID 143 x Dian 2.5 | O Ring, ID 143 x Dian 2.5 | 1 | $17.11 | Available to order | 1 |
| 5 | T3601273 Oil Seal, 28 x 40 x 7 | Oil Seal, 28 x 40 x 7 | 1 | $29.25 | Available to order | 1 |
| 6 | T3331279 Bolt, Cap/Hd, TX, M8 x 30 | Bolt, Cap/Hd, TX, M8 x 30 | 9 | $5.30 | Available to order | 9 |
| 7 | T3331271 Bolt, Cap Hd, M14 x 12, Magnet | Bolt, Cap Hd, M14 x 12, Magnet | 1 | $6.07 | Available to order | 1 |
| 8 | T3551272 Washer, Sealing, 14.5 x 20 x 1.4 | Washer, Sealing, 14.5 x 20 x 1.4 | 2 | $2.65 | Available to order | 2 |
| 9 | T3331274 Bolt, Cap Hd, M14 x 12 | Bolt, Cap Hd, M14 x 12 | 1 | $5.88 | Available to order | 1 |
| 10 | T1270052 Cap, Rear Bevel Box, Slotted | Cap, Rear Bevel Box, Slotted | 1 | $8.18 | Out of Stock | Notify Me |
| 11 | T3800420 Bearing/Seal, Taper Roller, 254715 | Bearing/Seal, Taper Roller, 254715 | 1 | $67.47 | Available to order | 1 |
| 12 | T3800062 Bearing/Seal, Taper Roller,174013 | Bearing/Seal, Taper Roller,174013 | 1 | $69.37 | Available to order | 1 |
| 13 | T2056500 Bush, Rubber Mount, 10.2 x 27 x 32 | Bush, Rubber Mount, 10.2 x 27 x 32 | 1 | $18.50 | Available to order | 1 |
| 14 | T3800450 Cap, Bearing, 254715 | Cap, Bearing, 254715 | 1 | $10.63 | Available to order | 1 |
| 15 | T3800440 Bearing/Seal, Taper Roller, Spares | Bearing/Seal, Taper Roller, Spares | 1 | $77.91 | Available to order | 1 |
| 16 | T1276200 Carrier Assembly, Spares Kit | Carrier Assembly, Spares Kit Kit Not Illustrated | 1 | $401.70 | Backorder — Mid August 2026 | 1 |
