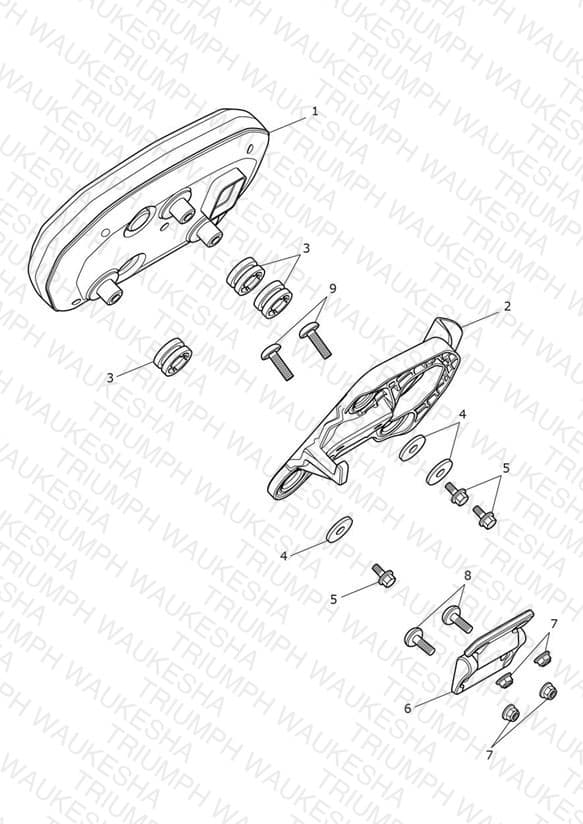

Instruments
Parts (12)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2503541 Instrument Pack, TFT, MPH, UK | Instrument Pack, TFT, MPH, UK UK Only | 1 | $1890.64 | Backorder — Late August 2026 | 1 |
| 1 | T2503542 Instrument Pack, TFT, MPH, US | Instrument Pack, TFT, MPH, US US Only | 1 | $1890.64 | Backorder — Early August 2026 | 1 |
| 1 | T2503543 Instrument Pack, TFT, KMH, EU | Instrument Pack, TFT, KMH, EU All Except UK, US & JP | 1 | $1890.64 | Available to order | 1 |
| 1 | T2503544 Instrument Pack, TFT, KMH, JP | Instrument Pack, TFT, KMH, JP JP Only | 1 | $1890.05 | Backorder — Late August 2026 | 1 |
| 2 | T2307141 Instrument Mount, Moulding | Instrument Mount, Moulding | 1 | $36.21 | Available to order | 1 |
| 3 | T3020056 Grommet, Instruments | Grommet, Instruments | 3 | $3.50 | Available to order | 3 |
| 4 | T3555011 Washer, 6.5 x 20 x 2 | Washer, 6.5 x 20 x 2 | 3 | $0.97 | Available to order | 3 |
| 5 | T3330894 Bolt, RHHF, M5 x 10 | Bolt, RHHF, M5 x 10 | 3 | $6.65 | Available to order | 3 |
| 6 | T2306464 Hinge Assy, Friction | Hinge Assy, Friction | 1 | $70.35 | Available to order | 1 |
| 7 | T3350010 Locknut, Flgd, M5 | Locknut, Flgd, M5 | 4 | $2.25 | Available to order | 4 |
| 8 | T3330941 Screw, But/Hd, Skt, M5 x 16, Slv | Screw, But/Hd, Skt, M5 x 16, Slv | 2 | $6.73 | Available to order | 2 |
| 9 | T3330311 Bolt, RHHF, M5 x 20, Enc | Bolt, RHHF, M5 x 20, Enc | 2 | $0.57 | Available to order | 2 |
