Mounting Kit, Pannier

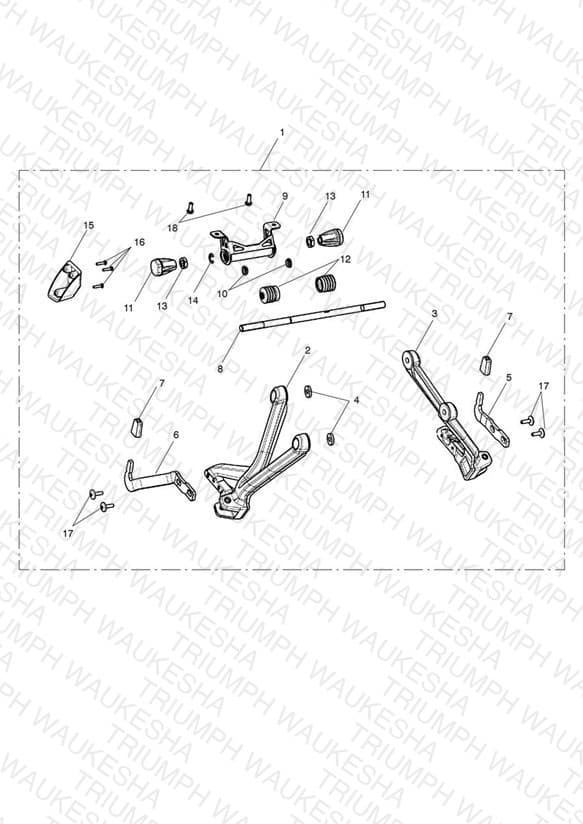

Schematic
Parts (18)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A9508194 Pannier Mounting Kit A9508194 | Pannier Mounting Kit A9508194 PART NO LONGER AVAILABLE - For Adventure Panniers Only | 1 | $425.00 | Obsolete | View Details |
| 2 | T2082166 Footrest Hanger, Rear, RH, Blk | Footrest Hanger, Rear, RH, Blk | 1 | $118.91 | Backorder — Late August 2026 | 1 |
| 3 | T2082167 Footrest Hanger, Rear, LH, Blk | Footrest Hanger, Rear, LH, Blk | 1 | $118.91 | Backorder — Late August 2026 | 1 |
| 4 | T2350184 Spacer, 8.2 x 22 x 4 | Spacer, 8.2 x 22 x 4 | 2 | $8.01 | Available to order | 2 |
| 5 | T2353188 Pannier, 3rd Mount, LH | Pannier, 3rd Mount, LH PART NO LONGER AVAILABLE | 1 | $28.40 | Obsolete | View Details |
| 6 | T2353189 Pannier, 3rd Mount, RH | Pannier, 3rd Mount, RH PART NO LONGER AVAILABLE | 1 | $47.50 | Obsolete | View Details |
| 7 | T2356160 Third Mount Rubber | Third Mount Rubber | 2 | $4.45 | Available to order | 2 |
| 8 | T2353152 Rod, Link Bar | Rod, Link Bar | 1 | $67.91 | Available to order | 1 |
| 9 | T2350151 Bracket, Link Bar | Bracket, Link Bar | 1 | $24.47 | Out of Stock | Notify Me |
| 10 | T3750007 Bush, Plastic, 12 x 2 | Bush, Plastic, 12 x 2 | 2 | $2.85 | Available to order | 2 |
| 11 | T2350006 End Cap, Link Bar | End Cap, Link Bar | 2 | $2.55 | Available to order | 2 |
| 12 | T2356666 Gaiter, Pannier Link Bar | Gaiter, Pannier Link Bar | 2 | $5.70 | Available to order | 2 |
| 13 | T3352000 Thin Nut, M12 x 1.75 | Thin Nut, M12 x 1.75 | 2 | $1.27 | Available to order | 2 |
| 14 | T3500350 Circlip, E Type, Int Dia 9 | Circlip, E Type, Int Dia 9 | 1 | $3.55 | Available to order | 1 |
| 15 | T2353155 Adapter, Moulding | Adapter, Moulding | 1 | $77.87 | Available to order | 1 |
| 16 | T3331432 Screw, Pan/Hd, Torx, M4 x 18, Slv | Screw, Pan/Hd, Torx, M4 x 18, Slv | 3 | $1.06 | Backorder — Mid August 2026 | 3 |
| 17 | T3330727 Screw, But/Hd, M6 x 20, Slv | Screw, But/Hd, M6 x 20, Slv | 4 | $3.39 | Available to order | 4 |
| 18 | T3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv | Screw, Pan/Hd, Tx, M6 x 16, Slv | 2 | $0.97 | Available to order | 2 |
