Tiger 1200 XR

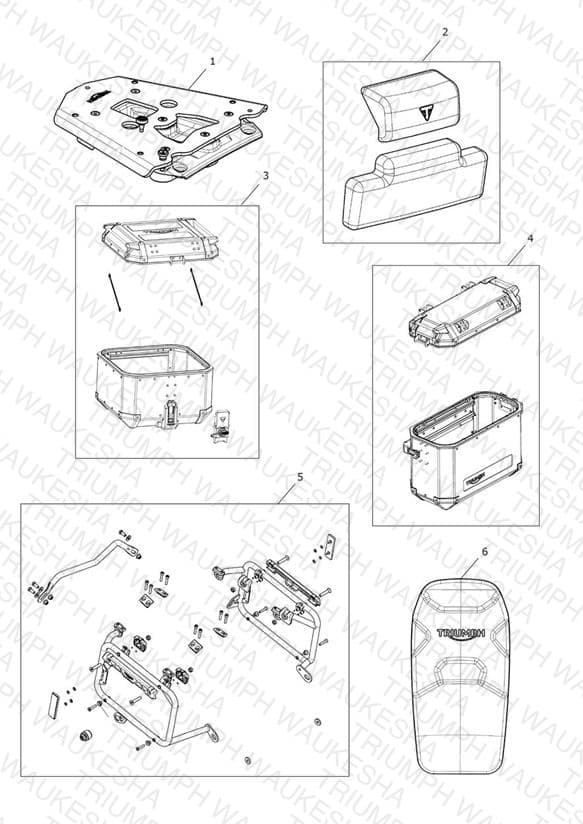

Schematic
Parts (6)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A2353440 Expedition Sliding Carriage Kit | Expedition Sliding Carriage Kit | 1 | $255.00 | Unavailable | View Details |
| 2 | A9500532 Top Box, Back Rest Kit | Top Box, Back Rest Kit | 1 | $124.20 | Available to order | 1 |
| 3 | A9500865 Top Box, Aluminium, Blk, KL | Top Box, Aluminium, Blk, KL | 1 | $510.00 | Available to order | 1 |
| 4 | A9500870 Pannier, Aluminium, Kit, Black, KL | Pannier, Aluminium, Kit, Black, KL PART NO LONGER AVAILABLE | 1 | $1200.00 | Obsolete | View Details |
| 5 | A9508193 Expedition Pannier Mounting Kit | Expedition Pannier Mounting Kit PART NO LONGER AVAILABLE | 1 | $605.00 | Obsolete | View Details |
| 6 | A9790118 Kit, Pad, Fuel Tank, Rubber | Kit, Pad, Fuel Tank, Rubber | 1 | $50.22 | Available to order | 1 |
