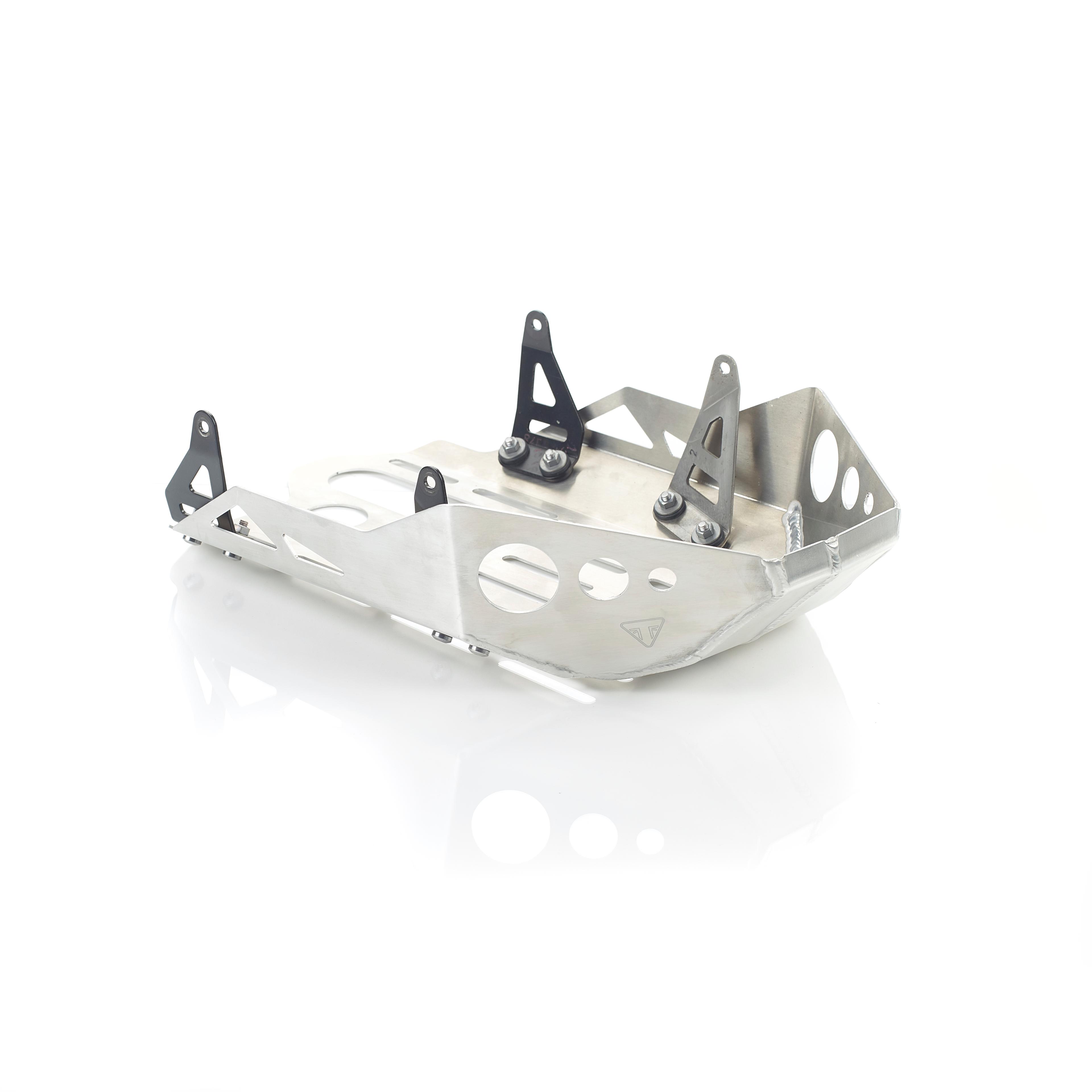

Sumpguard Kit

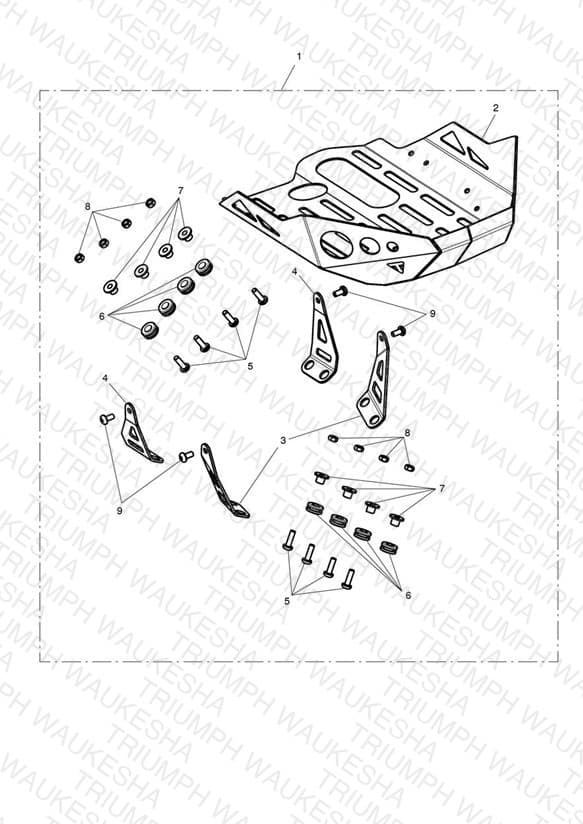

Schematic
Parts (9)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A9708482 Sumpguard Kit | Sumpguard Kit PART NO LONGER AVAILABLE | 1 | $310.00 | Obsolete | View Details |
| 2 | T2307149 Sumpguard, Aluminium | Sumpguard, Aluminium | 1 | $258.54 | Available to order | 1 |
| 3 | T2308377 Bracket, Front, Guard | Bracket, Front, Guard | 2 | $68.42 | Available to order | 2 |
| 4 | T2308378 Bracket, Rear, Guard | Bracket, Rear, Guard | 2 | $68.42 | Available to order | 2 |
| 5 | T3331191 Screw, Pan/Hd, Tx, M6 x 20, Enc | Screw, Pan/Hd, Tx, M6 x 20, Enc | 8 | $2.10 | Available to order | 8 |
| 6 | T3020153 Grommet, 13 x 3 x 10 | Grommet, 13 x 3 x 10 | 8 | $1.91 | Available to order | 8 |
| 7 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 8 | $5.78 | Available to order | 8 |
| 8 | T3350300 Nut, M6 x 1.0, Slv | Nut, M6 x 1.0, Slv | 8 | $0.94 | Available to order | 8 |
| 9 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc | 4 | $1.40 | Available to order | 4 |
