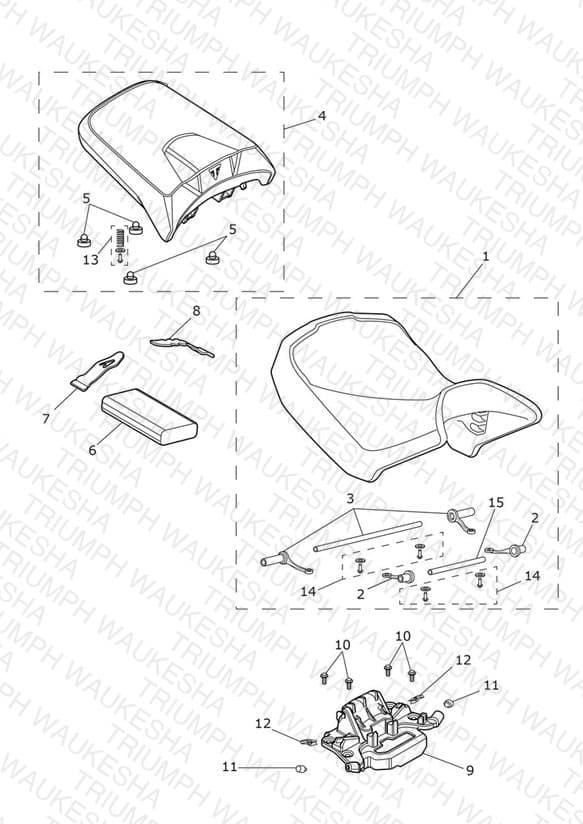

Seat
Parts (17)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2307239 Rider Seat, Assembly | Rider Seat, Assembly | 1 | $292.22 | Available to order | 1 |
| 1 | T2310563 Rider Seat, Assembly, Desert | Rider Seat, Assembly, Desert Desert Edition | 1 | $327.43 | Backorder — Late August 2026 | 1 |
| 2 | T2304379 Seat, Rubber, Front | Seat, Rubber, Front | 2 | $8.18 | Available to order | 2 |
| 3 | T2303066 Seat Rubber Assy | Seat Rubber Assy | 1 | $30.79 | Available to order | 1 |
| 4 | T2307831 Pillion Seat, Assembly | Pillion Seat, Assembly | 1 | $190.11 | Available to order | 1 |
| 4 | T2314513 Pillion Seat, Assembly, Desert | Pillion Seat, Assembly, Desert Desert Edition | 1 | $212.49 | Available to order | 1 |
| 5 | T2307367 Rubber Foot, Seat Base | Rubber Foot, Seat Base | 4 | $4.01 | Available to order | 4 |
| 6 | T2303605 Toolkit, Type W | Toolkit, Type W | 1 | $114.08 | Available to order | 1 |
| 7 | T2305682 Strap, Tool Kit, Female | Strap, Tool Kit, Female | 1 | $11.56 | Available to order | 1 |
| 8 | T2305683 Strap, Tool Kit, Male | Strap, Tool Kit, Male | 1 | $11.56 | Available to order | 1 |
| 9 | T2305946 Seat Bridge, Moulding | Seat Bridge, Moulding | 1 | $40.87 | Out of Stock | Notify Me |
| 10 | T3203222 Bolt, HHF, M6 x 12, Slv | Bolt, HHF, M6 x 12, Slv | 4 | $1.72 | Available to order | 4 |
| 11 | T3021161 Rubber Foot, Dia 14.22 x 7.1 | Rubber Foot, Dia 14.22 x 7.1 | 2 | $2.17 | Available to order | 2 |
| 12 | T3350129 Nut, Captive, M5 | Nut, Captive, M5 | 2 | $3.39 | Available to order | 2 |
| 13 | T2302609 Kit, Pillion Seat | Kit, Pillion Seat | 1 | $11.41 | Available to order | 1 |
| 14 | T2309777 Kit, Rider Seat, Spares | Kit, Rider Seat, Spares | 2 | $6.67 | Available to order | 2 |
| 15 | T2303777 Bar, Front, Rider Seat | Bar, Front, Rider Seat | 1 | $30.70 | Available to order | 1 |
