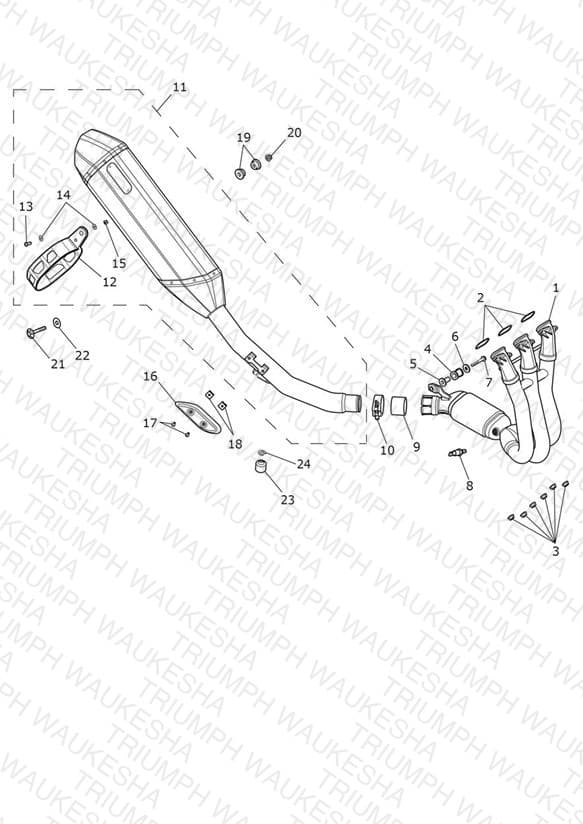

Exhaust System - Desert Edition
Parts (25)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2203390 Header Assembly | Header Assembly All Markets Except AU, NZ & BR | 1 | $1161.82 | Out of Stock | Notify Me |
| 1 | T2203400 Primary Header Pipe Assembly | Primary Header Pipe Assembly AU & NZ Only | 1 | $1161.82 | Available to order | 1 |
| 1 | T2203399 Primary Header Pipe Assembly | Primary Header Pipe Assembly BR Only | 1 | $1161.82 | Out of Stock | Notify Me |
| 2 | T2201997 Gasket, Exhaust Header | Gasket, Exhaust Header | 3 | $10.06 | Available to order | 3 |
| 3 | T3350004 Locknut, Flanged, M8 x 1.25 | Locknut, Flanged, M8 x 1.25 | 6 | $2.45 | Available to order | 6 |
| 4 | T2200912 Rubber Grommet, 7.86mm | Rubber Grommet, 7.86mm | 1 | $3.17 | Available to order | 1 |
| 5 | T3010212 Flanged Sleeve, M8 x 26.6 | Flanged Sleeve, M8 x 26.6 | 1 | $2.48 | Available to order | 1 |
| 6 | T3205109 Bolt, HHF, Lghtd, M8 x 45, Slv | Bolt, HHF, Lghtd, M8 x 45, Slv | 1 | $5.12 | Available to order | 1 |
| 7 | T3555033 Washer, 8.4 x 24 x 2 | Washer, 8.4 x 24 x 2 | 1 | $2.74 | Available to order | 1 |
| 8 | T2204191 Oxygen Sensor Spares Kit | Oxygen Sensor Spares Kit | 1 | $219.06 | Available to order | 1 |
| 9 | T2202115 Gasket, Exhaust Header | Gasket, Exhaust Header | 1 | $12.98 | Available to order | 1 |
| 10 | T2206078 Clamp, Exhaust, Dia 52-54mm | Clamp, Exhaust, Dia 52-54mm | 1 | $20.89 | Available to order | 1 |
| 11 | T2205490 Silencer Assy, Arrow | Silencer Assy, Arrow | 1 | $1276.27 | Available to order | 1 |
| 12 | T9600721 Strap, Carbon, Arrow, Slip-on | Strap, Carbon, Arrow, Slip-on | 1 | $106.79 | Available to order | 1 |
| 13 | A9600410 Screw, But/Hd, M5 x 0.8 x 16, S/S | Screw, But/Hd, M5 x 0.8 x 16, S/S PART NO LONGER AVAILABLE | 1 | $1.00 | Obsolete | View Details |
| 14 | A9500088 Washer, M5 ID 5.3 OD 12.5, FORI | Washer, M5 ID 5.3 OD 12.5, FORI | 2 | $1.62 | Available to order | 2 |
| 15 | A9600411 Locknut, M5 x 0.8, S/S | Locknut, M5 x 0.8, S/S | 1 | $2.70 | Backorder — Late August 2026 | 1 |
| 16 | T2200869 Cover, Secondary, Brushed | Cover, Secondary, Brushed | 1 | $83.67 | Available to order | 1 |
| 17 | T3330356 Screw, M5 x 10, S/S, Enc | Screw, M5 x 10, S/S, Enc | 2 | $6.07 | Available to order | 2 |
| 18 | T3350117 Captive Nut, M6 | Captive Nut, M6 | 2 | $0.13 | Available to order | 2 |
| 19 | T2205410 Flanged Sleeve, M8, Silencer | Flanged Sleeve, M8, Silencer | 2 | $17.11 | Backorder — Mid August 2026 | 2 |
| 21 | T2205403 Screw, Pan/Hd, M8 x 50, Slv | Screw, Pan/Hd, M8 x 50, Slv | 1 | $8.09 | Out of Stock | Notify Me |
| 22 | T3554322 Washer, 8.25 x 28 x 2 | Washer, 8.25 x 28 x 2 | 1 | $2.00 | Available to order | 1 |
| 23 | T2200259 Stop, Centre Stand | Stop, Centre Stand | 1 | $10.18 | Available to order | 1 |
| 24 | T3500044 E Circlip | E Circlip | 1 | $0.97 | Available to order | 1 |
