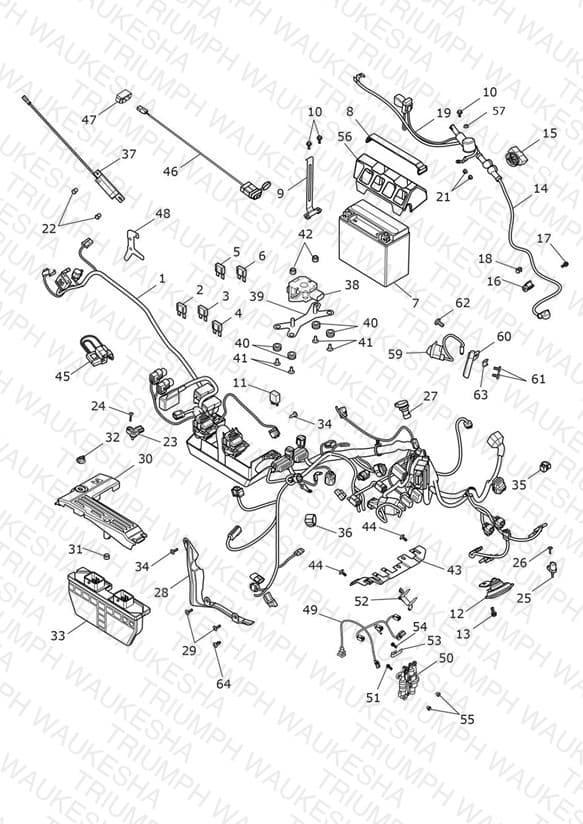

Electrical Equipment
Parts (63)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2501392 Main Harness | Main Harness | 1 | $942.83 | Available to order | 1 |
| 2 | T2501305 Fuse, Mini, 5A | Fuse, Mini, 5A | 1 | $5.05 | Available to order | 1 |
| 3 | T2501320 Fuse, Mini, 20A | Fuse, Mini, 20A | 1 | $5.05 | Available to order | 1 |
| 4 | T2501325 Fuse, Mini, 25A | Fuse, Mini, 25A | 3 | $5.05 | Available to order | 3 |
| 5 | T2501330 Fuse, Mini, 30A | Fuse, Mini, 30A | 1 | $5.05 | Available to order | 1 |
| 6 | T2505035 Fuse 40 amp | Fuse 40 amp | 1 | $1.21 | Available to order | 1 |
| 7 | T2505584 Battery, 12V, 11.2AH, FCB | Battery, 12V, 11.2AH, FCB All Except EF/ER/GR/BR Markets | 1 | $164.38 | Available to order | 1 |
| 7 | T2506214 Kit, Battery, YTZ14S | Kit, Battery, YTZ14S EF/ER/GR Markets Only | 1 | $164.38 | Out of Stock | Notify Me |
| 7 | T2501834 Kit, Battery | Kit, Battery BR Only | 1 | $145.63 | Out of Stock | Notify Me |
| 8 | T2501780 Battery Strap | Battery Strap | 1 | $11.24 | Unavailable | View Details |
| 9 | T2501295 Battery Bracket | Battery Bracket | 1 | $10.02 | Available to order | 1 |
| 10 | T3203222 Bolt, HHF, M6 x 12, Slv | Bolt, HHF, M6 x 12, Slv | 3 | $1.84 | Available to order | 3 |
| 11 | T2507727 Relay, Normally Open | Relay, Normally Open | 6 | $20.87 | Available to order | 6 |
| 12 | T2501643 Horn Assy, Low Tone | Horn Assy, Low Tone | 1 | $67.15 | Available to order | 1 |
| 13 | T3201228 Bolt, HHF, M8 x 14, Slv | Bolt, HHF, M8 x 14, Slv | 1 | $2.91 | Available to order | 1 |
| 14 | T2503572 Starter Lead | Starter Lead | 1 | $75.58 | Available to order | 1 |
| 15 | T1310008 Starter Solenoid Assy | Starter Solenoid Assy | 1 | $71.82 | Available to order | 1 |
| 16 | T3700192 P Clip, ID 8mm | P Clip, ID 8mm | 1 | $11.54 | Available to order | 1 |
| 17 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc | 1 | $1.50 | Available to order | 1 |
| 18 | T3700061 Clip, Cable Double | Clip, Cable Double | 1 | $5.65 | Available to order | 1 |
| 19 | T2501757 Battery Lead | Battery Lead Includes 40A Fuse | 1 | $36.56 | Out of Stock | Notify Me |
| 21 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 2 | $0.71 | Available to order | 2 |
| 22 | T3701150 Plastic Rivet, Push Release | Plastic Rivet, Push Release | 2 | $1.04 | Available to order | 2 |
| 23 | T1290975 Air Pressure Sensor | Air Pressure Sensor | 1 | $139.14 | Available to order | 1 |
| 24 | T3332464 Screw, S/Tap, Tx, 5 x 25 | Screw, S/Tap, Tx, 5 x 25 | 1 | $2.31 | Available to order | 1 |
| 25 | T1290088 Sensor, Air Temperature | Sensor, Air Temperature | 1 | $63.55 | Available to order | 1 |
| 26 | T3331414 Screw, S/Tap, Tx, 5 x 16 | Screw, S/Tap, Tx, 5 x 16 | 1 | $1.61 | Available to order | 1 |
| 27 | T2505075 Socket, Auxillary Power | Socket, Auxillary Power | 2 | $58.76 | Available to order | 2 |
| 28 | T2503600 Cable, Tidy, Sump | Cable, Tidy, Sump | 1 | $9.82 | Backorder — Late September 2026 | 1 |
| 30 | T2500844 Cover, CCU | Cover, CCU | 1 | $15.44 | Available to order | 1 |
| 31 | T3021161 Rubber Foot, Dia 14.22 x 7.1 | Rubber Foot, Dia 14.22 x 7.1 | 1 | $2.31 | Available to order | 1 |
| 32 | T3351100 Wingnut, M6, Plastic | Wingnut, M6, Plastic | 1 | $3.54 | Available to order | 1 |
| 33 | T2504262 Kit, CCU & Cut Keys, RF434 | Kit, CCU & Cut Keys, RF434 All Except JP & BR | 1 | $2055.50 | Available to order | 1 |
| 33 | T2504260 Kit, CCU & Cut Keys, RF315 | Kit, CCU & Cut Keys, RF315 JP Only | 1 | $2683.52 | Out of Stock | Notify Me |
| 33 | T2504264 Kit, CCU & Cut Keys, BR | Kit, CCU & Cut Keys, BR BR Only | 1 | $2973.63 | Out of Stock | Notify Me |
| 34 | T3701170 Plastic Rivet, Screw Type | Plastic Rivet, Screw Type | 2 | $1.29 | Available to order | 2 |
| 35 | T2504512 S Clip, 3.5 - 4.5 | S Clip, 3.5 - 4.5 | 1 | $8.71 | Available to order | 1 |
| 36 | T3700222 Clip, Cable, Dia 25mm, BLK | Clip, Cable, Dia 25mm, BLK | 1 | $3.93 | Available to order | 1 |
| 37 | T2502182 Antenna, LF | Antenna, LF | 1 | $25.23 | Available to order | 1 |
| 38 | T2508040 Inertial Measurement Unit | Inertial Measurement Unit | 1 | $453.28 | Available to order | 1 |
| 39 | T2508510 Plate, IMU | Plate, IMU | 1 | $16.84 | Available to order | 1 |
| 40 | T3021221 Grommet, ID 8.5, OD 10.5 | Grommet, ID 8.5, OD 10.5 | 4 | $2.91 | Available to order | 4 |
| 41 | T3331436 Screw, S/Tap, Pan, Torx, 4 x 11, PT | Screw, S/Tap, Pan, Torx, 4 x 11, PT | 4 | $0.81 | Available to order | 4 |
| 43 | T2501344 Bracket, Harness Connectors | Bracket, Harness Connectors | 1 | $7.18 | Out of Stock | Notify Me |
| 44 | T3330943 Screw, But/Hd, M5 x 14, Slv | Screw, But/Hd, M5 x 14, Slv | 2 | $5.24 | Backorder — Late October 2026 | 2 |
| 45 | T2503436 Auxiliary Fly Lead, Japan | Auxiliary Fly Lead, Japan JP Only | 1 | $26.29 | Available to order | 1 |
| 46 | T2501422 Charger, USB, 5V, 170mm | Charger, USB, 5V, 170mm | 1 | $40.59 | Available to order | 1 |
| 47 | T2501421 Rubber Band, USB | Rubber Band, USB | 1 | $10.84 | Backorder — Late September 2026 | 1 |
| 48 | T2507722 Bracket, USB Connector | Bracket, USB Connector | 1 | $16.48 | Out of Stock | Notify Me |
| 49 | T2503577 Engine Subharness | Engine Subharness | 1 | $95.18 | Available to order | 1 |
| 50 | T2501069 Moulding, Crankcase Tidy | Moulding, Crankcase Tidy | 1 | $11.21 | Backorder — Late September 2026 | 1 |
| 51 | T3205064 Bolt, RHHF, Domed, S/S, M6 x 16, Enc | Bolt, RHHF, Domed, S/S, M6 x 16, Enc | 1 | $4.27 | Available to order | 1 |
| 52 | T2500702 Solenoid Bracket | Solenoid Bracket | 1 | $7.08 | Out of Stock | Notify Me |
| 53 | T2503579 Bracket, Sub-Harness Connector | Bracket, Sub-Harness Connector | 1 | $16.84 | Out of Stock | Notify Me |
| 55 | T3010062 Flanged Sleeve, M6 x 7.8 x 2.85 | Flanged Sleeve, M6 x 7.8 x 2.85 | 2 | $7.60 | Available to order | 2 |
| 56 | T2501806 Spacer, Battery Moulding | Spacer, Battery Moulding | 1 | $3.45 | Out of Stock | Notify Me |
| 57 | T3350305 Locknut, Flgd, M6 x 1.0, Slv | Locknut, Flgd, M6 x 1.0, Slv | 1 | $2.04 | Available to order | 1 |
| 59 | T2502214 Switch, Rotational | Switch, Rotational US & CA Only | 1 | $87.69 | Available to order | 1 |
| 60 | T2501591 Bracket, Rotational Switch | Bracket, Rotational Switch US & CA Only | 1 | $6.15 | Available to order | 1 |
| 62 | T3330945 Screw, But/Hd, M5 x 16, Blk | Screw, But/Hd, M5 x 16, Blk US & CA Only | 1 | $9.00 | Available to order | 1 |
| 63 | T3350161 Nut, Captive, M5 | Nut, Captive, M5 US & CA Only | 1 | $4.84 | Available to order | 1 |
| 64 | T3450290 Fir Tree, M5, Dia 12.1 x 15 | Fir Tree, M5, Dia 12.1 x 15 | 1 | $1.51 | Available to order | 1 |
| 65 | T2505825 Link, Rotational Switch | Link, Rotational Switch Not illustrated | 1 | $23.77 | Out of Stock | Notify Me |
