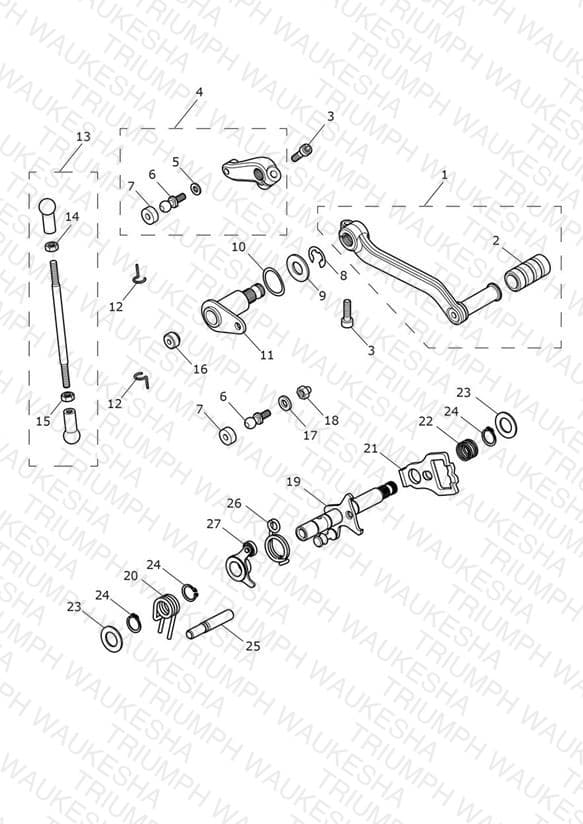

Gear Change Mechanism - N/A to Alpine Edition
Parts (27)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2081811 Pedal Assy, Gearchange | Pedal Assy, Gearchange | 1 | $173.42 | Out of Stock | Notify Me |
| 2 | T2080529 Rubber, Gearchange Pedal | Rubber, Gearchange Pedal | 1 | $8.01 | Available to order | 1 |
| 3 | T3050334 Screw, Cap/Hd, M6 x 20, Slv | Screw, Cap/Hd, M6 x 20, Slv | 2 | $1.51 | Available to order | 2 |
| 4 | T2081817 Clamp, Linkage Assy | Clamp, Linkage Assy | 1 | $119.76 | Available to order | 1 |
| 5 | T2082937 Washer, 6.4 x 11 x 1.6 | Washer, 6.4 x 11 x 1.6 | 1 | $1.28 | Available to order | 1 |
| 6 | T2082155 Ball, Ball Joint | Ball, Ball Joint | 2 | $10.63 | Available to order | 2 |
| 7 | T2086072 Seal, Ball Joint | Seal, Ball Joint | 2 | $7.66 | Available to order | 2 |
| 8 | T3500094 E-Circlip, Internal Dia 10 | E-Circlip, Internal Dia 10 | 1 | $2.48 | Available to order | 1 |
| 9 | T3501795 Washer, M12, OD26, Hardened, Slv | Washer, M12, OD26, Hardened, Slv | 1 | $2.25 | Backorder — Late August 2026 | 1 |
| 10 | T3550950 Wavy Washer | Wavy Washer | 1 | $4.12 | Available to order | 1 |
| 11 | T2081919 Pivot Arm, Gearchange | Pivot Arm, Gearchange | 1 | $40.22 | Available to order | 1 |
| 12 | T2086073 Clip, Ball Joint | Clip, Ball Joint | 2 | $2.37 | Available to order | 2 |
| 13 | T2081597 Rod, Gearchange Assy, Black | Rod, Gearchange Assy, Black | 1 | $36.42 | Available to order | 1 |
| 14 | T3350307 Nut, M6, LH, Black | Nut, M6, LH, Black | 1 | $1.51 | Available to order | 1 |
| 15 | T3350306 Nut, M6, Black | Nut, M6, Black | 1 | $1.51 | Available to order | 1 |
| 16 | T3021161 Rubber Foot, Dia 14.22 x 7.1 | Rubber Foot, Dia 14.22 x 7.1 | 1 | $2.17 | Available to order | 1 |
| 17 | T3552004 Washer, M6 x 14 x 2 | Washer, M6 x 14 x 2 | 1 | $1.91 | Available to order | 1 |
| 18 | T3350305 Locknut, Flgd, M6 x 1.0, Slv | Locknut, Flgd, M6 x 1.0, Slv | 1 | $1.91 | Available to order | 1 |
| 19 | T1194444 Shaft Assy, Pivot Gearchange | Shaft Assy, Pivot Gearchange | 1 | $195.81 | Available to order | 1 |
| 20 | T1191207 Spring, Gearchange Return | Spring, Gearchange Return | 1 | $5.60 | Available to order | 1 |
| 21 | T1191200 Plate, Pivot | Plate, Pivot | 1 | $35.55 | Available to order | 1 |
| 22 | T1192521 Spring, Coil, Pivot Plate | Spring, Coil, Pivot Plate | 1 | $10.90 | Available to order | 1 |
| 23 | T3550444 Washer, 15.5 x 25 | Washer, 15.5 x 25 | 2 | $1.78 | Available to order | 2 |
| 24 | T3502535 Circlip, Din 471, Dia. 14.0 | Circlip, Din 471, Dia. 14.0 | 3 | $1.91 | Available to order | 3 |
| 25 | T1191189 Abutment Pin, Dowel, Dia 8mm | Abutment Pin, Dowel, Dia 8mm | 1 | $19.37 | Available to order | 1 |
| 26 | T1191513 Spring, Detent, Torsion | Spring, Detent, Torsion | 1 | $3.24 | Available to order | 1 |
| 27 | T1192122 Detent Arm, Assembly | Detent Arm, Assembly | 1 | $22.72 | Available to order | 1 |
