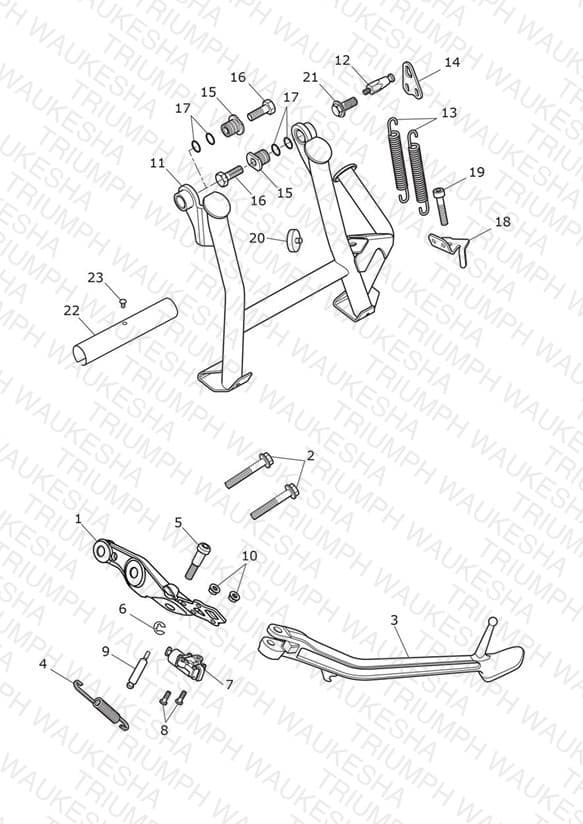

Stands - N/A to Low Ride Height Version
Parts (25)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2081592 Sidestand Bracket | Sidestand Bracket | 1 | $195.81 | Out of Stock | Notify Me |
| 2 | T3205760 Bolt, HHF, Lghtd, M10 x 60, Slv | Bolt, HHF, Lghtd, M10 x 60, Slv | 2 | $6.14 | Available to order | 2 |
| 3 | T2082361 Sidestand Leg Assy, Black | Sidestand Leg Assy, Black | 1 | $190.11 | Available to order | 1 |
| 4 | T2080808 Spring, Sidestand | Spring, Sidestand | 1 | $10.63 | Available to order | 1 |
| 5 | T2084020 Pin, Pivot, Sidestand | Pin, Pivot, Sidestand > 880410 All Except BR & > 880693 BR Only | 1 | $7.02 | Available to order | 1 |
| 5 | T2084022 Pivot Pin Spares Kit | Pivot Pin Spares Kit 880411 > All Except BR & 880694 > BR Only | 1 | $14.80 | Available to order | 1 |
| 6 | T3500210 Circlip, Ext, 8 x 1 | Circlip, Ext, 8 x 1 > 880410 All Except BR & > 880693 BR Only | 1 | $2.14 | Available to order | 1 |
| 6 | T3500350 Circlip, E Type, Int Dia 9 | Circlip, E Type, Int Dia 9 880411 > All Except BR & 880694 > BR Only | 1 | $3.55 | Available to order | 1 |
| 7 | T2080746 Sidestand Switch | Sidestand Switch | 1 | $60.87 | Available to order | 1 |
| 8 | T3050346 Screw, Cap/Hd, M5 x 20, Slv | Screw, Cap/Hd, M5 x 20, Slv | 2 | $2.48 | Available to order | 2 |
| 9 | T2082049 Peg, Spring Retainer | Peg, Spring Retainer | 1 | $11.56 | Available to order | 1 |
| 10 | T3350010 Locknut, Flgd, M5 | Locknut, Flgd, M5 | 2 | $2.25 | Available to order | 2 |
| 11 | T2081358 Centrestand Assy | Centrestand Assy | 1 | $269.95 | Available to order | 1 |
| 12 | T2081970 Pin, Centrestand Spring | Pin, Centrestand Spring | 1 | $16.74 | Available to order | 1 |
| 13 | T2080793 Spring, Centrestand | Spring, Centrestand | 2 | $8.18 | Available to order | 2 |
| 14 | T2080811 Bracket, Centrestand Spring | Bracket, Centrestand Spring | 1 | $22.72 | Available to order | 1 |
| 15 | T2083340 Boss, Pivot, Centrestand | Boss, Pivot, Centrestand | 2 | $35.96 | Available to order | 2 |
| 16 | T3332162 Screw, M10 X 30, Enc | Screw, M10 X 30, Enc | 2 | $6.55 | Available to order | 2 |
| 17 | T3606360 O Ring, 14.1 x 1.6 | O Ring, 14.1 x 1.6 | 4 | $2.10 | Available to order | 4 |
| 18 | T2081147 Bracket, Centrestand Spring | Bracket, Centrestand Spring | 1 | $21.86 | Available to order | 1 |
| 19 | T3051043 Screw, Cap/Hd, M8 x 45 | Screw, Cap/Hd, M8 x 45 | 1 | $6.65 | Available to order | 1 |
| 20 | T2087100 Up Stop, Centrestand | Up Stop, Centrestand | 1 | $14.89 | Available to order | 1 |
| 21 | T3205156 Bolt, HHF, Lghtd, M8 x 16, Slv | Bolt, HHF, Lghtd, M8 x 16, Slv | 1 | $1.62 | Available to order | 1 |
| 22 | T2081346 Cover, Tubular, Plastic | Cover, Tubular, Plastic | 1 | $22.25 | Available to order | 1 |
| 23 | T3300008 Rivet, Barbed, 2.1-4.3mm | Rivet, Barbed, 2.1-4.3mm | 1 | $10.18 | Available to order | 1 |
