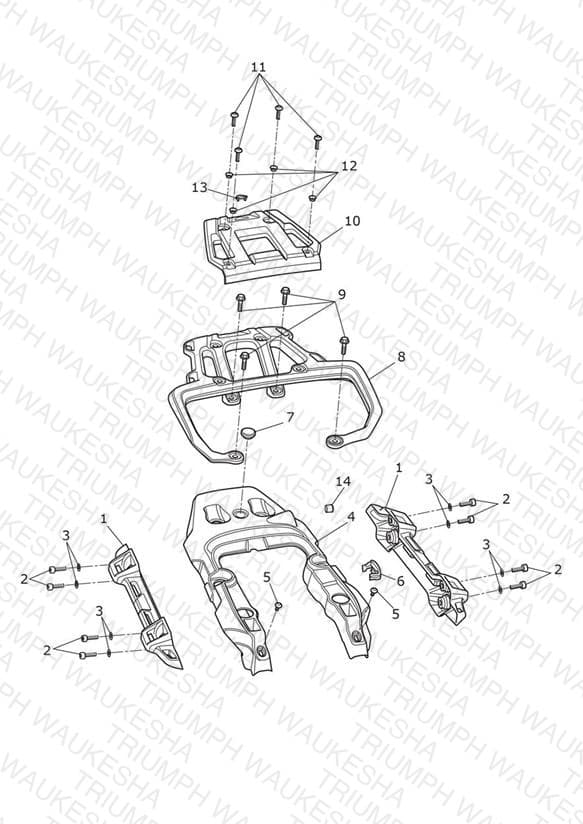

Rear Rack
Parts (14)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2303911 Pannier Rail, Black | Pannier Rail, Black | 2 | $72.75 | Available to order | 2 |
| 2 | T3051097 Screw, Cap/Hd, M8 x 25, Silver | Screw, Cap/Hd, M8 x 25, Silver | 8 | $4.38 | Available to order | 8 |
| 3 | T3551282 Washer, M8, 8.4 x 15 x 1.6, Slv | Washer, M8, 8.4 x 15 x 1.6, Slv | 8 | $3.61 | Available to order | 8 |
| 4 | T2303355 Tail Panel Moulding | Tail Panel Moulding | 1 | $371.69 | Available to order | 1 |
| 5 | T3330941 Screw, But/Hd, Skt, M5 x 16, Slv | Screw, But/Hd, Skt, M5 x 16, Slv | 2 | $7.18 | Available to order | 2 |
| 6 | T2307136 Blank Plug, Switch | Blank Plug, Switch | 1 | $1.18 | Available to order | 1 |
| 7 | T3450067 Bung | Bung | 1 | $11.12 | Out of Stock | Notify Me |
| 8 | T2303912 Luggage Rack, Black | Luggage Rack, Black | 1 | $245.32 | Available to order | 1 |
| 9 | T3205781 Bolt, HHF, Lghtd, M8 x 1.25 x 25, Slv | Bolt, HHF, Lghtd, M8 x 1.25 x 25, Slv | 4 | $1.73 | Available to order | 4 |
| 10 | T2304993 Cover Panel, Rack, Moulding | Cover Panel, Rack, Moulding | 1 | $67.15 | Available to order | 1 |
| 11 | T3330231 Screw, Lge Skt Hd, M6 X 1 X 25 | Screw, Lge Skt Hd, M6 X 1 X 25 | 4 | $14.01 | Available to order | 4 |
| 12 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 4 | $0.71 | Available to order | 4 |
| 13 | T3951015 Badge, Symbol, Type 1 | Badge, Symbol, Type 1 | 1 | $18.83 | Available to order | 1 |
| 14 | T3451400 Plug, Dia 17.5mm | Plug, Dia 17.5mm | 1 | $2.24 | Available to order | 1 |
