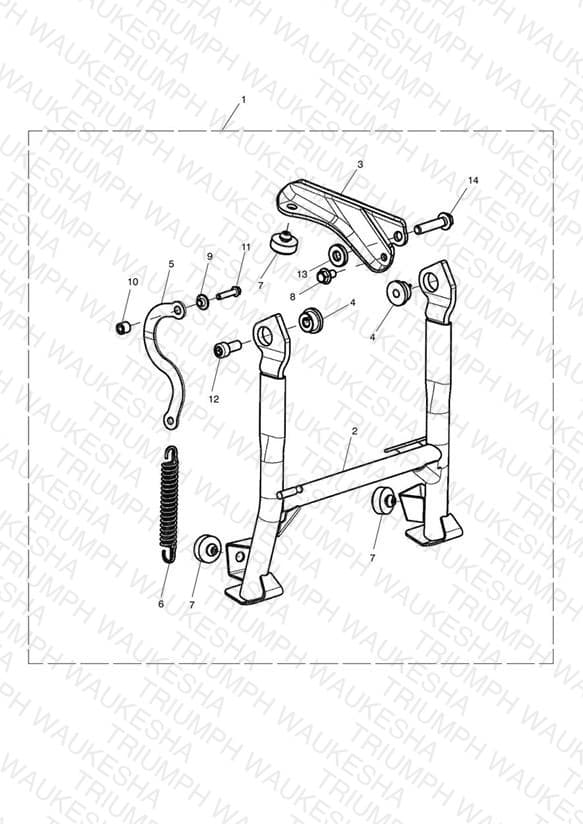

Centrestand Kit, Short
Parts (15)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A9778004 Centrestand Kit Replaced by A9778062 — Centrestand Kit, Short | Centrestand Kit Replaced by A9778062 | 1 | $275.00 | Unavailable | View Details |
| 1 | A9778062 Centrestand Kit, Short | Centrestand Kit, Short | 1 | $270.00 | Obsolete | View Details |
| 2 | T2081969 Centrestand Assy, Short | Centrestand Assy, Short | 1 | $168.00 | Obsolete | View Details |
| 3 | T2081991 Bracket, Upstop | Bracket, Upstop | 1 | $14.35 | Available to order | 1 |
| 4 | T2081904 Top Hat, M10, Centrestand | Top Hat, M10, Centrestand | 2 | $9.15 | Available to order | 2 |
| 5 | T2081907 S Bracket, Centrestand | S Bracket, Centrestand | 1 | $20.31 | Available to order | 1 |
| 6 | T2081777 Spring, Centrestand | Spring, Centrestand | 1 | $7.38 | Available to order | 1 |
| 7 | T2081928 Up Stop, Centrestand | Up Stop, Centrestand | 3 | $5.70 | Available to order | 3 |
| 8 | T3201228 Bolt, HHF, M8 x 14, Slv | Bolt, HHF, M8 x 14, Slv | 1 | $2.74 | Available to order | 1 |
| 9 | T3010703 Flanged Sleeve, M6 | Flanged Sleeve, M6 | 1 | $7.14 | Available to order | 1 |
| 10 | T2043713 Spacer, Bar End, Aluminium | Spacer, Bar End, Aluminium | 1 | $3.33 | Available to order | 1 |
| 11 | T3331041 Screw, Pan/Hd, Tx, M6 x 25, Enc | Screw, Pan/Hd, Tx, M6 x 25, Enc | 1 | $1.06 | Available to order | 1 |
| 12 | T3050402 Screw, Cap HD, M10 x 23, Slv | Screw, Cap HD, M10 x 23, Slv | 1 | $6.39 | Available to order | 1 |
| 13 | T2081906 Spacer, Centrestand | Spacer, Centrestand | 1 | $4.33 | Available to order | 1 |
| 14 | T3205825 Bolt, HHF, Lghtd, M10 x 45, Slv | Bolt, HHF, Lghtd, M10 x 45, Slv | 1 | $6.83 | Available to order | 1 |
