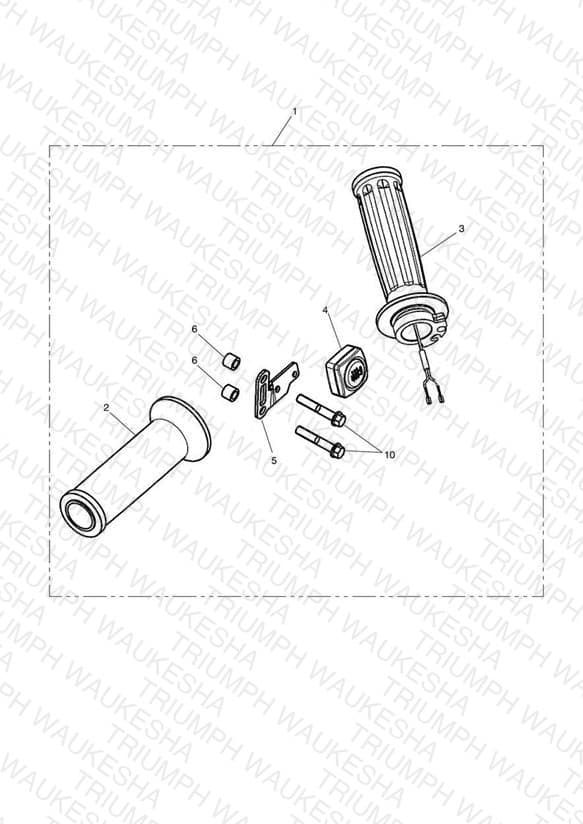

Heated Grip Kit
Parts (11)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A9638126 Heated Grip Kit | Heated Grip Kit | 1 | $82.00 | Obsolete | View Details |
| 2 | T2046796 Grip, Heated, LH | Grip, Heated, LH | 1 | $79.00 | Obsolete | View Details |
| 3 | T2046797 Grip, Heated, RH | Grip, Heated, RH | 1 | $79.00 | Obsolete | View Details |
| 4 | T2500843 Switch, Heated Grips | Switch, Heated Grips | 1 | $32.00 | Obsolete | View Details |
| 5 | A9630141 Bracket, Heated Grip Switch | Bracket, Heated Grip Switch | 1 | $6.20 | Obsolete | View Details |
| 6 | A9910877 Spacer, 6.3 x 10 x 8 | Spacer, 6.3 x 10 x 8 | 2 | $5.94 | Available to order | 2 |
| 7 | A9630126 Sub Harness, Heated Grips | Sub Harness, Heated Grips | 1 | $31.32 | Obsolete | View Details |
| 8 | T2507727 Relay, Normally Open | Relay, Normally Open | 1 | $20.12 | Available to order | 1 |
| 10 | A9910186 Bolt, Domed, RHHF, M6 x 35 | Bolt, Domed, RHHF, M6 x 35 | 2 | $9.18 | Available to order | 2 |
| 11 | A9630002 Conpack H/Grip | Conpack H/Grip | 2 | $1.20 | Obsolete | View Details |
| 12 | T3700015 Cable Tie, 185.7 Long | Cable Tie, 185.7 Long | 8 | $0.89 | Available to order | 8 |
