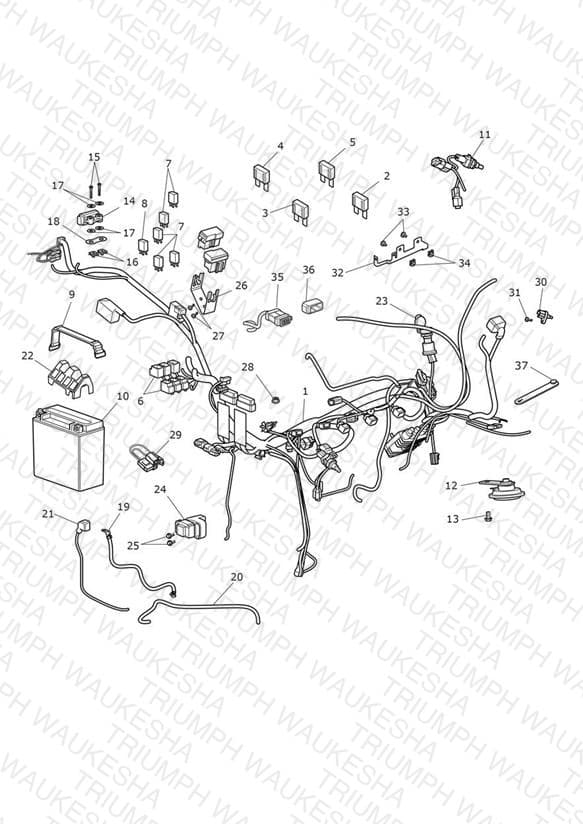

Electrical Equipment
Parts (39)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2507814 Main Harness | Main Harness | 1 | $818.56 | Backorder — Early August 2026 | 1 |
| 2 | T2501305 Fuse, Mini, 5A | Fuse, Mini, 5A | 1 | $4.74 | Available to order | 1 |
| 3 | T2501310 Fuse, Mini, 10A | Fuse, Mini, 10A | 3 | $4.74 | Out of Stock | Notify Me |
| 4 | T2501315 Fuse, Mini, 15A | Fuse, Mini, 15A | 3 | $4.74 | Available to order | 3 |
| 5 | T2501320 Fuse, Mini, 20A | Fuse, Mini, 20A | 4 | $4.74 | Available to order | 4 |
| 6 | T2506025 Relay, Grommet | Relay, Grommet | 6 | $4.45 | Available to order | 6 |
| 7 | T2507727 Relay, Normally Open | Relay, Normally Open | 5 | $20.12 | Available to order | 5 |
| 8 | T2507728 Relay, Changeover | Relay, Changeover | 1 | $18.50 | Available to order | 1 |
| 9 | T2501789 Battery Strap | Battery Strap | 1 | $10.55 | Available to order | 1 |
| 10 | T2505584 Battery, 12V, 11.2AH, FCB | Battery, 12V, 11.2AH, FCB All Except EF/ER/GR/BR Markets | 1 | $170.71 | Available to order | 1 |
| 10 | T2506214 Kit, Battery, YTZ14S | Kit, Battery, YTZ14S EF/ER/GR Markets Only | 1 | $170.71 | Backorder — Late August 2026 | 1 |
| 10 | T2501834 Kit, Battery | Kit, Battery BR Only | 1 | $151.24 | Out of Stock | Notify Me |
| 11 | T2507820 Subharness, Engine | Subharness, Engine | 1 | $93.14 | Available to order | 1 |
| 12 | T2500113 Horn Assembly, Hi Tone | Horn Assembly, Hi Tone | 1 | $41.82 | Available to order | 1 |
| 13 | T3201228 Bolt, HHF, M8 x 14, Slv | Bolt, HHF, M8 x 14, Slv | 1 | $2.74 | Available to order | 1 |
| 14 | T2502405 Switch, Fall Detection | Switch, Fall Detection | 1 | $78.95 | Available to order | 1 |
| 15 | T3330390 Screw, H/Hd, M4 x 25, Slv, Enc | Screw, H/Hd, M4 x 25, Slv, Enc | 2 | $2.74 | Available to order | 2 |
| 16 | T3351093 Nut, Captive, M4 | Nut, Captive, M4 | 2 | $4.55 | Available to order | 2 |
| 17 | T3551066 Washer, 4.3 x 12.0 x 1.0 | Washer, 4.3 x 12.0 x 1.0 | 4 | $1.62 | Available to order | 4 |
| 18 | T3550740 Plate, Roll Over Switch | Plate, Roll Over Switch | 1 | $16.15 | Out of Stock | Notify Me |
| 19 | T2505079 Earth Lead | Earth Lead | 1 | $10.28 | Out of Stock | Notify Me |
| 20 | T2505099 Starter Lead | Starter Lead | 1 | $71.29 | Out of Stock | Notify Me |
| 21 | T2505089 Lead, Battery Positive | Lead, Battery Positive | 1 | $39.06 | Out of Stock | Notify Me |
| 22 | T2505088 Battery Spacer | Battery Spacer | 1 | $13.99 | Available to order | 1 |
| 23 | T2505075 Socket, Auxillary Power | Socket, Auxillary Power | 1 | $59.87 | Available to order | 1 |
| 24 | T1310120 Starter, Solenoid, Fused | Starter, Solenoid, Fused | 1 | $62.35 | Available to order | 1 |
| 25 | T3205077 Bolt, HHF, Lghtd, M6 x 8, Slv | Bolt, HHF, Lghtd, M6 x 8, Slv | 2 | $4.88 | Available to order | 2 |
| 26 | T2506523 Fusebox Bracket | Fusebox Bracket | 1 | $13.61 | Backorder — Late August 2026 | 1 |
| 27 | T3300001 Pop Rivet | Pop Rivet | 2 | $1.13 | Available to order | 2 |
| 28 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 1 | $0.67 | Available to order | 1 |
| 29 | T2503436 Auxiliary Fly Lead, Japan | Auxiliary Fly Lead, Japan JP Only | 1 | $25.34 | Available to order | 1 |
| 30 | T1290088 Sensor, Air Temperature | Sensor, Air Temperature | 1 | $64.75 | Available to order | 1 |
| 31 | T3050342 Screw, Cap/Hd, M5 x 16, Slv | Screw, Cap/Hd, M5 x 16, Slv | 1 | $2.85 | Available to order | 1 |
| 32 | T2501407 Bracket, Harness | Bracket, Harness Part No Longer Available | 1 | $15.44 | Obsolete | View Details |
| 33 | T3330891 Bolt, RHHF, M5 x 0.8 x 12, S5041 | Bolt, RHHF, M5 x 0.8 x 12, S5041 | 2 | $3.24 | Available to order | 2 |
| 34 | T3350129 Nut, Captive, M5 | Nut, Captive, M5 | 2 | $3.39 | Available to order | 2 |
| 35 | T2501422 Charger, USB, 5V, 170mm | Charger, USB, 5V, 170mm | 1 | $40.59 | Available to order | 1 |
| 36 | T2501421 Rubber Band, USB | Rubber Band, USB | 1 | $10.18 | Backorder — Late August 2026 | 1 |
| 37 | T3700252 Rubber Band, 88mm | Rubber Band, 88mm | 1 | $9.59 | Available to order | 1 |
