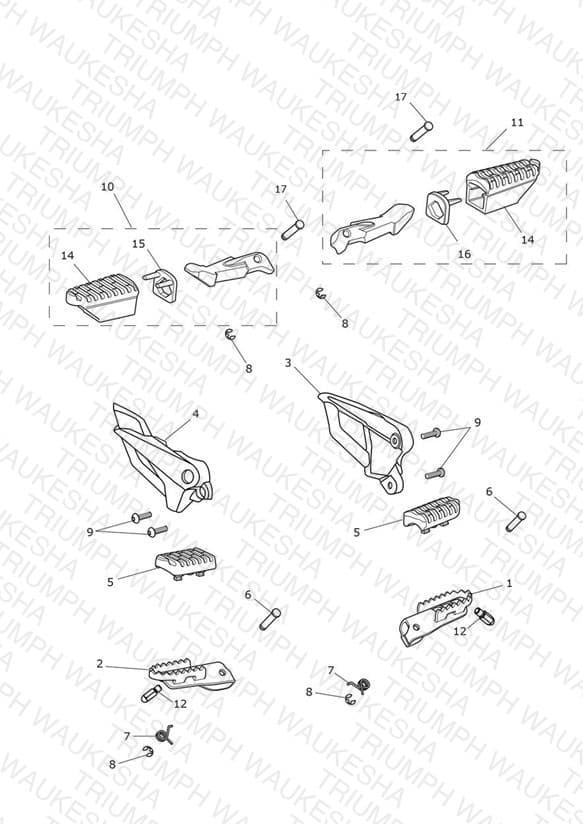

Footrests & Mountings
Parts (16)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2085146 Footpeg, LH, Front | Footpeg, LH, Front | 1 | $72.26 | Available to order | 1 |
| 2 | T2085145 Footpeg, RH, Front | Footpeg, RH, Front | 1 | $69.35 | Available to order | 1 |
| 3 | T2085500 Heelguard, LHS | Heelguard, LHS | 1 | $116.80 | Available to order | 1 |
| 4 | T2085520 Heelguard, RH | Heelguard, RH | 1 | $115.97 | Available to order | 1 |
| 5 | T2085119 Footrest, Rubber | Footrest, Rubber | 2 | $12.55 | Available to order | 2 |
| 6 | T2080547 Pivot pin | Pivot pin | 2 | $6.55 | Available to order | 2 |
| 7 | T2081031 Return Spring, Footrest | Return Spring, Footrest | 2 | $7.14 | Backorder — Early September 2026 | 2 |
| 8 | T3500207 Circlip, Ext 8 X 0.89 | Circlip, Ext 8 X 0.89 | 4 | $2.85 | Available to order | 4 |
| 9 | T3335011 Screw, But/Hd, Tx, M8 x 20 | Screw, But/Hd, Tx, M8 x 20 | 4 | $3.50 | Available to order | 4 |
| 10 | T2084401 Rear Footrest Assy, RH | Rear Footrest Assy, RH | 1 | $69.35 | Available to order | 1 |
| 11 | T2084402 Rear Footrest Assy, LH | Rear Footrest Assy, LH | 1 | $69.35 | Available to order | 1 |
| 12 | T2085140 Peg, Bank Angle, 30mm | Peg, Bank Angle, 30mm | 2 | $14.07 | Available to order | 2 |
| 14 | T2084405 Footrest Rubber | Footrest Rubber | 2 | $13.61 | Available to order | 2 |
| 15 | T2084407 Rear Footrest Detent Plate, RH | Rear Footrest Detent Plate, RH | 1 | $6.39 | Available to order | 1 |
| 16 | T2084408 Rear Footrest Detent Plate, LH | Rear Footrest Detent Plate, LH | 1 | $6.39 | Available to order | 1 |
| 17 | T2080954 Pivot Pin, Rear Footrest | Pivot Pin, Rear Footrest | 2 | $8.75 | Available to order | 2 |
