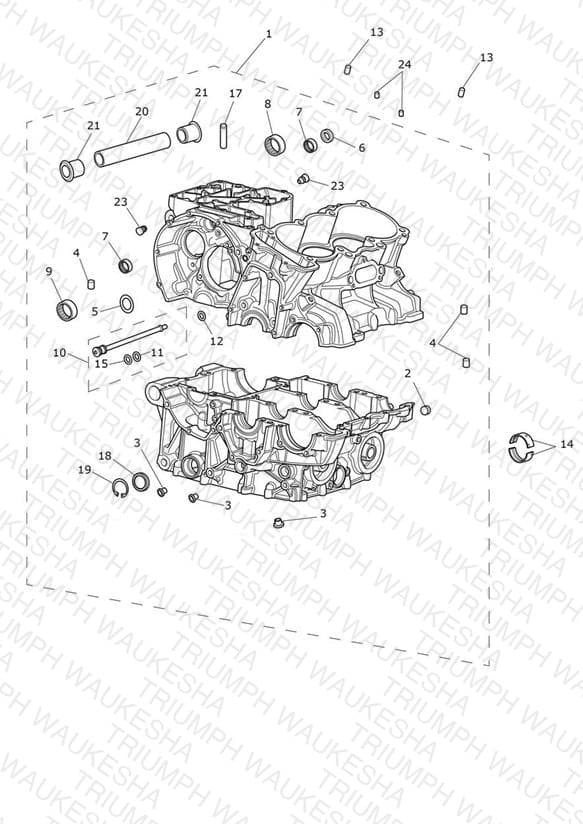

Crankcase & Fittings
Parts (24)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1160499 Crankcase Assy, Spares | Crankcase Assy, Spares | 1 | $4955.00 | Backorder — Mid September 2026 | 1 |
| 2 | T3450091 Plug, Dia 14, Alum | Plug, Dia 14, Alum | 1 | $2.48 | Available to order | 1 |
| 3 | T3455016 Sealing Plug, Int Hex, M16 x 1.5 | Sealing Plug, Int Hex, M16 x 1.5 | 3 | $8.07 | Available to order | 3 |
| 4 | T3000102 Dowel, Hollow, 10 x 14 | Dowel, Hollow, 10 x 14 | 3 | $1.79 | Available to order | 3 |
| 5 | T1180101 Washer, Restrictor, Gearbox | Washer, Restrictor, Gearbox | 1 | $8.46 | Available to order | 1 |
| 6 | T3600088 Seal, Oil, 14 x 22 x 4.5 | Seal, Oil, 14 x 22 x 4.5 | 1 | $6.39 | Available to order | 1 |
| 7 | T3800001 Bearing, Needle, 20 x 14 x 12 | Bearing, Needle, 20 x 14 x 12 | 2 | $8.60 | Available to order | 2 |
| 8 | T3802512 Bearing, Needle | Bearing, Needle | 1 | $11.22 | Available to order | 1 |
| 9 | T3800069 Bearing, Needle Roller | Bearing, Needle Roller | 1 | $125.46 | Available to order | 1 |
| 10 | T1210177 Pipe, Oil Feed, Gearbox | Pipe, Oil Feed, Gearbox | 1 | $30.09 | Backorder — Late August 2026 | 1 |
| 11 | T3600143 O Ring, ID 9.1 x 1.6, Viton | O Ring, ID 9.1 x 1.6, Viton | 1 | $2.10 | Available to order | 1 |
| 12 | T3600109 O Ring, ID 5.6 x 2.3 | O Ring, ID 5.6 x 2.3 | 1 | $5.30 | Available to order | 1 |
| 13 | T3000101 Dowel, Hollow, 8 x 14 | Dowel, Hollow, 8 x 14 | 2 | $3.90 | Available to order | 2 |
| 14 | T1160322 Main Bearing Shell | Main Bearing Shell Red | — | $13.18 | Available to order | 1 |
| 14 | T1160323 Main Bearing Shell | Main Bearing Shell Blue | — | $13.18 | Available to order | 1 |
| 14 | T1160324 Main Bearing Shell | Main Bearing Shell Green | — | $13.18 | Available to order | 1 |
| 15 | T3600252 O Ring, 10.1 Dia x 1.6 | O Ring, 10.1 Dia x 1.6 | 1 | $2.85 | Available to order | 1 |
| 17 | T3100040 Stud, M6 x 35, Enc | Stud, M6 x 35, Enc | 1 | $2.10 | Available to order | 1 |
| 18 | T1261049 Sight glass | Sight glass | 1 | $17.28 | Available to order | 1 |
| 19 | T3500078 Circlip, Int Dia 81.4 x 1.2 | Circlip, Int Dia 81.4 x 1.2 | 1 | $1.40 | Available to order | 1 |
| 20 | T2050969 Tube, Spacer | Tube, Spacer | 1 | $18.99 | Available to order | 1 |
| 21 | T2057383 Bush, Crankcase | Bush, Crankcase | 2 | $17.49 | Backorder — Late August 2026 | 2 |
| 23 | T3450092 Insert, Round, Plastic | Insert, Round, Plastic | 2 | $2.85 | Available to order | 2 |
| 24 | T3000208 Hollow Dowel, Dia 6 x 10.8 | Hollow Dowel, Dia 6 x 10.8 | 2 | $6.33 | Available to order | 2 |
