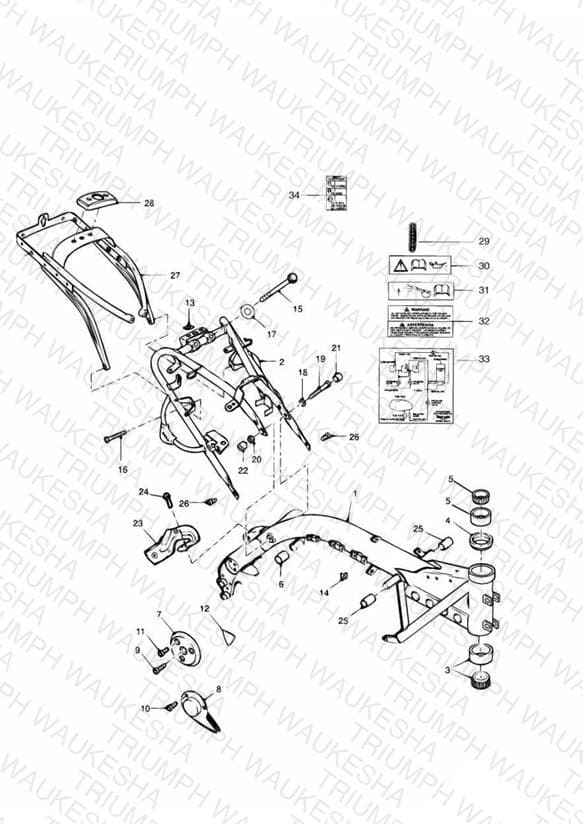

Main Frame & Fittings
Parts (39)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2079006 Frame kit | Frame kit Not US, SG & South America | 1 | $2246.82 | Obsolete | View Details |
| 1 | T2079007 Frame kit | Frame kit US 49 States, SG & South America | 1 | $2144.50 | Obsolete | View Details |
| 1 | T2079008 Frame kit | Frame kit US Cal ONLY | 1 | $2260.43 | Obsolete | View Details |
| 1 | T2079004 Frame kit | Frame kit Canada | 1 | $2144.50 | Obsolete | View Details |
| 2 | T2079009 Frame kit | Frame kit All Markets | 1 | $739.78 | Obsolete | View Details |
| 3 | T3800031 Bearing, 30x55x17, Taper Roll | Bearing, 30x55x17, Taper Roll | 1 | $32.55 | Available to order | 1 |
| 4 | 2070002-T0301 Bearing cup | Bearing cup | 1 | $28.34 | Obsolete | View Details |
| 5 | T3800032 Bearing, 24x47x15, Taper Roll | Bearing, 24x47x15, Taper Roll » 43877 | 1 | $59.91 | Available to order | 1 |
| 5 | T3800055 Bearing | Bearing 43878 » | 1 | $53.11 | Backorder — Mid October 2026 | 1 |
| 6 | 2078691-T0301 Sleeve | Sleeve | 1 | $11.18 | Obsolete | View Details |
| 7 | T2071050 Finisher | Finisher Upper | 2 | $17.55 | Obsolete | View Details |
| 8 | T2071051 Finisher | Finisher Lower | 2 | $18.42 | Obsolete | View Details |
| 9 | T3050334 Screw, Cap/Hd, M6 x 20, Slv | Screw, Cap/Hd, M6 x 20, Slv | 2 | $1.61 | Available to order | 2 |
| 10 | 3050038-T0301 Capscrew | Capscrew M6 x 10mm | 6 | $0.30 | Obsolete | View Details |
| 11 | 3050039-T0301 Capscrew | Capscrew M6 x 8mm - PART NO LONGER AVAILABLE | 6 | $1.81 | Obsolete | View Details |
| 12 | T3900063 Badge | Badge | 1 | $8.14 | Obsolete | View Details |
| 13 | T3351021 Nut, Captive, M6, Slv | Nut, Captive, M6, Slv Seat lock to bridge | 2 | $1.91 | Available to order | 2 |
| 14 | T3351002 Nut, Captive, U-Type, M5, Slv | Nut, Captive, U-Type, M5, Slv Ignition coil to spine | 6 | $2.53 | Available to order | 6 |
| 15 | T3200043 Capscrew | Capscrew M10 x 75mm | 2 | $5.58 | Obsolete | View Details |
| 16 | T3205156 Bolt, HHF, Lghtd, M8 x 16, Slv | Bolt, HHF, Lghtd, M8 x 16, Slv | 2 | $1.73 | Available to order | 2 |
| 17 | T3350065 Washer | Washer | 2 | $0.95 | Obsolete | View Details |
| 18 | T3550309 Washer | Washer | 1 | $15.53 | Obsolete | View Details |
| 19 | 3330251-T0301 Screw, Torx, M12 x 119 | Screw, Torx, M12 x 119 | 1 | $7.06 | Unavailable | View Details |
| 20 | T3350234 Locknut, Flgd, M12 x 1.25 | Locknut, Flgd, M12 x 1.25 | 1 | $6.46 | Available to order | 1 |
| 21 | T2201208 Bush | Bush PART NO LONGER AVAILABLE | 1 | $2.74 | Obsolete | View Details |
| 22 | T2201207 Bush | Bush RH | 1 | $2.74 | Obsolete | View Details |
| 23 | T2070711 Support bracket | Support bracket | 1 | $7.15 | Obsolete | View Details |
| 24 | T3203222 Bolt, HHF, M6 x 12, Slv | Bolt, HHF, M6 x 12, Slv | 2 | $1.84 | Available to order | 2 |
| 25 | T2400603 Bush, Tank Mount | Bush, Tank Mount | 2 | $2.79 | Available to order | 2 |
| 26 | T3050096 Capscrew | Capscrew M10 x 14mm | 2 | $8.87 | Available to order | 2 |
| 27 | T2070956 Subframe | Subframe | 1 | $393.95 | Obsolete | View Details |
| 28 | T2071003 Pad support | Pad support | 1 | $6.98 | Obsolete | View Details |
| 29 | T3900119 Label, Gear Position | Label, Gear Position | 1 | $6.06 | Available to order | 1 |
| 30 | T3900136 Label, Engine Oil | Label, Engine Oil | 1 | $3.04 | Available to order | 1 |
| 31 | T3900026 Label | Label Air intake | 1 | $0.90 | Obsolete | View Details |
| 32 | T3900169 Label, Frame modification | Label, Frame modification US | 1 | $4.84 | Available to order | 1 |
| 33 | T3930095 Label | Label Carb diagram US CAL | 1 | $10.89 | Obsolete | View Details |
| 34 | T3900178 Label | Label ECE | 1 | $5.47 | Obsolete | View Details |
| 34 | T3900179 Label | Label ECE DE | 1 | $5.47 | Obsolete | View Details |
