Triumph Waukesha is your source for OEM Triumph parts, accessories, and interactive schematics.OEM Triumph parts and schematics
Loading schematic...

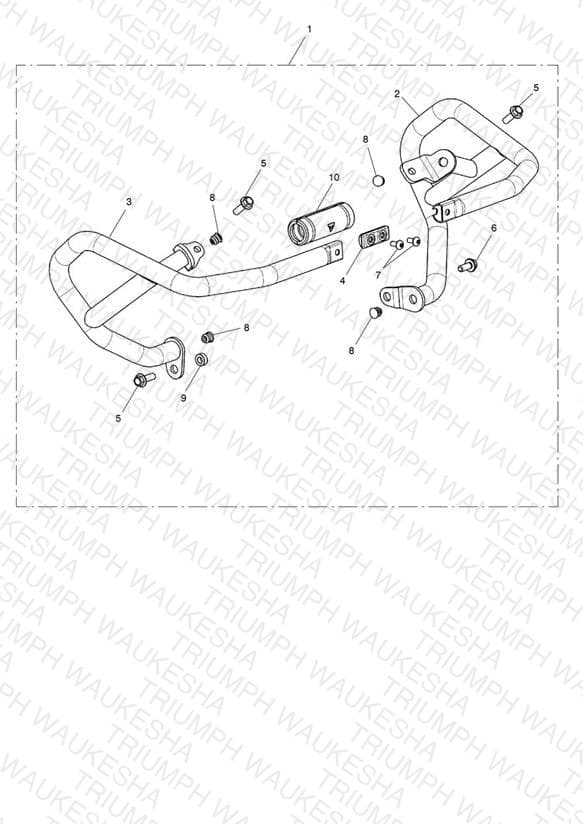

Lower Engine Bar Kit, SS - N/A to Aragon Edition
Parts (10)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A9780053 Lower Engine Bar Kit, SS | Lower Engine Bar Kit, SS | 1 | $375.00 | Available to order | 1 |
| 2 | T2087601 Protection Bar, LH | Protection Bar, LH | 1 | $231.10 | Backorder — Mid September 2026 | 1 |
| 3 | T2087607 Protection Bar, RH | Protection Bar, RH | 1 | $231.10 | Available to order | 1 |
| 4 | T2087624 Protection Bar, Centre | Protection Bar, Centre | 1 | $19.57 | Available to order | 1 |
| 5 | T3205781 Bolt, HHF, Lghtd, M8 x 1.25 x 25, Slv | Bolt, HHF, Lghtd, M8 x 1.25 x 25, Slv | 3 | $1.62 | Available to order | 3 |
| 6 | T3205254 Bolt, HHF, Lghtd, M8 x 20, Slv | Bolt, HHF, Lghtd, M8 x 20, Slv | 1 | $1.62 | Available to order | 1 |
| 7 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc | 2 | $1.40 | Available to order | 2 |
| 8 | T3450675 Bung, Hole Dia 12, Black | Bung, Hole Dia 12, Black | 4 | $7.71 | Available to order | 4 |
| 9 | T2087637 Spacer | Spacer | 1 | $7.56 | Out of Stock | Notify Me |
| 10 | T2087643 Rubber Sleeve, Engine Bars | Rubber Sleeve, Engine Bars | 1 | $7.35 | Available to order | 1 |
