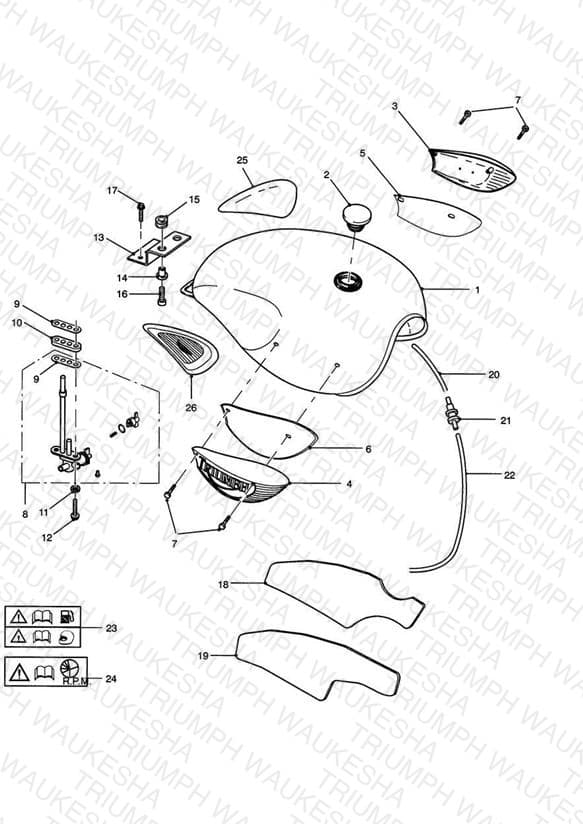

Fuel Tank and Fittings
Parts (31)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2401406-GC Fuel tank | Fuel tank Gold / Ivory; Includes heat pads, items 18 & 19 | 1 | $1243.19 | Obsolete | View Details |
| 1 | T2401406-KE Fuel tank | Fuel tank Violet / Ivory; Includes heat pads, items 18 & 19 | 1 | $1390.00 | Obsolete | View Details |
| 1 | T2401406-EC Fuel tank | Fuel tank Amber / Copper; Includes heat pads, items 18 & 19 | 1 | $1243.19 | Obsolete | View Details |
| 1 | T2401406-JK Fuel tank | Fuel tank Turquoise / Silver; Includes heat pads, items 18 & 19 | 1 | $1243.19 | Obsolete | View Details |
| 1 | T2401406-TC Fuel tank | Fuel tank Aubergine / Silver; Includes heat pads, items 18 & 19 | 1 | $1243.19 | Obsolete | View Details |
| 1 | T2401406-PG Fuel tank | Fuel tank Jet Black / Silver; Includes heat pads, items 18 & 19 | 1 | $1390.00 | Obsolete | View Details |
| 2 | T2400597 Fuel Filler Cap, Screw Type | Fuel Filler Cap, Screw Type | 1 | $110.28 | Available to order | 1 |
| 3 | T3900066 Badge, Tank, LH, Type B | Badge, Tank, LH, Type B LH | 1 | $87.47 | Available to order | 1 |
| 4 | T3900067 Badge, Tank, RH, Type B | Badge, Tank, RH, Type B RH | 1 | $87.47 | Available to order | 1 |
| 5 | T3660128 Gasket, Tank Badge, LH | Gasket, Tank Badge, LH LH | 1 | $11.22 | Available to order | 1 |
| 6 | T3660129 Gasket, Tank Badge, RH | Gasket, Tank Badge, RH RH | 1 | $11.22 | Available to order | 1 |
| 7 | T3330529 Screw, Raised C'sunk, Trx | Screw, Raised C'sunk, Trx M5 x 16mm | 4 | $6.14 | Available to order | 4 |
| 8 | T2400150 Fuel Tap Assy, T309RT | Fuel Tap Assy, T309RT | 1 | $123.56 | Available to order | 1 |
| 9 | 2400086-T0301 Seal, Fuel Tap (EN) | Seal, Fuel Tap (EN) | 2 | $4.12 | Available to order | 2 |
| 10 | T2400151 Spacer, Fuel Tap Assy, T309RT | Spacer, Fuel Tap Assy, T309RT * PART NO LONGER AVAILABLE * | 1 | $38.02 | Obsolete | View Details |
| 11 | 3550150-T0301 Washer, Sealing, 11.5x6.4x0.64 | Washer, Sealing, 11.5x6.4x0.64 | 2 | $1.47 | Available to order | 2 |
| 12 | T3331102 Bolt, HHF, M6 X 25, S/S | Bolt, HHF, M6 X 25, S/S * PART NO LONGER AVAILABLE * | 2 | $1.74 | Obsolete | View Details |
| 13 | T2070712 Bridge bracket | Bridge bracket | 1 | $11.05 | Obsolete | View Details |
| 14 | T3010042 Flanged Sleeve, M6 x 10 x 18 | Flanged Sleeve, M6 x 10 x 18 | 2 | $1.79 | Available to order | 2 |
| 15 | T2400602 Grommet, Long, Tank Rear Mount | Grommet, Long, Tank Rear Mount | 2 | $2.10 | Available to order | 2 |
| 16 | T3205083 Bolt, HHF, LGHTD, M6 x 28, Slv | Bolt, HHF, LGHTD, M6 x 28, Slv | 2 | $2.48 | Available to order | 2 |
| 17 | T3203222 Bolt, HHF, M6 x 12, Slv | Bolt, HHF, M6 x 12, Slv | 2 | $1.72 | Available to order | 2 |
| 18 | T2301033 Heat shield | Heat shield LH | 1 | $57.60 | Available to order | 1 |
| 19 | T2301034 Heat shield | Heat shield RH | 1 | $25.39 | Obsolete | View Details |
| 20 | T3620285 Pipe breather | Pipe breather | 1 | $3.77 | Available to order | 1 |
| 21 | T2400045 Valve, Roll Over | Valve, Roll Over » 82479 | 1 | $33.95 | Unavailable | View Details |
| 22 | T3620278 Hose | Hose | 1 | $9.02 | Available to order | 1 |
| 23 | T3900194 Label, Fuel Tank, White Text | Label, Fuel Tank, White Text | 1 | $5.69 | Available to order | 1 |
| 24 | T3900154 Label, Running In, White Text | Label, Running In, White Text | 1 | $2.85 | Available to order | 1 |
| 25 | T2300302 Pad rubber | Pad rubber LH | 1 | $15.75 | Obsolete | View Details |
| 26 | T2300303 Pad rubber | Pad rubber RH | 1 | $32.16 | Obsolete | View Details |
