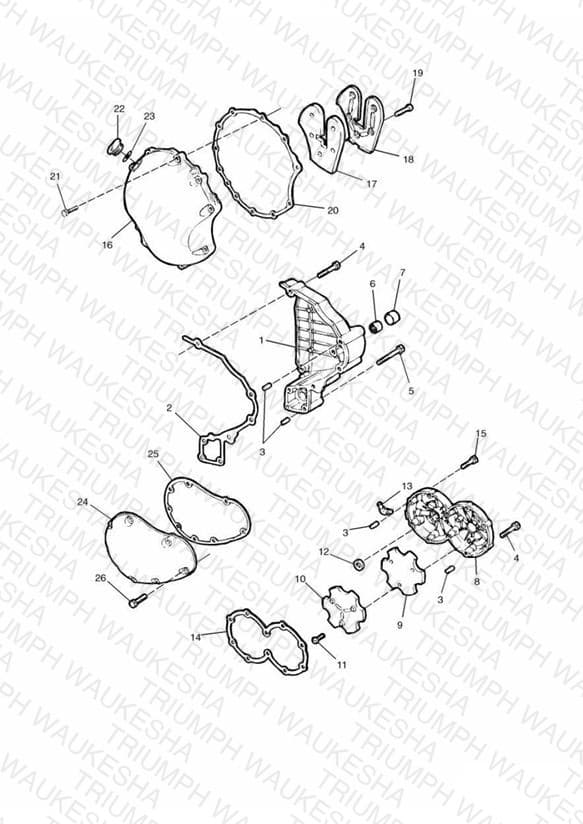

Engine Covers
Parts (26)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1260163 Sprocket cover | Sprocket cover | 1 | $140.93 | Out of Stock | Notify Me |
| 2 | T1260759 Gasket, Sprocket Cover | Gasket, Sprocket Cover | 1 | $10.72 | Available to order | 1 |
| 3 | T3000101 Dowel, Hollow, 8 x 14 | Dowel, Hollow, 8 x 14 | 4 | $4.15 | Available to order | 4 |
| 4 | T3203040 Bolt, RHHF Domed, M6 x 40 | Bolt, RHHF Domed, M6 x 40 M6 x 40mm | 6 | $1.84 | Available to order | 6 |
| 5 | T3203050 Bolt, Domed, S/S, M6 x 50 | Bolt, Domed, S/S, M6 x 50 M6 x 50mm | 1 | $7.18 | Available to order | 1 |
| 6 | 3800041-T0301 Bearing, Gearbox Lever | Bearing, Gearbox Lever | 1 | $14.11 | Available to order | 1 |
| 7 | T3600008 Oil Seal | Oil Seal | 1 | $12.48 | Available to order | 1 |
| 8 | T1260852 Cover lh | Cover lh * PART NO LONGER AVAILABLE * Chrome | 1 | $260.22 | Obsolete | View Details |
| 9 | T1260840 Pad | Pad * PART NO LONGER AVAILABLE * Sound deadening | 1 | $6.19 | Obsolete | View Details |
| 10 | T1260835 Plate | Plate Sound deadening | 1 | $11.84 | Available to order | 1 |
| 11 | T3330627 Screw, Pan/HD, TPT, Tx, M5 x 12 | Screw, Pan/HD, TPT, Tx, M5 x 12 | 3 | $1.04 | Available to order | 3 |
| 12 | T3600240 Seal, oil, 14.5 28.4 6.5 | Seal, oil, 14.5 28.4 6.5 LH | 1 | $49.41 | Available to order | 1 |
| 13 | T1260830 Fitting | Fitting LH | 1 | $9.67 | Obsolete | View Details |
| 14 | T1260757 Gasket, LH Crank Cover | Gasket, LH Crank Cover | 1 | $5.90 | Available to order | 1 |
| 15 | T3202030 Bolt, RHHF, Domed, M6 x 20 | Bolt, RHHF, Domed, M6 x 20 M6 x 30mm | 8 | $1.40 | Obsolete | View Details |
| 16 | T1260850 Clutch cover | Clutch cover Chrome | 1 | $504.55 | Obsolete | View Details |
| 17 | 1260380-T0301 Pad | Pad Sound deadening | 1 | $11.49 | Obsolete | View Details |
| 18 | 1260390-T0301 Plate | Plate Sound deadening | 1 | $10.11 | Obsolete | View Details |
| 19 | T3331040 Screw, TPT, Pan/Hd, M6 x 12, Slv | Screw, TPT, Pan/Hd, M6 x 12, Slv | 5 | $2.53 | Available to order | 5 |
| 20 | T1260206 Gasket, Clutch Cover | Gasket, Clutch Cover | 1 | $13.26 | Available to order | 1 |
| 21 | T3203025 Bolt, RHHF, Domed, M6 x 25, S/S | Bolt, RHHF, Domed, M6 x 25, S/S | 12 | $2.24 | Available to order | 12 |
| 22 | T1260855 Filler cap | Filler cap Chrome | 1 | $24.46 | Obsolete | View Details |
| 23 | T3600028 O Ring, Filler Cap | O Ring, Filler Cap | 1 | $1.50 | Available to order | 1 |
| 24 | T1260853 Cover rh | Cover rh Chrome | 1 | $146.96 | Obsolete | View Details |
| 25 | T1260758 Gasket, RH Crank Cover | Gasket, RH Crank Cover | 1 | $12.64 | Available to order | 1 |
| 26 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv | 8 | $4.84 | Available to order | 8 |
