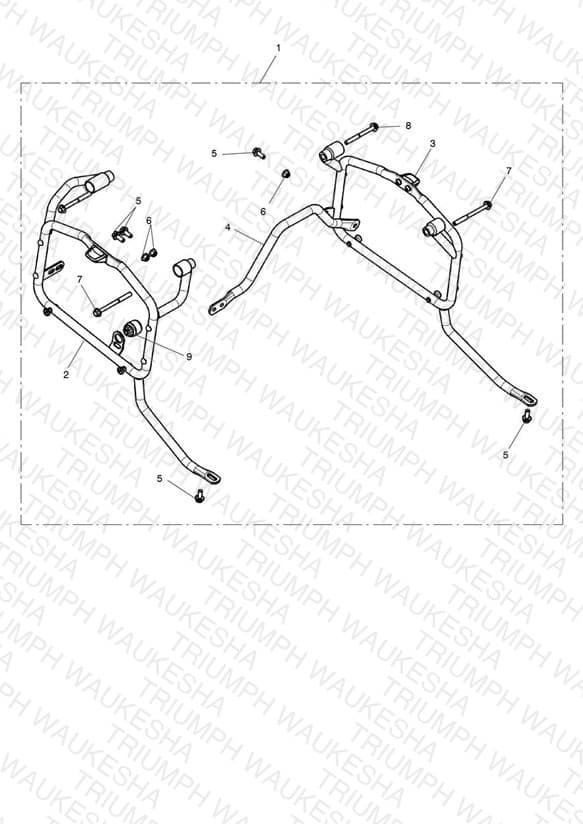

Frame Kit, Panniers
Schematic
Parts (9)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A9501288 Frame Kit, Panniers | Frame Kit, Panniers Also requires A9501341. Not compatible with A9501286 and A9500880 and A9500885 | 1 | $410.00 | Available to order | 1 |
| 2 | T2353515 Pannier Mount, Frame Assy, RH | Pannier Mount, Frame Assy, RH | 1 | $432.60 | Backorder — Late August 2026 | 1 |
| 3 | T2353516 Pannier Mount, Frame Assy, LH | Pannier Mount, Frame Assy, LH | 1 | $453.20 | Backorder — Late August 2026 | 1 |
| 4 | T2353514 Pannier Mount Frame, Assy, Link Bar | Pannier Mount Frame, Assy, Link Bar | 1 | $121.33 | Out of Stock | Notify Me |
| 5 | T3205254 Bolt, HHF, Lghtd, M8 x 20, Slv | Bolt, HHF, Lghtd, M8 x 20, Slv | 5 | $1.62 | Available to order | 5 |
| 6 | T3350004 Locknut, Flanged, M8 x 1.25 | Locknut, Flanged, M8 x 1.25 | 3 | $2.45 | Available to order | 3 |
| 7 | T3202327 Bolt, HHF, M8 x 95, Slv | Bolt, HHF, M8 x 95, Slv | 2 | $3.71 | Out of Stock | Notify Me |
| 8 | T3202323 Bolt, HHF, M8 x 80, Slv | Bolt, HHF, M8 x 80, Slv | 2 | $1.62 | Available to order | 2 |
| 9 | T2203434 Stop, Silencer | Stop, Silencer | 1 | $6.83 | Available to order | 1 |
