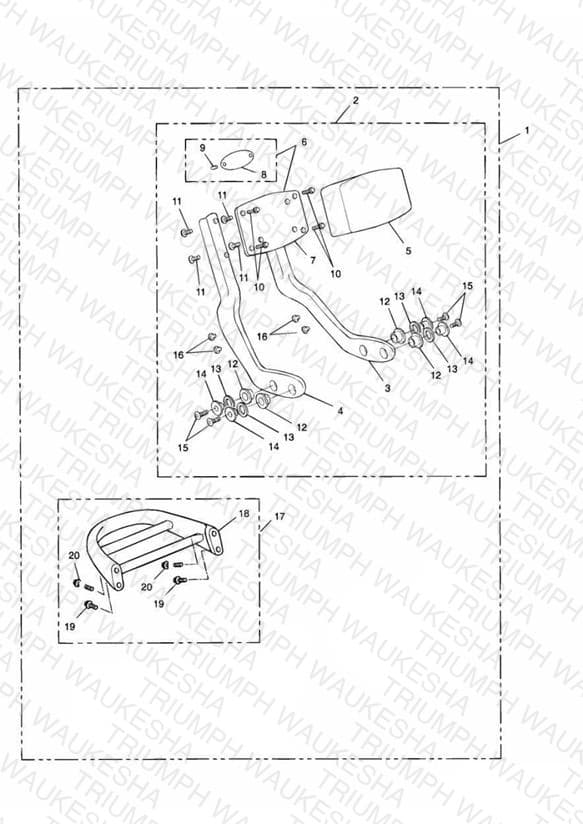

Passenger Backrest/ Luggage Rack Forged
Parts (20)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A9730007 Kit luggage rack | Kit luggage rack Does not include item 16 | 1 | $420.00 | Obsolete | View Details |
| 2 | A9730500 Passenger Backrest kit | Passenger Backrest kit Chrome; Comprise items 2-16, 22 and 23 | 1 | $295.00 | Obsolete | View Details |
| 3 | A9750067 Upright | Upright LH | 1 | $245.00 | Out of Stock | Notify Me |
| 4 | A9750066 Upright | Upright RH | 1 | $121.00 | Obsolete | View Details |
| 5 | T2300348 Passenger Backrest Pad | Passenger Backrest Pad | 1 | $27.00 | Obsolete | View Details |
| 6 | A9750003 Plate | Plate * Part No Longer Available * | 1 | $132.00 | Obsolete | View Details |
| 7 | A2300346 Back plate | Back plate | 1 | $66.00 | Obsolete | View Details |
| 8 | A2300347 Badge Replaced by T2300347 — Badge | Badge | 1 | $38.00 | Unavailable | View Details |
| 9 | T3300091 Rivet | Rivet **PART NO LONGER AVAILABLE** | 2 | $0.49 | Obsolete | View Details |
| 10 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 4 | $3.50 | Available to order | 4 |
| 11 | T3330550 Screw M6 x 16, S/S, Large HD | Screw M6 x 16, S/S, Large HD * PART NO LONGER AVAILABLE * | 4 | $3.23 | Obsolete | View Details |
| 12 | A3750032 Grommet Replaced by T3750032 — Grommet | Grommet | 4 | $1.15 | Unavailable | View Details |
| 13 | T3550405 Washer, M8 x 17 x 1.6 | Washer, M8 x 17 x 1.6 | 4 | $0.89 | Available to order | 4 |
| 14 | T3010290 Sleeve | Sleeve | 4 | $12.05 | Available to order | 4 |
| 15 | T3330543 Screw | Screw | 4 | $9.77 | Available to order | 4 |
| 16 | A9740005 Blanking plug Replaced by T2300433 — Blanking plug | Blanking plug | 4 | $1.80 | Unavailable | View Details |
| 17 | A9730516 Kit luggage rack | Kit luggage rack Chrome; Comprises items 18 to 22 | 1 | $147.00 | Obsolete | View Details |
| 18 | A9750072 Luggage rack | Luggage rack | 1 | $147.00 | Obsolete | View Details |
| 19 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv | 2 | $4.55 | Available to order | 2 |
| 20 | T3203040 Bolt, RHHF Domed, M6 x 40 | Bolt, RHHF Domed, M6 x 40 M6 x 40mm | 2 | $1.72 | Available to order | 2 |
