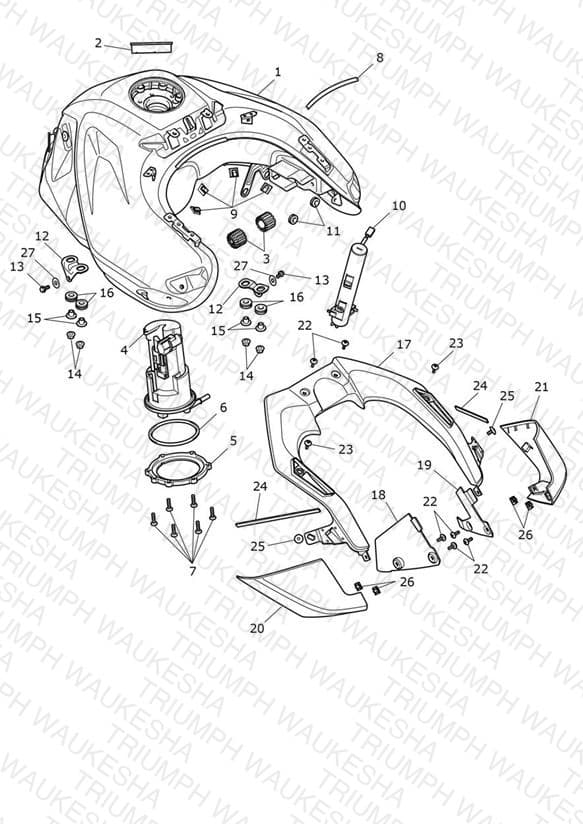

Fuel Tank, Fuel Pump & Fittings
Parts (52)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2402661-PM Fuel Tank Assembly, Sapphire Black | Fuel Tank Assembly, Sapphire Black Includes 2 badges, item 28, Decals, items 29 & 30 & Clips, item 9 | 1 | $1741.80 | Available to order | 1 |
| 1 | T2402661-DG Fuel Tank Assembly, Korosi Red | Fuel Tank Assembly, Korosi Red > BA7597 - includes 2 badges, item 28, Decals, items 29 & 30 & Clips, item 9 | 1 | $1741.80 | Available to order | 1 |
| 1 | T2402661-NK Fuel Tank Assembly, Pure White | Fuel Tank Assembly, Pure White Includes 2 badges, item 28, Decals, items 29 & 30 & Clips, item 9 | 1 | $1741.80 | Available to order | 1 |
| 1 | T2402916-JD Fuel Tank Assembly, Caspian Blue | Fuel Tank Assembly, Caspian Blue BA7598 > - includes 2 badges, item 28, Decals, items 29 & 30 & Clips, item 9 | 1 | $1891.09 | Available to order | 1 |
| 2 | T2405034 Seal, Fuel Filler Cap | Seal, Fuel Filler Cap | 1 | $8.46 | Available to order | 1 |
| 3 | T2400603 Bush, Tank Mount | Bush, Tank Mount | 2 | $2.63 | Available to order | 2 |
| 4 | T2403892 Pump, Fuel, 3.5 Bar | Pump, Fuel, 3.5 Bar | 1 | $180.73 | Available to order | 1 |
| 5 | T2400562 Location Plate, Pump | Location Plate, Pump | 1 | $37.09 | Available to order | 1 |
| 6 | T2401887 Seal, Fuel Pump Module | Seal, Fuel Pump Module | 1 | $10.25 | Available to order | 1 |
| 7 | T3331234 Screw, Torx, P/H, M6 x 20, Slv | Screw, Torx, P/H, M6 x 20, Slv | 6 | $5.30 | Available to order | 6 |
| 8 | T2401664 Trim, Flange Cover | Trim, Flange Cover | 1 | $7.27 | Available to order | 1 |
| 9 | T3700296 Clip, Cable, Adhesive | Clip, Cable, Adhesive | 4 | $4.12 | Available to order | 4 |
| 10 | T2408804 Fuel Level Sender | Fuel Level Sender | 1 | $137.94 | Available to order | 1 |
| 11 | T3020085 Grommet, Dia 18 x 9 | Grommet, Dia 18 x 9 | 2 | $2.10 | Available to order | 2 |
| 12 | T2409912 Bracket, Tank, Rear | Bracket, Tank, Rear | 2 | $10.44 | Available to order | 2 |
| 13 | T3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv | Screw, Pan/Hd, Tx, M6 x 16, Slv | 2 | $0.97 | Available to order | 2 |
| 14 | T3050334 Screw, Cap/Hd, M6 x 20, Slv | Screw, Cap/Hd, M6 x 20, Slv > BE6537 | 4 | $1.51 | Available to order | 4 |
| 14 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 BE6538 > | 4 | $0.67 | Available to order | 4 |
| 15 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 4 | $5.78 | Available to order | 4 |
| 16 | T3021100 Grommet, Dia 13 x 1.8 | Grommet, Dia 13 x 1.8 | 4 | $2.85 | Available to order | 4 |
| 17 | T2311350 Fuel Tank Infill, Centre | Fuel Tank Infill, Centre | 1 | $48.47 | Backorder — Late August 2026 | 1 |
| 18 | T2311518 Tank End Panel, Infill, RH | Tank End Panel, Infill, RH | 1 | $48.47 | Available to order | 1 |
| 19 | T2311519 Tank End Panel, Infill, LH | Tank End Panel, Infill, LH | 1 | $48.47 | Available to order | 1 |
| 20 | T2311930-PM Tank End Panel, RH, Sapphire Black | Tank End Panel, RH, Sapphire Black > BA7597 - Includes item 24 | 1 | $338.40 | Backorder — Late September 2026 | 1 |
| 20 | T2313161-PM Tank End Panel, RH, Sapphire Black | Tank End Panel, RH, Sapphire Black BA7598 > - Includes item 24 | 1 | $338.40 | Backorder — Mid September 2026 | 1 |
| 20 | T2311930-DG Tank End Panel, RH, Korosi Red | Tank End Panel, RH, Korosi Red > BA7597 - Includes item 24 | 1 | $338.40 | Available to order | 1 |
| 20 | T2311938-JD Tank End Panel, RH, Caspian Blue | Tank End Panel, RH, Caspian Blue BA7598 > - Includes item 24 | 1 | $338.40 | Available to order | 1 |
| 20 | T2311938-NK Tank End Panel, RH, Pure White | Tank End Panel, RH, Pure White > BA7597 - Includes item 24 | 1 | $338.40 | Backorder — Mid September 2026 | 1 |
| 20 | T2313161-NK Tank End Panel, RH, Pure White | Tank End Panel, RH, Pure White BA7598 > - Includes item 24 | 1 | $338.40 | Backorder — Late August 2026 | 1 |
| 21 | T2311931-PM Tank End Panel, LH, Sapphire Black | Tank End Panel, LH, Sapphire Black > BA7597 - Includes item 24 | 1 | $338.40 | Available to order | 1 |
| 21 | T2313162-PM Tank End Panel, LH, Sapphire Black | Tank End Panel, LH, Sapphire Black BA7598 > - Includes item 24 | 1 | $338.40 | Available to order | 1 |
| 21 | T2311931-DG Tank End Panel, LH, Korosi Red | Tank End Panel, LH, Korosi Red > BA7597 - Includes item 24 | 1 | $338.40 | Available to order | 1 |
| 21 | T2311939-JD Tank End Panel, LH, Caspian Blue | Tank End Panel, LH, Caspian Blue BA7598 > - Includes item 24 | 1 | $338.40 | Available to order | 1 |
| 21 | T2311939-NK Tank End Panel, LH, Pure White | Tank End Panel, LH, Pure White > BA7597 - Includes item 24 | 1 | $338.40 | Backorder — Mid August 2026 | 1 |
| 21 | T2313162-NK Tank End Panel, LH, Pure White | Tank End Panel, LH, Pure White BA7598 > - Includes item 24 | 1 | $338.40 | Available to order | 1 |
| 22 | T3330943 Screw, But/Hd, M5 x 14, Slv | Screw, But/Hd, M5 x 14, Slv | 6 | $4.92 | Available to order | 6 |
| 23 | T3331061 Bolt, But/Hd, M5 x 11, Shld, Slv | Bolt, But/Hd, M5 x 11, Shld, Slv | 2 | $5.02 | Available to order | 2 |
| 24 | T2311600 Foam Tape, Capping Panel | Foam Tape, Capping Panel | 2 | $3.67 | Available to order | 2 |
| 25 | T3330726 Screw, Btn/Hd, M6 x 12, Slv | Screw, Btn/Hd, M6 x 12, Slv | 2 | $4.42 | Available to order | 2 |
| 26 | T3350129 Nut, Captive, M5 | Nut, Captive, M5 | 4 | $3.39 | Available to order | 4 |
| 27 | T3552004 Washer, M6 x 14 x 2 | Washer, M6 x 14 x 2 | 2 | $1.91 | Available to order | 2 |
| 28 | T2401652 Tank Badge, 130mm | Tank Badge, 130mm Not Illustrated - Fitted to All Colours | 2 | $65.62 | Available to order | 2 |
| 29 | T2311039 Decal, Fuel Tank, RHS | Decal, Fuel Tank, RHS Not Illustrated - Fitted to Black, White & Red Tanks | 1 | $59.68 | Available to order | 1 |
| 29 | T2402997 Decal, Fuel Tank, RHS | Decal, Fuel Tank, RHS Not Illustrated - Fitted to Blue Tanks | 1 | $64.51 | Backorder — Late August 2026 | 1 |
| 30 | T2311040 Decal, Fuel Tank, LHS | Decal, Fuel Tank, LHS Not Illustrated - Fitted to Black, White & Red Tanks | 1 | $59.68 | Available to order | 1 |
| 30 | T2402998 Decal, Fuel Tank, LHS | Decal, Fuel Tank, LHS Not Illustrated - Fitted to Blue Tanks | 1 | $64.51 | Out of Stock | Notify Me |
| 31 | T2311047 Decal, Tank End Panel, LH | Decal, Tank End Panel, LH Fitted to Red Panels - Not Illustrated | 1 | $34.54 | Available to order | 1 |
| 31 | T2311045 Decal, Tank End Panel, LH | Decal, Tank End Panel, LH Fitted to White & Black Panels - Not Illustrated | 1 | $34.54 | Available to order | 1 |
| 31 | T2311305 Decal, Tank End Panel, LH | Decal, Tank End Panel, LH Fitted to Blue Panels - Not Illustrated | 1 | $53.73 | Backorder — Late August 2026 | 1 |
| 32 | T2311048 Decal, Tank End Panel, RH | Decal, Tank End Panel, RH Fitted to Red Panels - Not Illustrated | 1 | $34.54 | Available to order | 1 |
| 32 | T2311046 Decal, Tank End Panel, RH | Decal, Tank End Panel, RH Fitted to White & Black Panels - Not Illustrated | 1 | $34.54 | Available to order | 1 |
| 32 | T2311304 Decal, Tank End Panel, RH | Decal, Tank End Panel, RH Fitted to Blue Panels - Not Illustrated | 1 | $53.73 | Out of Stock | Notify Me |
