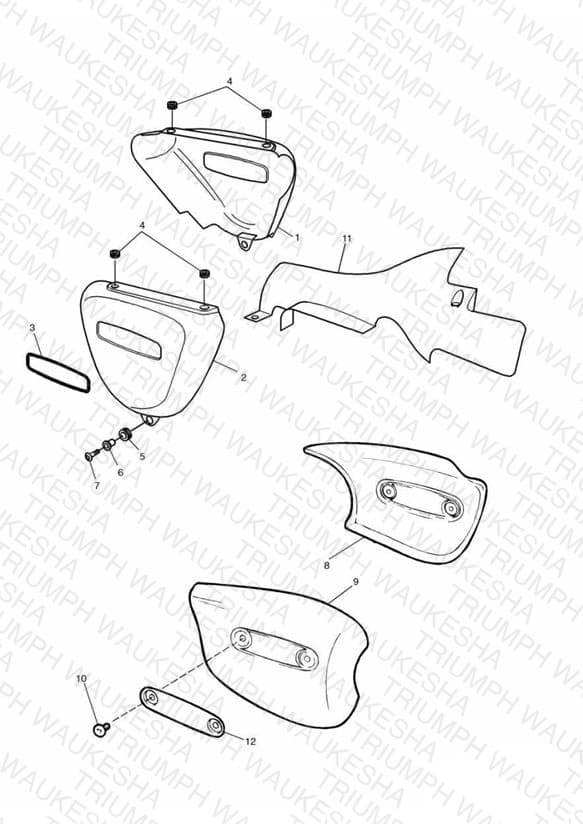

Bodywork
Parts (12)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2301256-PG Side panel lh | Side panel lh Jet Black | 1 | $199.56 | Obsolete | View Details |
| 2 | T2301266-PG Side panel rh | Side panel rh Jet Black | 1 | $190.06 | Obsolete | View Details |
| 3 | T3900276 Badge | Badge | 2 | $21.00 | Obsolete | View Details |
| 4 | T3020121 Grommet, 13 x 1 x 6.2 | Grommet, 13 x 1 x 6.2 | 4 | $2.00 | Available to order | 4 |
| 5 | T3020082 Grommet, 18 x 1 x 9 | Grommet, 18 x 1 x 9 | 2 | $6.77 | Available to order | 2 |
| 6 | T3010707 Sleeve, Flanged, 6.4 x 10 x 6.5 | Sleeve, Flanged, 6.4 x 10 x 6.5 | 2 | $3.59 | Available to order | 2 |
| 7 | T3330727 Screw, But/Hd, M6 x 20, Slv | Screw, But/Hd, M6 x 20, Slv | 2 | $3.39 | Available to order | 2 |
| 8 | T2201389 Airbox Cover, LH, Chromed, RT | Airbox Cover, LH, Chromed, RT | 1 | $136.95 | Obsolete | View Details |
| 9 | T2201388 Airbox Cover, RH, Chromed, RT | Airbox Cover, RH, Chromed, RT | 1 | $136.95 | Obsolete | View Details |
| 10 | T3330550 Screw M6 x 16, S/S, Large HD | Screw M6 x 16, S/S, Large HD M6 x 12mm - * PART NO LONGER AVAILABLE * | 4 | $3.23 | Obsolete | View Details |
| 11 | T2200053 Panel infill | Panel infill | 1 | $39.41 | Obsolete | View Details |
| 12 | T3900083 Badge | Badge | 2 | $27.78 | Obsolete | View Details |
