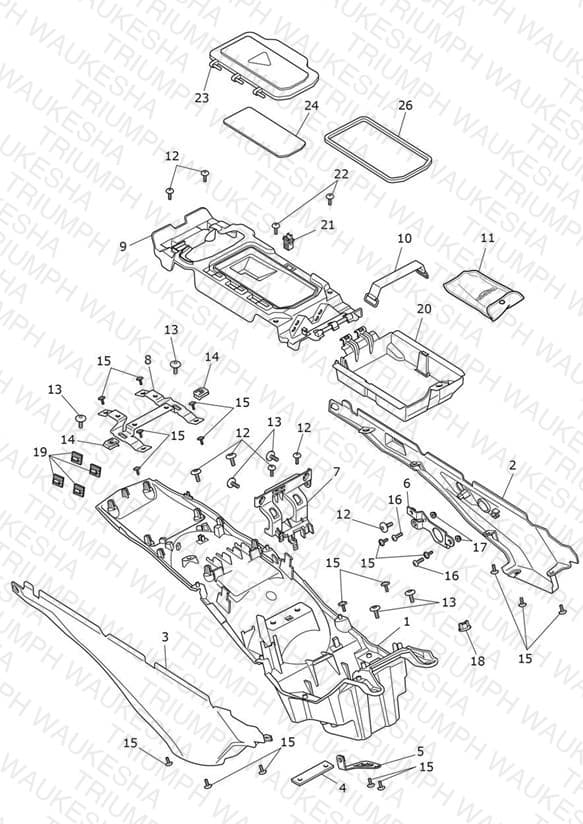

Rear Mudguard
Parts (24)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2309273 Rear Mudguard Moulding | Rear Mudguard Moulding | 1 | $156.54 | Available to order | 1 |
| 2 | T2309274 Rear Sidepanel, LH | Rear Sidepanel, LH | 1 | $77.64 | Backorder — Late August 2026 | 1 |
| 3 | T2309275 Rear Sidepanel, RH | Rear Sidepanel, RH | 1 | $77.64 | Available to order | 1 |
| 4 | T2311649 Mount Plate | Mount Plate | 1 | $2.89 | Out of Stock | Notify Me |
| 5 | T2310350 Rear Reservoir Bracket | Rear Reservoir Bracket | 1 | $23.28 | Out of Stock | Notify Me |
| 6 | T2501958 Seat Lock Bracket | Seat Lock Bracket | 1 | $9.78 | Out of Stock | Notify Me |
| 7 | T2319919 Rear Mudguard Support | Rear Mudguard Support | 1 | $21.88 | Backorder — Late August 2026 | 1 |
| 8 | T2311646 Rear Mudguard Bracket | Rear Mudguard Bracket | 1 | $12.36 | Out of Stock | Notify Me |
| 9 | T2505566 Phone Tray Moulding | Phone Tray Moulding | 1 | $50.33 | Available to order | 1 |
| 10 | T2501740 Battery Strap | Battery Strap | 1 | $9.97 | Available to order | 1 |
| 11 | T2303605 Toolkit, Type W | Toolkit, Type W | 1 | $114.08 | Available to order | 1 |
| 12 | T3330941 Screw, But/Hd, Skt, M5 x 16, Slv | Screw, But/Hd, Skt, M5 x 16, Slv | 9 | $6.73 | Available to order | 9 |
| 13 | T3331010 Bolt, But/Hd, Skt, M6 x 16, S/S | Bolt, But/Hd, Skt, M6 x 16, S/S | 6 | $4.30 | Available to order | 6 |
| 14 | T3350111 Nut, Captive, M6 | Nut, Captive, M6 | 2 | $4.92 | Backorder — Early August 2026 | 2 |
| 15 | T3331436 Screw, S/Tap, Pan, Torx, 4 x 11, PT | Screw, S/Tap, Pan, Torx, 4 x 11, PT | 18 | $0.75 | Available to order | 18 |
| 16 | T3332648 Screw, Btn/Hd, M5 x 14, Slv | Screw, Btn/Hd, M5 x 14, Slv | 2 | $0.97 | Available to order | 2 |
| 17 | T3350010 Locknut, Flgd, M5 | Locknut, Flgd, M5 | 2 | $2.25 | Available to order | 2 |
| 18 | T3351100 Wingnut, M6, Plastic | Wingnut, M6, Plastic | 1 | $3.33 | Available to order | 1 |
| 19 | T3450345 Clip, Wire, Self Adhesive | Clip, Wire, Self Adhesive | 4 | $4.19 | Available to order | 4 |
| 20 | T2505645 Tool Kit Tray | Tool Kit Tray | 1 | $37.28 | Available to order | 1 |
| 21 | T2309804 Push Latch | Push Latch | 1 | $31.47 | Available to order | 1 |
| 23 | T3901111 Spares Kit, Storage Box, Lid | Spares Kit, Storage Box, Lid | 1 | $35.27 | Available to order | 1 |
| 24 | T2311647 Foam, Phone Tray Upper | Foam, Phone Tray Upper | 1 | $1.97 | Available to order | 1 |
| 26 | T2317530 Seal, Storage Box, 4.9mm | Seal, Storage Box, 4.9mm | 1 | $16.74 | Out of Stock | Notify Me |
