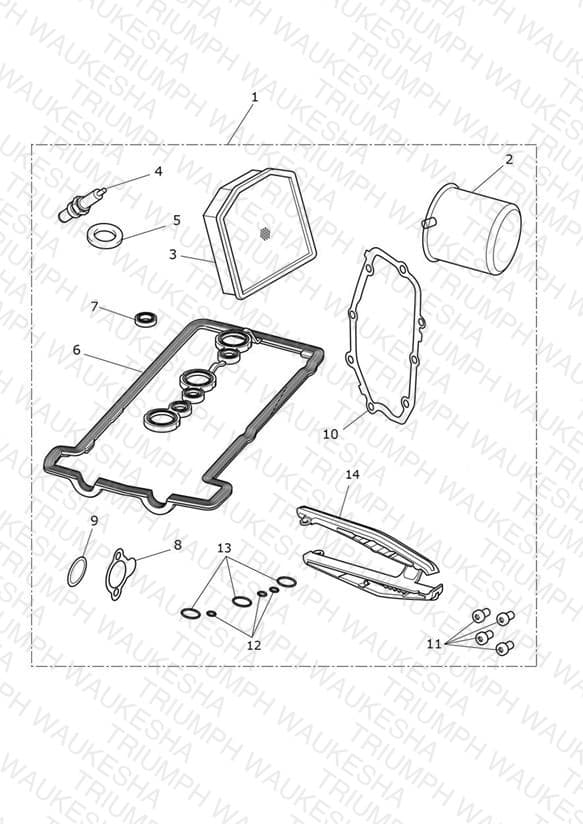

Engine Service Kit
Parts (14)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T3990129 Engine Service Kit | Engine Service Kit | 1 | $269.23 | Available to order | 1 |
| 2 | T1218001 Oil Filter, OES | Oil Filter, OES | 1 | $18.63 | Available to order | 1 |
| 3 | T2204242 Air Filter Assy | Air Filter Assy | 1 | $43.96 | Backorder — Mid October 2026 | 1 |
| 4 | T1290023 Spark plug | Spark plug | 3 | $18.14 | Available to order | 3 |
| 5 | T3558989 Washer, Sealing, 14.4 x 23 x 3 | Washer, Sealing, 14.4 x 23 x 3 Part only available as multipack, T3551092 | 1 | $2.14 | Available to order | 1 |
| 6 | T1261765 Seal, Cam Cover | Seal, Cam Cover | 1 | $33.58 | Available to order | 1 |
| 7 | T1260309 Seal, Cam Cover, Screw, Twin Lip | Seal, Cam Cover, Screw, Twin Lip | 6 | $6.20 | Available to order | 6 |
| 8 | T1140071 Gasket, Metal Tensioner | Gasket, Metal Tensioner | 1 | $3.51 | Available to order | 1 |
| 9 | T3600199 O Ring, 18.8 x Dia 1.9 | O Ring, 18.8 x Dia 1.9 | 1 | $1.56 | Available to order | 1 |
| 10 | T1260298 Gasket, Crank Cover | Gasket, Crank Cover | 1 | $8.59 | Available to order | 1 |
| 11 | T3053035 Screw, Pan, M7 x 12 | Screw, Pan, M7 x 12 | 4 | $2.06 | Available to order | 4 |
| 12 | T3600187 O Ring, 10 X 2.0 | O Ring, 10 X 2.0 | 3 | $2.78 | Available to order | 3 |
| 13 | T3600188 O Ring, Fluorocarbon | O Ring, Fluorocarbon | 3 | $1.99 | Available to order | 3 |
| 14 | T2052083 Rubbing Strip, Moulded | Rubbing Strip, Moulded | 1 | $65.30 | Available to order | 1 |
