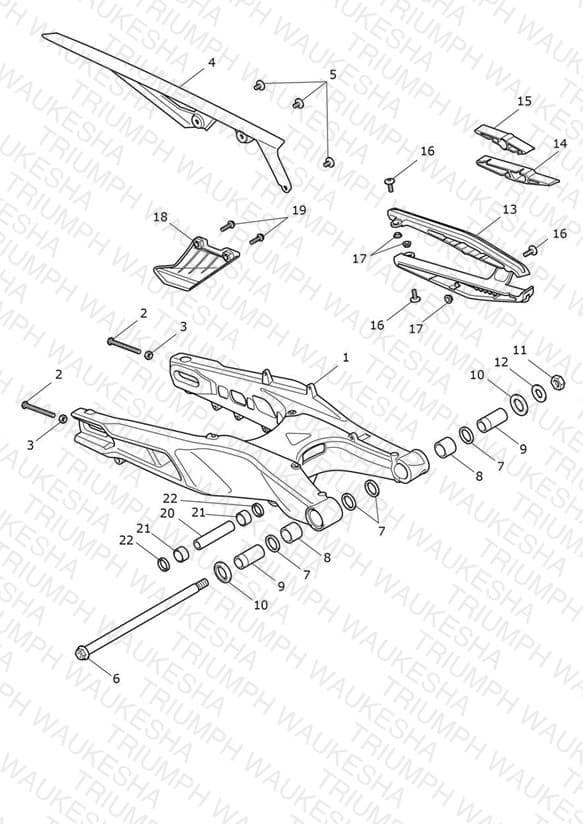

Rear Swingarm
Parts (22)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2050983 Swingarm Spares Assembly | Swingarm Spares Assembly Includes items 7, 8, 20 & 21 | 1 | $1434.71 | Available to order | 1 |
| 2 | T3330644 Screw, H/HD, M8 x 75, Slv | Screw, H/HD, M8 x 75, Slv | 2 | $1.27 | Backorder — Late September 2026 | 2 |
| 3 | T3350303 Nut, M8, Silver | Nut, M8, Silver | 2 | $0.81 | Available to order | 2 |
| 4 | T2050993 Chainguard, Upper, Moulded | Chainguard, Upper, Moulded | 1 | $68.94 | Backorder — Late September 2026 | 1 |
| 5 | T3331726 Screw, But/Hd, M6 x 12, Slv | Screw, But/Hd, M6 x 12, Slv | 3 | $4.30 | Available to order | 3 |
| 6 | T2050460 Spindle, Swingarm | Spindle, Swingarm | 1 | $100.76 | Available to order | 1 |
| 7 | T3600162 Oil Seal, 32 25 4 | Oil Seal, 32 25 4 | 4 | $8.53 | Available to order | 4 |
| 8 | T3800014 Roller bearing | Roller bearing | 2 | $14.32 | Available to order | 2 |
| 9 | T2052235 Sleeve, Ground | Sleeve, Ground | 2 | $22.98 | Available to order | 2 |
| 10 | T2054562 Bush, Moulded | Bush, Moulded | 2 | $8.01 | Available to order | 2 |
| 11 | T3350155 Locknut, Thin, M16 | Locknut, Thin, M16 | 1 | $9.41 | Available to order | 1 |
| 12 | T3551240 Washer, M16 x 34 x 3 | Washer, M16 x 34 x 3 | 1 | $2.63 | Available to order | 1 |
| 13 | T2052083 Rubbing Strip, Moulded | Rubbing Strip, Moulded Rubbing strip dampers are not required with this part | 1 | $66.53 | Available to order | 1 |
| 14 | T2050998 Damper, Rubbing Strip, Lower | Damper, Rubbing Strip, Lower > AE7913 | 1 | $41.44 | Available to order | 1 |
| 15 | T2050997 Damper, Rubbing Strip, Upper | Damper, Rubbing Strip, Upper > AE7913 | 1 | $41.44 | Available to order | 1 |
| 16 | T3330727 Screw, But/Hd, M6 x 20, Slv | Screw, But/Hd, M6 x 20, Slv | 3 | $3.39 | Available to order | 3 |
| 17 | T3010061 Flanged Sleeve, M6 x 9 x 3.25 | Flanged Sleeve, M6 x 9 x 3.25 | 3 | $7.22 | Available to order | 3 |
| 18 | T2050994 Lower Chainguard, Moulded | Lower Chainguard, Moulded | 1 | $68.94 | Available to order | 1 |
| 19 | T3202304 Bolt, RHHF, M6 x 20, Slv | Bolt, RHHF, M6 x 20, Slv | 2 | $5.30 | Available to order | 2 |
| 20 | T2057399 Sleeve, Ground Steel, 90mm | Sleeve, Ground Steel, 90mm | 1 | $40.22 | Backorder — Mid September 2026 | 1 |
| 21 | T3800199 Bearing, Needle Roller, 20 x 26 x 20 | Bearing, Needle Roller, 20 x 26 x 20 | 2 | $16.50 | Available to order | 2 |
| 22 | T3600178 Seal, 20 x 26 x 4 | Seal, 20 x 26 x 4 | 2 | $7.71 | Available to order | 2 |
