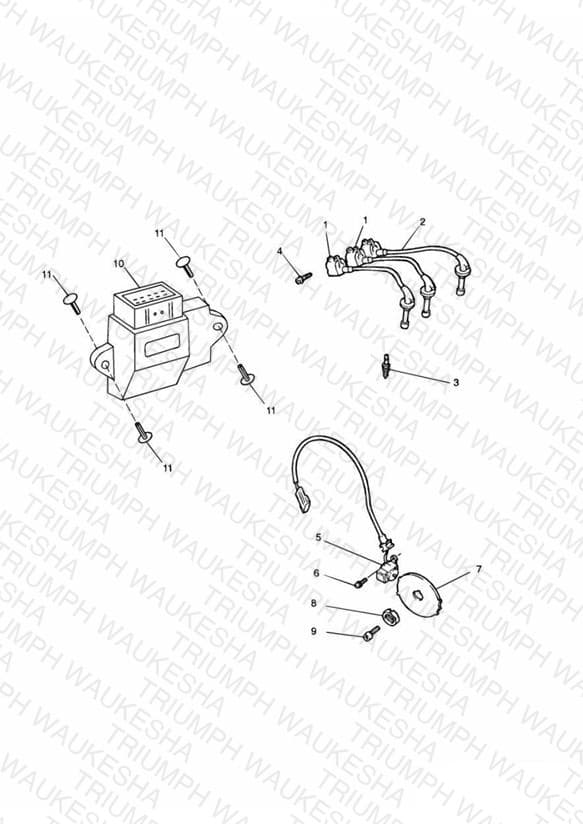

Ignition System 111990 »
Parts (11)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1290046 Ignition coil | Ignition coil 3 Cyl | 3 | $263.76 | Available to order | 3 |
| 2 | T1290015 Ignition cable | Ignition cable Set 3 Cyl | 1 | $169.19 | Available to order | 1 |
| 3 | T1290024 Spark Plug, DPR8EA-9 | Spark Plug, DPR8EA-9 Standard NGK DPR 9 EA-9 | 3 | $7.34 | Available to order | 3 |
| 4 | T3330728 Screw, Pan/Hd, Tx, M5 x 16, Enc | Screw, Pan/Hd, Tx, M5 x 16, Enc | 6 | $0.97 | Available to order | 6 |
| 5 | T1290022 Sensor | Sensor | 1 | $263.76 | Available to order | 1 |
| 6 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc | 2 | $1.40 | Available to order | 2 |
| 7 | T1290110 Rotor | Rotor ** Part No Longer Available ** | 1 | $32.16 | Obsolete | View Details |
| 8 | 1100039-T0301 Clamping piece | Clamping piece | 1 | $15.14 | Available to order | 1 |
| 9 | 3050001-T0301 Capscrew | Capscrew M8 x 20mm | 1 | $2.63 | Obsolete | View Details |
| 10 | T1290076 Igniter | Igniter | 1 | $492.91 | Available to order | 1 |
| 11 | T3300006 Rivet, Barbed, 12.7-20.6 mm | Rivet, Barbed, 12.7-20.6 mm | 4 | $1.06 | Available to order | 4 |
