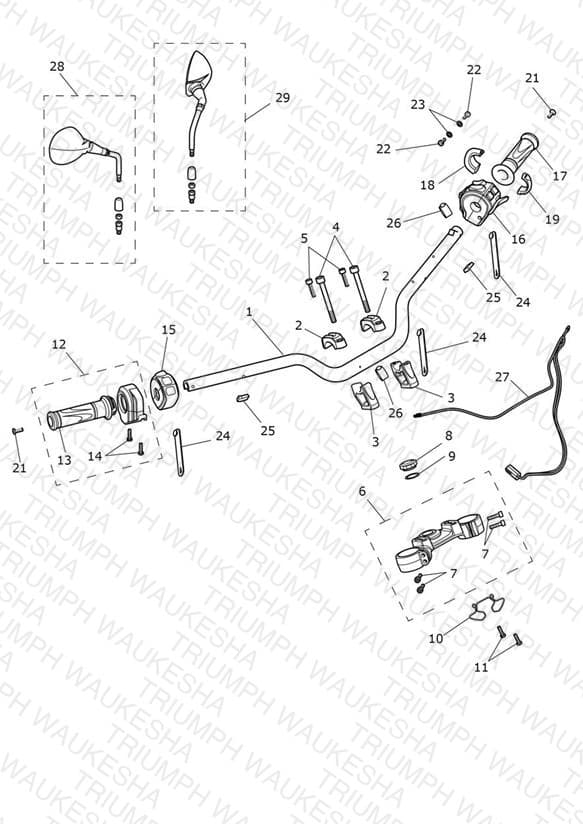

Handlebars & Switches
Parts (29)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2043193 Handlebar, Tapered, Black | Handlebar, Tapered, Black | 1 | $185.25 | Available to order | 1 |
| 2 | T2044951 Clamp, Handlebar, Upper | Clamp, Handlebar, Upper | 2 | $190.11 | Out of Stock | Notify Me |
| 3 | T2048901 Clamp, Handlebar, Lower | Clamp, Handlebar, Lower | 2 | $61.48 | Available to order | 2 |
| 4 | T3050154 Bolt, Cap/Hd, M10 x 90, Slv | Bolt, Cap/Hd, M10 x 90, Slv | 2 | $7.42 | Available to order | 2 |
| 5 | T3050323 Screw, Cap/Hd, M8 x 30, Slv | Screw, Cap/Hd, M8 x 30, Slv | 2 | $4.74 | Available to order | 2 |
| 6 | T2043048 Upper Yoke Assembly | Upper Yoke Assembly | 1 | $272.68 | Available to order | 1 |
| 7 | T3050183 Screw, Cap/Hd, M8 x 1.25 x 25, SS | Screw, Cap/Hd, M8 x 1.25 x 25, SS | 2 | $2.31 | Available to order | 2 |
| 8 | T2040442 Nut, Upper Yoke | Nut, Upper Yoke | 1 | $25.08 | Available to order | 1 |
| 9 | T3551551 Washer, 27.5 x 35 x 0.5 | Washer, 27.5 x 35 x 0.5 | 2 | $1.79 | Available to order | 2 |
| 10 | T2042949 Wire Guide, Upper Yoke | Wire Guide, Upper Yoke | 1 | $7.73 | Backorder — Late August 2026 | 1 |
| 11 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc | 2 | $1.40 | Available to order | 2 |
| 12 | T2045224 Sensor, AP, Cruise, Heated | Sensor, AP, Cruise, Heated | 1 | $224.15 | Available to order | 1 |
| 13 | T2042078 Heated Grip, RH | Heated Grip, RH | 1 | $176.68 | Available to order | 1 |
| 14 | T3050314 Bolt, M5 x 20 | Bolt, M5 x 20 | 2 | $7.02 | Available to order | 2 |
| 15 | T2044829 Switchcube, RH | Switchcube, RH | 1 | $276.34 | Available to order | 1 |
| 16 | T2049716 Switchcube, LH | Switchcube, LH All Except CA, CN, JP or US | 1 | $366.38 | Out of Stock | Notify Me |
| 16 | T2044782 Switchcube, LH | Switchcube, LH CA, CN, JP or US Only | 1 | $366.38 | Available to order | 1 |
| 17 | T2046369 Heated Grip, LH | Heated Grip, LH | 1 | $176.72 | Available to order | 1 |
| 18 | T2043692 Heated Grip, Housing, Switch | Heated Grip, Housing, Switch | 1 | $7.38 | Available to order | 1 |
| 19 | T2043694 Heated Grip, Housing, Rear | Heated Grip, Housing, Rear | 1 | $7.30 | Available to order | 1 |
| 21 | T3330264 Screw, S/Tap, TX, 3 x 1.35 x 12, Blk | Screw, S/Tap, TX, 3 x 1.35 x 12, Blk | 2 | $5.02 | Available to order | 2 |
| 22 | T3330247 Screw, S/Tap, Pan/Hd, M4 x 10, HD | Screw, S/Tap, Pan/Hd, M4 x 10, HD | 2 | $7.14 | Available to order | 2 |
| 23 | T3550500 Washer, 4.3 x 9.0 x 0.8 | Washer, 4.3 x 9.0 x 0.8 | 2 | $1.72 | Available to order | 2 |
| 24 | T3700212 Band, Rubber | Band, Rubber | 2 | $3.29 | Available to order | 2 |
| 25 | T2049701 Switchcube Mounting Block | Switchcube Mounting Block | 2 | $5.30 | Available to order | 2 |
| 26 | T3700259 Rubber Band, 43mm | Rubber Band, 43mm | 2 | $3.90 | Available to order | 2 |
| 27 | T2502215 Subharness, Heated Grips | Subharness, Heated Grips | 1 | $37.72 | Available to order | 1 |
| 28 | T2060185 Mirror Assy, RH | Mirror Assy, RH | 1 | $134.99 | Available to order | 1 |
| 29 | T2060175 Mirror Assy, LH | Mirror Assy, LH | 1 | $134.99 | Available to order | 1 |
