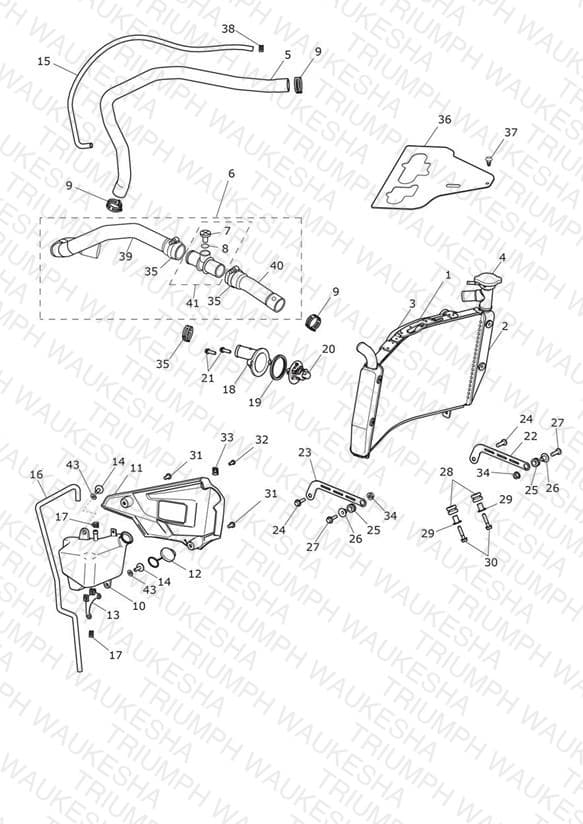

Cooling System
Parts (47)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2100954 Cowl, Fan | Cowl, Fan | 1 | $72.26 | Out of Stock | Notify Me |
| 2 | T2100951 Radiator, Curved | Radiator, Curved | 1 | $862.09 | Available to order | 1 |
| 3 | T2100952 Fan, Cooling | Fan, Cooling | 1 | $396.11 | Available to order | 1 |
| 4 | T2100081 Cap Assy, Radiator | Cap Assy, Radiator | 1 | $13.51 | Available to order | 1 |
| 5 | T2100544 Hose, Radiator to Pump | Hose, Radiator to Pump | 1 | $49.41 | Available to order | 1 |
| 6 | T2100910 Hose, Thermostat to Radiator | Hose, Thermostat to Radiator > Eng No 579787 | 1 | $78.87 | Available to order | 1 |
| 7 | T3330677 Bleed Screw, M6 x 16 | Bleed Screw, M6 x 16 > Eng No 579787 - PART NO LONGER AVAILABLE | 1 | $6.67 | Obsolete | View Details |
| 8 | T3550233 Washer, Rubber, M6 x 12 | Washer, Rubber, M6 x 12 > Eng No 579787 | 1 | $1.34 | Obsolete | View Details |
| 8 | T2100909 O Ring, 11.20 x 1.78 Dia | O Ring, 11.20 x 1.78 Dia Eng No 579788 > | 1 | $4.12 | Available to order | 1 |
| 9 | T3707580 Hose Clip, Dia 20-32 | Hose Clip, Dia 20-32 > 630346 | 3 | $9.57 | Available to order | 3 |
| 9 | T3706214 Clamp, Constant Tension, Dia 29 | Clamp, Constant Tension, Dia 29 630347 > | 3 | $13.99 | Available to order | 3 |
| 10 | T2108355 Expansion Tank | Expansion Tank | 1 | $110.28 | Available to order | 1 |
| 11 | T2100461 Cover, Expansion Tank | Cover, Expansion Tank | 1 | $57.03 | Available to order | 1 |
| 12 | T2101015 Cap, Expansion Tank | Cap, Expansion Tank | 1 | $2.00 | Available to order | 1 |
| 13 | T2100462 Bracket, Expansion Tank | Bracket, Expansion Tank | 1 | $12.16 | Out of Stock | Notify Me |
| 14 | T3330334 Screw, Tx, Pan/Hd, M6 x 16, Slv | Screw, Tx, Pan/Hd, M6 x 16, Slv | 2 | $2.63 | Available to order | 2 |
| 15 | T2100636 Pipe, Radiator to Expansion Tank | Pipe, Radiator to Expansion Tank | 1 | $50.37 | Available to order | 1 |
| 16 | T2100637 Pipe, Expansion Tank Overflow | Pipe, Expansion Tank Overflow | 1 | $23.85 | Available to order | 1 |
| 17 | T3700440 Clip, Hose, 11-12.5mm | Clip, Hose, 11-12.5mm | 3 | $5.42 | Available to order | 3 |
| 18 | T2100479 Cover, Water Outlet | Cover, Water Outlet | 2 | $50.37 | Available to order | 2 |
| 19 | T2100201 Seal, Thermostat | Seal, Thermostat | 1 | $7.14 | Available to order | 1 |
| 20 | T2100676 Thermostat | Thermostat | 1 | $68.42 | Backorder — Mid August 2026 | 1 |
| 21 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv | 2 | $4.55 | Available to order | 2 |
| 22 | T2100901 Bracket, LH, Radiator | Bracket, LH, Radiator | 1 | $36.71 | Available to order | 1 |
| 23 | T2100902 Bracket, RH, Radiator | Bracket, RH, Radiator | 1 | $36.42 | Available to order | 1 |
| 24 | T3205254 Bolt, HHF, Lghtd, M8 x 20, Slv | Bolt, HHF, Lghtd, M8 x 20, Slv | 2 | $1.62 | Available to order | 2 |
| 25 | T3020030 Grommet, Rubber | Grommet, Rubber | 2 | $8.75 | Available to order | 2 |
| 26 | T3010052 Flanged Sleeve, M6 x 12 x 10.75 | Flanged Sleeve, M6 x 12 x 10.75 | 2 | $5.02 | Available to order | 2 |
| 27 | T3205067 Bolt, HHF, Lghtd, M6 x 25, Slv | Bolt, HHF, Lghtd, M6 x 25, Slv | 2 | $2.46 | Available to order | 2 |
| 28 | T3021200 Grommet, Dia 14x4, Panel | Grommet, Dia 14x4, Panel | 2 | $3.17 | Available to order | 2 |
| 29 | T3010701 Flanged Sleeve, 6.4 x 10 x 14.5 | Flanged Sleeve, 6.4 x 10 x 14.5 | 1 | $5.30 | Available to order | 1 |
| 30 | T3200148 Bolt, RHHF, M6 x 30, Slv | Bolt, RHHF, M6 x 30, Slv | 2 | $4.45 | Available to order | 2 |
| 31 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc | 2 | $1.40 | Available to order | 2 |
| 32 | T3330649 Screw, Pan/Hd, Tx, M5 x 12, Slv | Screw, Pan/Hd, Tx, M5 x 12, Slv | 1 | $5.67 | Available to order | 1 |
| 33 | T3350161 Nut, Captive, M5 | Nut, Captive, M5 | 1 | $4.55 | Available to order | 1 |
| 34 | T3350305 Locknut, Flgd, M6 x 1.0, Slv | Locknut, Flgd, M6 x 1.0, Slv | 2 | $1.91 | Available to order | 2 |
| 35 | T3707585 Clip, Hose, Dia 27-35 | Clip, Hose, Dia 27-35 > Eng No 579787 | 1 | $4.64 | Available to order | 1 |
| 35 | T3706216 Clamp, Constant Tension, Dia 32 | Clamp, Constant Tension, Dia 32 630347 > | 3 | $13.99 | Available to order | 3 |
| 36 | T2100980 Sheet, Heat Shield | Sheet, Heat Shield | 1 | $47.50 | Backorder — Late August 2026 | 1 |
| 37 | T3450299 Firtree, M6 | Firtree, M6 | 1 | $3.33 | Available to order | 1 |
| 38 | T3700077 Clip, 10.5 Rer Oetiker | Clip, 10.5 Rer Oetiker | 1 | $4.01 | Available to order | 1 |
| 39 | T2100906 Hose, T'Stat to Bleed Spigot | Hose, T'Stat to Bleed Spigot Eng No 579788 > | 1 | $78.87 | Available to order | 1 |
| 40 | T2100907 Hose, Bleed Spigot to Rad | Hose, Bleed Spigot to Rad Eng No 579788 > | 1 | $78.87 | Backorder — Mid August 2026 | 1 |
| 41 | T2100905 Spigot, Coolant Bleed | Spigot, Coolant Bleed Eng No 579788 > | 1 | $18.41 | Out of Stock | Notify Me |
| 42 | T4007777 Coolant, OAT, Premix, D2053,12 x 1L | Coolant, OAT, Premix, D2053,12 x 1L Not Illustrated | — | $187.12 | Available to order | 1 |
| 43 | T3555012 Washer, 6.4 x 16 x 2 | Washer, 6.4 x 16 x 2 | 2 | $4.12 | Available to order | 2 |
| 44 | T2100084 Bleed Screw, Nylon | Bleed Screw, Nylon Not Illustrated - Also includes washer | 1 | $7.42 | Available to order | 1 |
