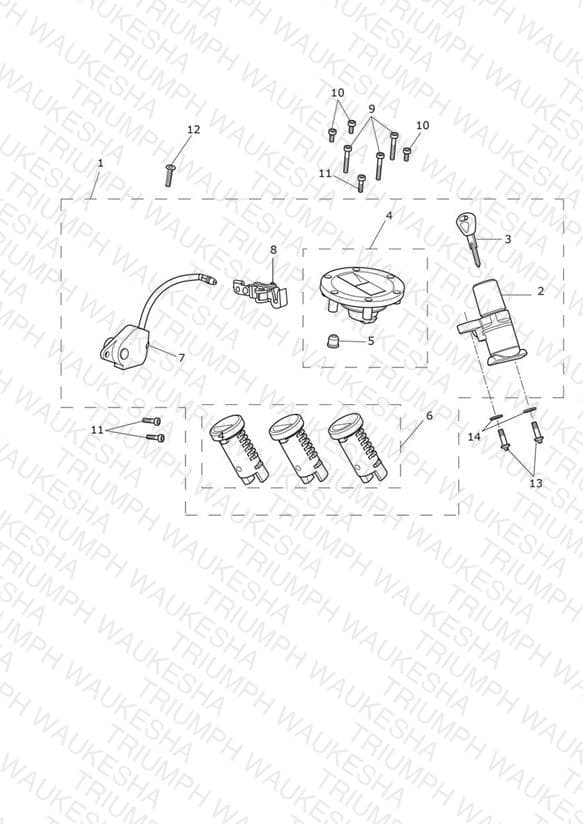

Ignition Switch & Lock Set
Parts (15)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2507788 Lockset Assembly | Lockset Assembly Includes 2 keys | 1 | $589.72 | Available to order | 1 |
| 2 | T2507581 Ignition Lock, Combined | Ignition Lock, Combined Includes 2 keys | 1 | $271.86 | Available to order | 1 |
| 3 | T2504557 Key, Cut, Immobiliser | Key, Cut, Immobiliser Supplied as pair | 2 | $79.02 | Out of Stock | Notify Me |
| 3 | T2504558 Key, Blank, Immobiliser | Key, Blank, Immobiliser Supplied as single | 2 | $72.26 | Available to order | 2 |
| 4 | T2500612 Fuel Filler Cap, Non Vented | Fuel Filler Cap, Non Vented Includes 2 keys | 1 | $212.94 | Available to order | 1 |
| 5 | T2500622 Seal, Filler Cap, Breather | Seal, Filler Cap, Breather | 1 | $6.14 | Available to order | 1 |
| 6 | T2509880 Lock Barrel Kit | Lock Barrel Kit Includes Keys | 1 | $77.87 | Available to order | 1 |
| 7 | T2500618 Seat Lock Assembly | Seat Lock Assembly Includes 2 keys | 1 | $148.31 | Available to order | 1 |
| 8 | T2501099 Seat Latch | Seat Latch | 1 | $22.72 | Backorder — Late August 2026 | 1 |
| 9 | T3050343 Screw, Cap/Hd, M5 x 30, Slv | Screw, Cap/Hd, M5 x 30, Slv | 3 | $4.45 | Available to order | 3 |
| 10 | T3050341 Screw, Cap/Hd, M5 x 10, Slv | Screw, Cap/Hd, M5 x 10, Slv | 3 | $3.80 | Backorder — Early September 2026 | 3 |
| 11 | T3050342 Screw, Cap/Hd, M5 x 16, Slv | Screw, Cap/Hd, M5 x 16, Slv | 3 | $2.85 | Available to order | 3 |
| 12 | T3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv | Screw, Pan/Hd, Tx, M6 x 16, Slv | 1 | $0.97 | Available to order | 1 |
| 13 | T3330327 Bolt, Shear, M6 x 22, Enc | Bolt, Shear, M6 x 22, Enc | 2 | $5.24 | Available to order | 2 |
| 14 | T3550436 Washer, M6, Elongated | Washer, M6, Elongated | 2 | $4.45 | Available to order | 2 |
