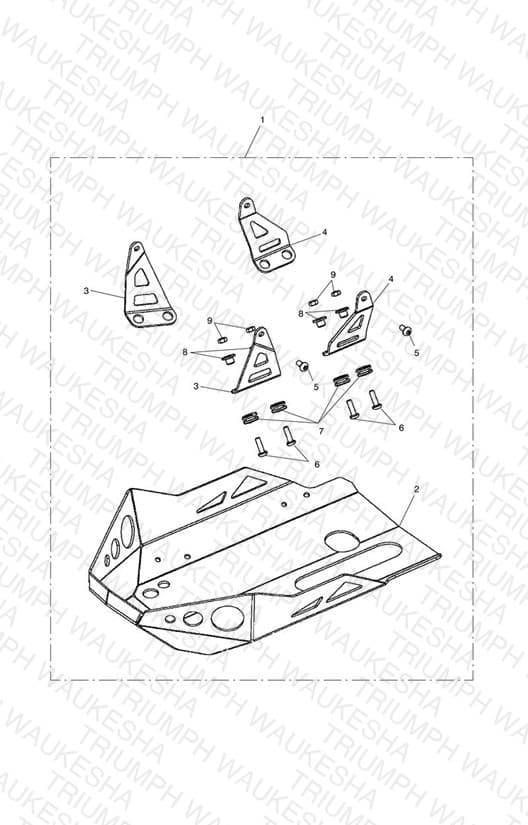

Sump Guard Kit
Parts (9)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A9708406 Sump Guard Kit | Sump Guard Kit | 1 | $210.00 | Obsolete | View Details |
| 2 | T2308675 Sump Guard | Sump Guard | 1 | $413.67 | Out of Stock | Notify Me |
| 3 | T2308377 Bracket, Front, Guard | Bracket, Front, Guard | 2 | $68.42 | Available to order | 2 |
| 4 | T2308378 Bracket, Rear, Guard | Bracket, Rear, Guard | 2 | $68.42 | Available to order | 2 |
| 5 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc | 4 | $1.40 | Available to order | 4 |
| 6 | T3331191 Screw, Pan/Hd, Tx, M6 x 20, Enc | Screw, Pan/Hd, Tx, M6 x 20, Enc | 4 | $2.10 | Available to order | 4 |
| 7 | T3020153 Grommet, 13 x 3 x 10 | Grommet, 13 x 3 x 10 | 4 | $1.91 | Available to order | 4 |
| 8 | T3010047 Flanged Sleeve, M6 x 10 x 8.5 | Flanged Sleeve, M6 x 10 x 8.5 | 4 | $1.42 | Unavailable | View Details |
| 9 | T3350300 Nut, M6 x 1.0, Slv | Nut, M6 x 1.0, Slv | 4 | $0.94 | Available to order | 4 |
