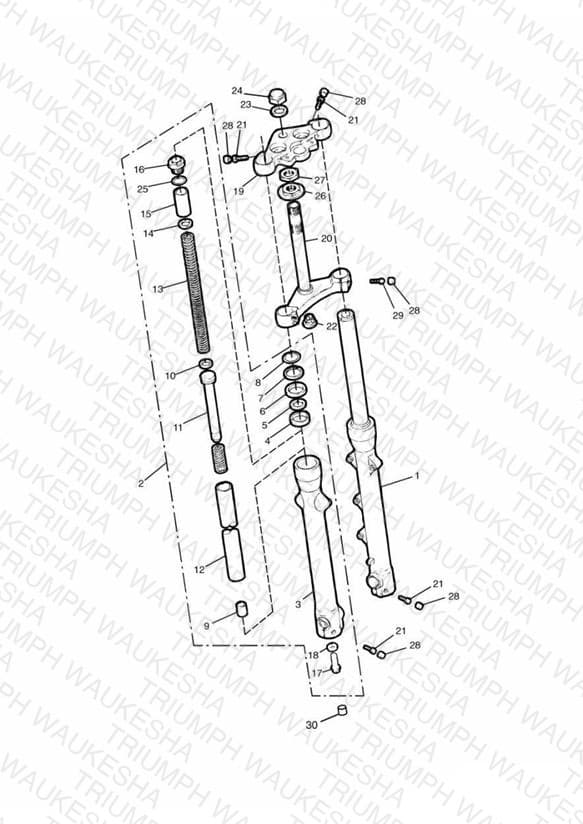

Front Forks and Yokes
Parts (31)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2042841 Stanchion assembly | Stanchion assembly LH | 1 | $907.35 | Obsolete | View Details |
| 2 | T2042842 Stanchion assembly | Stanchion assembly RH | 1 | $907.35 | Obsolete | View Details |
| 3 | T2042922 Tube outer | Tube outer LH | 1 | $499.32 | Obsolete | View Details |
| 3 | T2042921 Tube outer | Tube outer RH | 1 | $499.32 | Obsolete | View Details |
| 4 | T2045862 Guide, Bush | Guide, Bush | 2 | $12.55 | Available to order | 2 |
| 5 | T2046246 Seal, Spacer | Seal, Spacer | 2 | $5.98 | Out of Stock | Notify Me |
| 6 | T2042894 Oil seal | Oil seal | 2 | $21.36 | Out of Stock | Notify Me |
| 7 | T2046248 Stop Ring | Stop Ring | 2 | $6.83 | Available to order | 2 |
| 8 | T2042897 Dust seal | Dust seal | 2 | $20.03 | Obsolete | View Details |
| 9 | T2042906 Oil lock | Oil lock | 2 | $10.28 | Available to order | 2 |
| 10 | T2042888 Fork Leg Piston Ring | Fork Leg Piston Ring | 2 | $10.18 | Available to order | 2 |
| 11 | T2042923 Cylinder assembly | Cylinder assembly | 2 | $373.77 | Obsolete | View Details |
| 12 | T2042920 Tube assembly | Tube assembly Inner | 2 | $475.29 | Available to order | 2 |
| 13 | T2042899 Spring | Spring PART NO LONGER AVAILABLE | 2 | $87.02 | Obsolete | View Details |
| 14 | T2042902 Guide spring | Guide spring | 2 | $12.70 | Available to order | 2 |
| 15 | T2042903 Spacer | Spacer | 2 | $9.69 | Out of Stock | Notify Me |
| 16 | T2042904 Cap | Cap | 2 | $81.75 | Available to order | 2 |
| 17 | T2042908 Capscrew | Capscrew | 2 | $10.90 | Backorder — Early September 2026 | 2 |
| 18 | T2042907 Sealing washer | Sealing washer | 2 | $1.13 | Available to order | 2 |
| 19 | T2042855 Yoke | Yoke Upper | 1 | $219.22 | Obsolete | View Details |
| 20 | T2042850 Yoke | Yoke PART NO LONGER AVAILABLE - Lower | 1 | $510.41 | Obsolete | View Details |
| 21 | T3050175 Kit, 4 x Screw M8 x 1.25 x 30 Slv | Kit, 4 x Screw M8 x 1.25 x 30 Slv | 6 | $8.46 | Available to order | 6 |
| 22 | T3450250 Moss Plug | Moss Plug | 1 | $1.40 | Available to order | 1 |
| 23 | T2040188 Washer | Washer | 1 | $5.92 | Obsolete | View Details |
| 24 | T2040060 Nut | Nut | 1 | $24.83 | Available to order | 1 |
| 25 | T2042905 O Ring, Fork Seal | O Ring, Fork Seal | 2 | $3.39 | Available to order | 2 |
| 26 | T2040259 Cover, Headstock Assy | Cover, Headstock Assy Lower | 1 | $24.33 | Out of Stock | Notify Me |
| 27 | T2140210 Adjuster Nut, Upper | Adjuster Nut, Upper | 1 | $3.39 | Available to order | 1 |
| 28 | T3450200 Plug, Caphead, Chrome | Plug, Caphead, Chrome | 14 | $4.19 | Backorder — Mid August 2026 | 14 |
| 29 | T3050073 Capscrew | Capscrew M8 x 40mm | 4 | $5.88 | Out of Stock | Notify Me |
| 30 | T3450062 Plug, Plastic, Black | Plug, Plastic, Black | 2 | $1.40 | Available to order | 2 |
