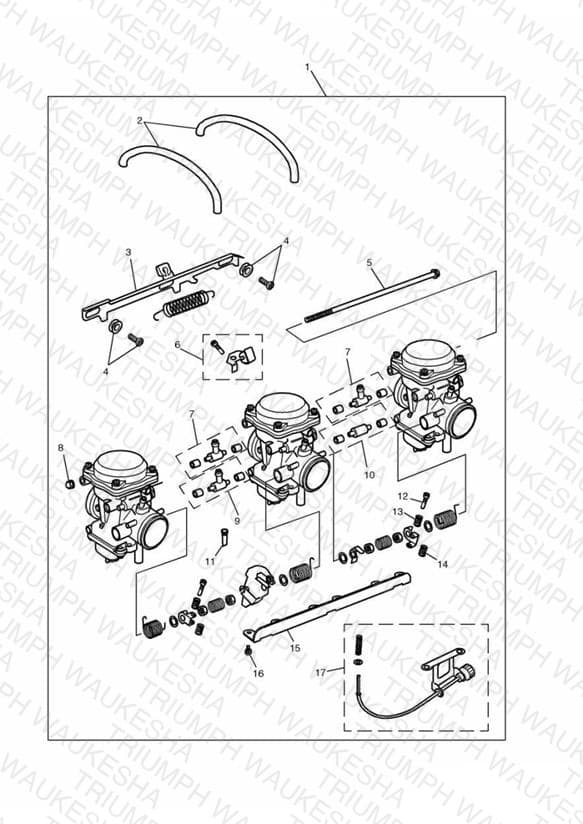

Carburettors
Parts (17)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1240670 Carburettor assembly | Carburettor assembly | 1 | $2187.55 | Obsolete | View Details |
| 2 | T1241008 Vent pipe | Vent pipe US CAL Cut to length | 2 | $11.12 | Available to order | 2 |
| 3 | T1241004 Choke lever | Choke lever | 1 | $15.43 | Obsolete | View Details |
| 4 | T1241005 Screw/washer | Screw/washer | 2 | $4.18 | Obsolete | View Details |
| 5 | T1241002 Bolt | Bolt | 1 | $33.51 | Obsolete | View Details |
| 6 | T1241006 Bracket | Bracket | 1 | $13.06 | Obsolete | View Details |
| 7 | T1241007 T piece | T piece | 2 | $20.28 | Available to order | 2 |
| 8 | T1241003 Nut | Nut | 1 | $2.96 | Obsolete | View Details |
| 9 | T1241013 T piece | T piece | 1 | $13.61 | Available to order | 1 |
| 10 | T1241014 Connector | Connector | 1 | $15.88 | Available to order | 1 |
| 11 | T1241016 Filter screen | Filter screen | 1 | $11.12 | Available to order | 1 |
| 12 | T1241009 Screw, Carb Sync | Screw, Carb Sync | 2 | $1.62 | Available to order | 2 |
| 13 | T1241010 Spring | Spring | 2 | $1.62 | Available to order | 2 |
| 14 | T1241011 Spring | Spring | 2 | $2.95 | Available to order | 2 |
| 15 | T1241000 Bracket | Bracket | 1 | $26.69 | Obsolete | View Details |
| 16 | T1241001 Screw | Screw | 6 | $1.18 | Obsolete | View Details |
| 17 | T1241015 Adjuster kit | Adjuster kit | 1 | $66.52 | Available to order | 1 |
