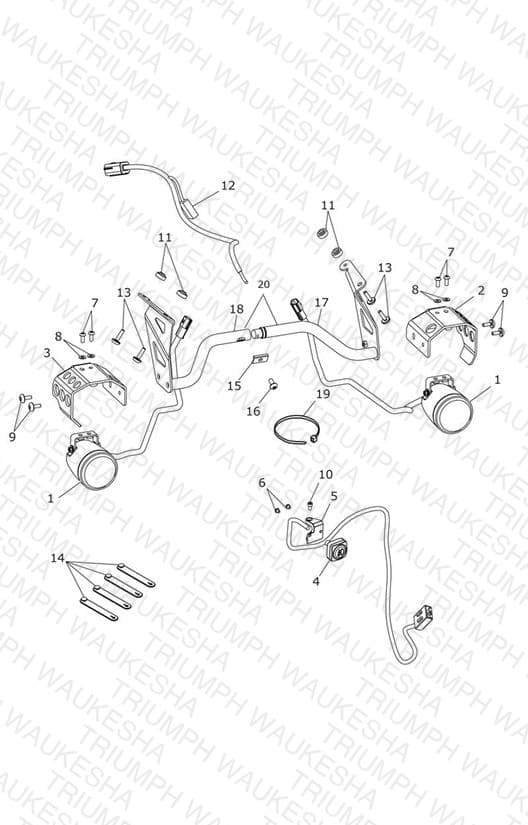

Fog Lamps
Parts (20)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2701520 Fog Lamp, 55W | Fog Lamp, 55W | 2 | $139.26 | Available to order | 2 |
| 2 | T2701580 Shroud, Fog Lamp, LH | Shroud, Fog Lamp, LH | 1 | $55.68 | Available to order | 1 |
| 3 | T2701585 Shroud, Fog Lamp, RH | Shroud, Fog Lamp, RH | 1 | $55.68 | Available to order | 1 |
| 4 | T2701586 Switch, Fog Lights | Switch, Fog Lights | 1 | $28.92 | Available to order | 1 |
| 5 | T2701587 Bracket, Switch Mtg | Bracket, Switch Mtg | 1 | $47.83 | Available to order | 1 |
| 6 | T3330392 Screw, But/Hd, M4 x 5, S/S | Screw, But/Hd, M4 x 5, S/S | 2 | $4.74 | Available to order | 2 |
| 7 | T3332655 Screw, But/HD, M5 x 12. Slv | Screw, But/HD, M5 x 12. Slv | 4 | $0.95 | Unavailable | View Details |
| 8 | T3550249 Washer, 11 x 5.1 x 0.8 | Washer, 11 x 5.1 x 0.8 | 4 | $2.40 | Available to order | 4 |
| 9 | T3330943 Screw, But/Hd, M5 x 14, Slv | Screw, But/Hd, M5 x 14, Slv | 4 | $5.24 | Available to order | 4 |
| 10 | T3050308 Screw, Cap/Hd, M4 x 8 | Screw, Cap/Hd, M4 x 8 | 1 | $5.47 | Available to order | 1 |
| 11 | T2701535 Spacer, Subframe, Fog Lights | Spacer, Subframe, Fog Lights | 4 | $10.42 | Available to order | 4 |
| 12 | T2503576 Subharness, Fog Lamps | Subharness, Fog Lamps | 1 | $63.32 | Backorder — Early October 2026 | 1 |
| 13 | T3338989 Screw, But/Hd, M5 x 20, S/S | Screw, But/Hd, M5 x 20, S/S | 4 | $7.20 | Available to order | 4 |
| 14 | T3700212 Band, Rubber | Band, Rubber | 4 | $3.50 | Available to order | 4 |
| 15 | T2701548 Washer, Saddle, Tube OD 17.0 | Washer, Saddle, Tube OD 17.0 | 1 | $16.84 | Available to order | 1 |
| 16 | T3331043 Screw, Pan/Hd, Tx, M6 x 12, Slv | Screw, Pan/Hd, Tx, M6 x 12, Slv | 1 | $1.04 | Available to order | 1 |
| 17 | T2701552 Subframe, Fog Lamp, LH | Subframe, Fog Lamp, LH | 1 | $83.94 | Out of Stock | Notify Me |
| 18 | T2701553 Subframe, Fog Lamp RH | Subframe, Fog Lamp RH | 1 | $118.98 | Out of Stock | Notify Me |
| 19 | T3700016 Cable Tie, 370 Long | Cable Tie, 370 Long | 1 | $1.01 | Available to order | 1 |
| 20 | T2701551 Subframe, Fog Light Assy | Subframe, Fog Light Assy Contains LH & RH Subframe | 1 | $150.53 | Available to order | 1 |
