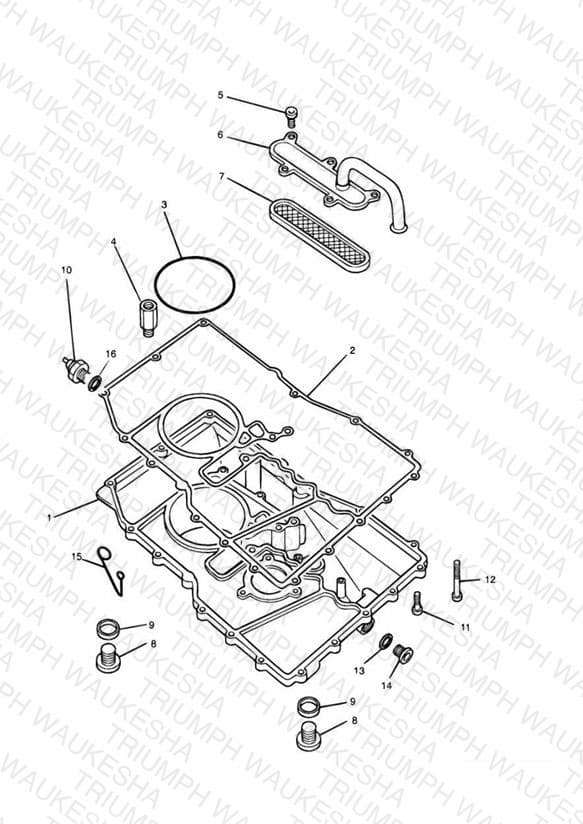

Sump
Parts (20)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1230186 Sump kit | Sump kit » Eng No 77667 | 1 | $480.47 | Backorder — Mid October 2026 | 1 |
| 1 | T1230117 Sump | Sump Eng No 77668 » | 1 | $462.35 | Available to order | 1 |
| 2 | T1230056 Sump Gasket, 3 Cyl | Sump Gasket, 3 Cyl | 1 | $18.54 | Available to order | 1 |
| 3 | 3600025-T0301 O ring | O ring | 1 | $1.91 | Available to order | 1 |
| 4 | T1210060 Relief valve | Relief valve | 1 | $29.75 | Out of Stock | Notify Me |
| 5 | T3331040 Screw, TPT, Pan/Hd, M6 x 12, Slv | Screw, TPT, Pan/Hd, M6 x 12, Slv | 5 | $2.53 | Available to order | 5 |
| 6 | T1230066 Cover assembly | Cover assembly | 1 | $4.74 | Out of Stock | Notify Me |
| 7 | 1230060-T0301 Strainer oil | Strainer oil | 1 | $38.57 | Obsolete | View Details |
| 8 | T3458989 Sump Plug, M14 x 1.5, Blk | Sump Plug, M14 x 1.5, Blk | 3 | $5.84 | Available to order | 3 |
| 9 | T3551092 Sealing Washer Multipack (25) | Sealing Washer Multipack (25) Part only available as Multipack | 1 | $27.55 | Available to order | 1 |
| 10 | T1230074 Switch oil pressure | Switch oil pressure | 1 | $32.21 | Available to order | 1 |
| 11 | T3331041 Screw, Pan/Hd, Tx, M6 x 25, Enc | Screw, Pan/Hd, Tx, M6 x 25, Enc » Eng No 127359 | 15 | $1.13 | Available to order | 15 |
| 11 | T3200190 Bolt, RHHF, M6 x 25, Slv | Bolt, RHHF, M6 x 25, Slv Eng No 127360 » | 15 | $2.79 | Available to order | 15 |
| 12 | T3331299 Screw, Pan/HD, Tx, M6 x 40, Slv | Screw, Pan/HD, Tx, M6 x 40, Slv » Eng No 127359 | 2 | $3.93 | Available to order | 2 |
| 12 | T3202301 Bolt, RHHF, M6 x 40, Slv | Bolt, RHHF, M6 x 40, Slv Eng No 127360 » | 2 | $1.36 | Available to order | 2 |
| 13 | 3550048-T0301 Sealing washer | Sealing washer » Eng No 77667 | 1 | $1.21 | Available to order | 1 |
| 14 | 3450021-T0301 Plug | Plug » Eng No 77667 * PART NO LONGER AVAILABLE * | 2 | $4.34 | Obsolete | View Details |
| 14 | T3450005 Plug, NPSI 3/8 Dryseal | Plug, NPSI 3/8 Dryseal Eng No 77668 » | 2 | $7.08 | Available to order | 2 |
| 15 | T2079314 Guide | Guide | 1 | $2.04 | Out of Stock | Notify Me |
| 16 | T3550546 Washer, Cu, OD 16 x ID 10.2/ | Washer, Cu, OD 16 x ID 10.2/ | 1 | $0.95 | Available to order | 1 |
